SPX FLOW TG GP58-80 - Jacket Options and Electrical Heating; Jacket on Pump Cover; Jacket Around the Shaft Seal

65
0210
0230
0240
0250
0200
0220
0270
0280
0260
0270
0280
1200
0260
1580
1590
A.0500.451 – IM-TGGP/07.02 EN (03/2016)

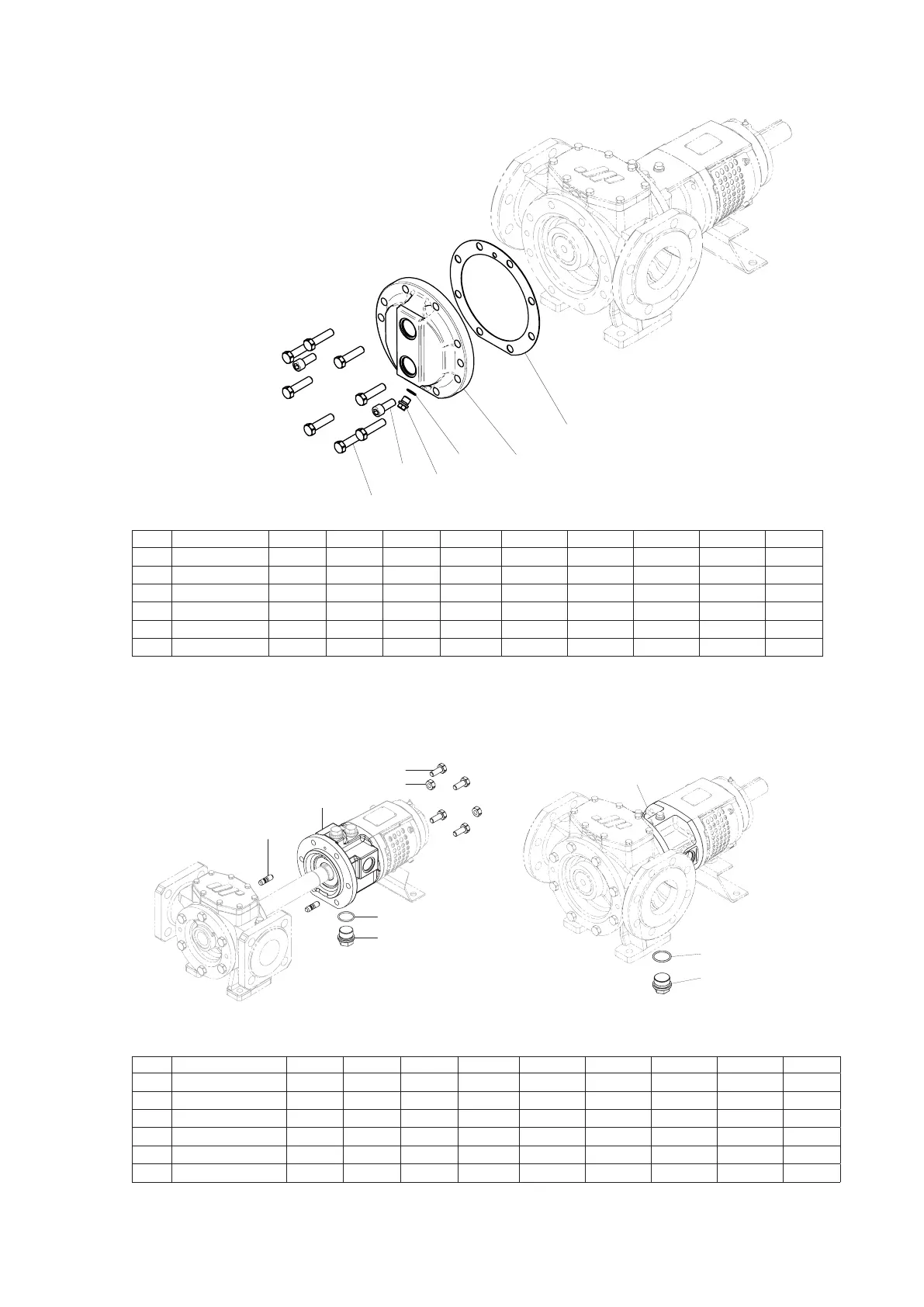

5.2.3 Jacket options and electrical heating
5.2.3.1 Jacket on pump cover
5.2.3.2 Jacket around the shaft seal
Pos. Description GP15-50 GP23-65 GP58-80 GP86-100 GP120-100 GP185-125 GP360-150 preventive overhaul
0200 jacket cover 1 1 1 1 1 1 1
0210 tap bolt 6 6 8 8 8 8 12
0220 gasket 1 1 1 1 1 1 1 x x
0230 cap head screw 2 2 2 2 2 4 6
0240 plug – – 1 1 1 1 1
0250 sealing ring – – 1 1 1 1 1 x x
Pos. Description GP15-50 GP23-65 GP58-80 GP86-100 GP120-100 GP185-125 GP360-150 preventive overhaul
0260 Intermediate casing 1 1 1 1 1 1 1
0270 plug 1 1 1 1 1 1 1
0280 sealing ring 1 1 1 1 1 1 1 x x
1200 stud bolt 2 2 – – – – –
1580 nut 2 2 – – – – –
1590 screw 4 4 – – – – –
TG GP15-50 and TG GP23-65 TG GP58-80 to TG GP360-150
