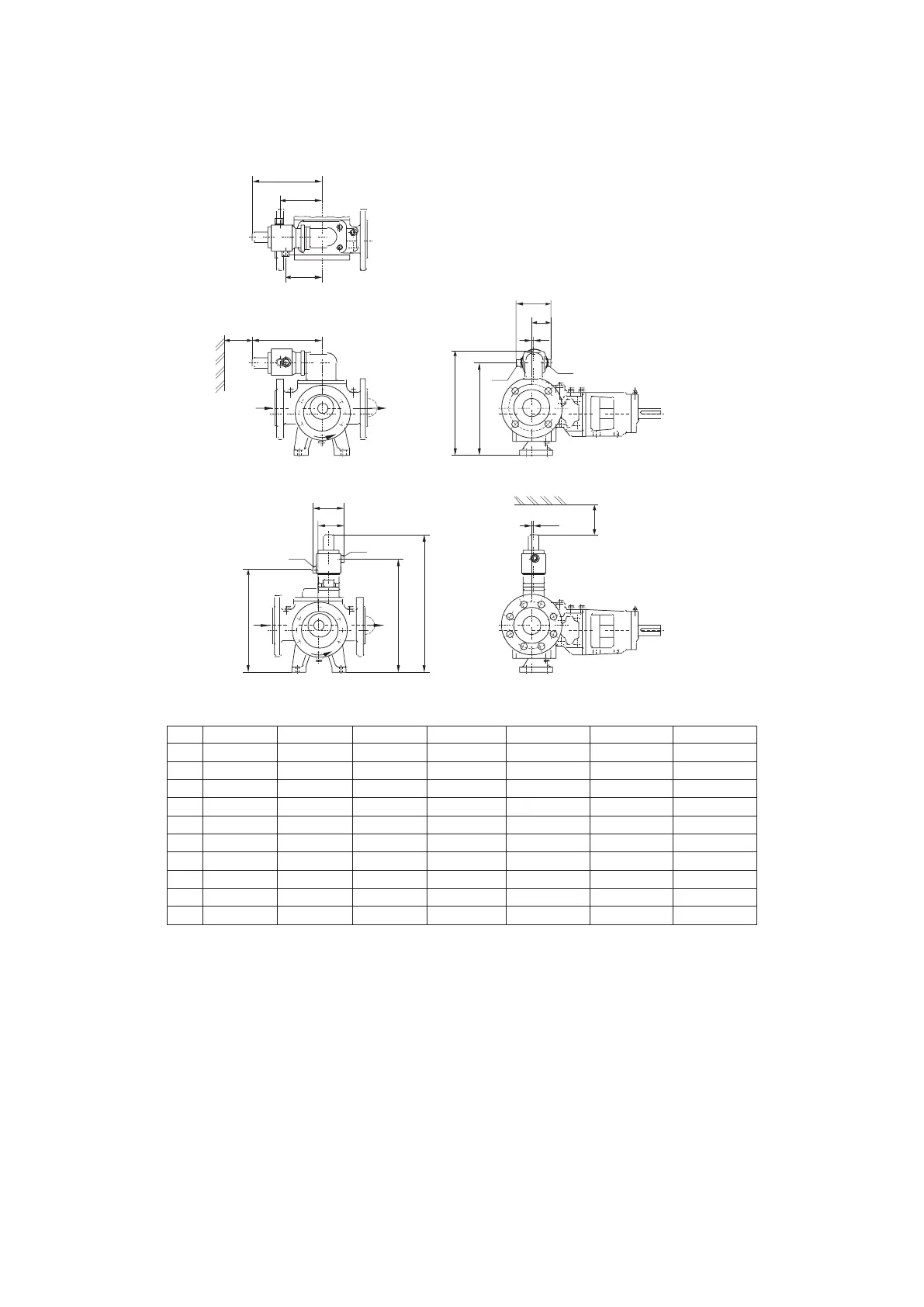

SPX FLOW TG GP58-80 - Heated Safety Relief Valve

tg
dj
di
mc
tg
dn
dm
dv
dj
Bo
Bo
di
dn
dm
do
dv
dk
Bo
Bo
do
mc
TG GP15-50
TG GP23-65
TG GP58-80
TG GP86-100
TG GP120-100
TG GP185-125
TG GP360-150
TG GP15-50 TG GP23-65 TG GP58-80 TG GP86-100 TG GP120-100 TG GP185-125 TG GP360-150
Bo G 1/2 G 1/2 G 1/2 G 1/2 G 1/2 G 1/2 G 1/2
di 101 101 418 444 444 509 618
dj 119 119 458 484 484 549 738
dk 253 263 – – – – –
dm 62 59.5 98.5 103.5 103.5 103.5 135
dn 115 115 127 127 127 127 170
do 6.5 4 6 8 8 24 –
dv 290 300 550 576 576 641 849
mc 50 50 70 70 70 70 80
tg 200 200 – – – – –
76
A.0500.451 – IM-TGGP/07.02 EN (03/2016)
6.4.3 Heated safety relief valve
