SPX FLOW Universal 3 Series - Tru-Fit Pump Dimensions; Tru-Fit Universal 3 PD Pump Dimensional Data

Pump Dimensions Waukesha Cherry-Burrell
®
Brand Universal 3 Pump
Page 100 95-03103 11/2018
Tru-Fit
™

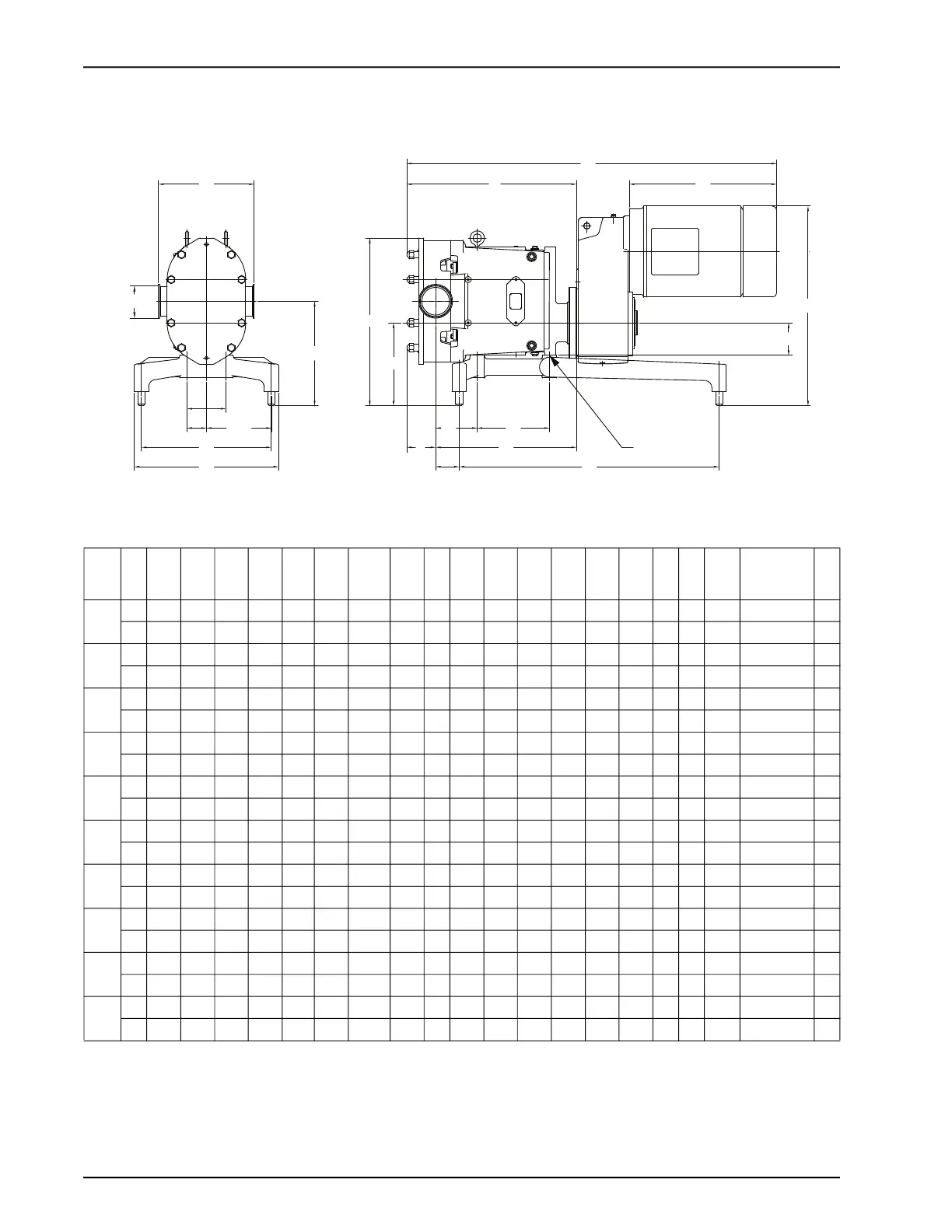

Universal 3 PD Pump Dimensions
Table of Dimensions
1
Dimensions affected by motor frame size
2
Dimensions affected by connection type
U3
Model
A B C
D
2
E F G H J K L
M
1
N
1
P
1
S
T T1
Port
Size
U V
006
inch 12.00 10.00 9.15 6.97 7.87 13.25 2.45 18.00 1.89 10.52 12.90 28.02 15.56 10.92 5.44
2.12 2.95 1" 5/16-16 x 62 2.00
mm 305 254 232 177 200 337 62 457 48 267 328 712 395 227 138
54 75 -- -- 51
015
inch 12.00 10.00 9.15 6.97 7.87 13.25 2.45 18.00 1.90 10.52 13.17 28.29 15.56 10.92 5.44
2.12 2.95 1-1/2" 5/16-16 x.62 2.00
mm 304 254 232 177 200 337 62 457 48 267 335 719 395 227 138
54 75 -- -- 51
018
inch 12.00 10.00 9.15 7.10 7.87 13.25 2.72 18.00 1.95 10.78 13.83 28.29 15.56 10.92 5.44
2.12 2.98 1/1/2" 5/16-16 x.62 2.00
mm 304 254 232 180 200 337 69 457 50 274 351 719 395 227 138
54 76 -- -- 51
030
inch 14.00 12.00 10.00 8.51 8.37 15.11 3.01 20.00 1.99 12.89 16.01 34.24 18.65 13.74 5.81
2.62 4.01 1-1/2" 3/8-16 x .62 2.25
mm 356 304 255 216 213 384 76.454 508 51 327 407 870 474 349 148
67 102 -- -- 57
040
inch 14.00 12.00 10.00 8.62 8.37 15.11 3.18 20.00 2.20 13.05 16.38 34.61 18.65 13.74 5.81
2.62 4.18 2" 3/8-16 x .62 2.25
mm 356 305 255 219 213 384 80.772 508 56 331 416 879 474 349 148
67 106 -- -- 57
045
inch 18.00 16.00 12.00 10.74 9.75 20.00 2.71 28.00 3.27 17.09 21.63 44.24 22.02 17.16 8.13
3.50 4.99 2" 1/2-13 x .88 3.50
mm 457 406 305 273 248 508 69 711 83 434 549 1124 559 436 207
89 127 -- -- 89
060
inch 18.00 16.00 12.00 10.74 9.75 20.00 3.00 28.00 2.91 17.38 21.91 44.52 22.02 17.16 8.13
3.50 5.00 2-1/2" 1/2-13 x .88 3.50
mm 457 406 305 273 248 508 76 711 74 441 557 1131 559 436 208
89 127 -- -- 89
130
inch 18.00 16.00 12.00 10.74 9.75 20.00 3.63 28.00 3.29 18.01 22.93 45.54 22.02 17.16 8.13
3.50 5.65 3" 1/2-13 x .88 3.50
mm 457 406 305 273 218 508 92 711 84 457 582 1157 559 436 207
89 144 -- -- 89
180
inch 20.00 18.00 14.50 13.06 11.50 23.25 3.28 36.00 4.16 19.53 24.73 50.24 25.91 18.82 10.00
4.50 6
.01 3" 1/2-13 x 1.0 5.38
mm 508 457 368 332 292 591 83.312 914 106 496 628 1276 658 478 254
114 153 -- -- 137
220
inch 20.00 18.00 14.50 13.25 11.50 23.25 3.52 36.00 4.10 19.77 25.47 50.98 25.91 18.82 10.00
4.50 6.01 4" 1/2-13 x 1.0 5.38
mm 508 457 368 337 292 591 89.408 914 104 502 647 1295 658 478 254
114 153 -- -- 137
L
P
M
H
E
G
J
F
K
B/2
B
A
C
D
T1
S
T
U (3) TAPPED
HOLES
V
V/2
N
Port Size
PD100-658
