Waukesha Cherry-Burrell
®
Brand Universal 3 Pump Maintenance
11/2018 95-03103 Page 73
5. Install the wave spring on the shaft.
Install Pump Body
1. Install the pump body onto the gear case. Confirm that the
pump body dowel pins align with the correct size bushing on
the gear case.
NOTE: Double mechanical seal shown.
2. Figure 169 shows the pump body installed on the gear case.

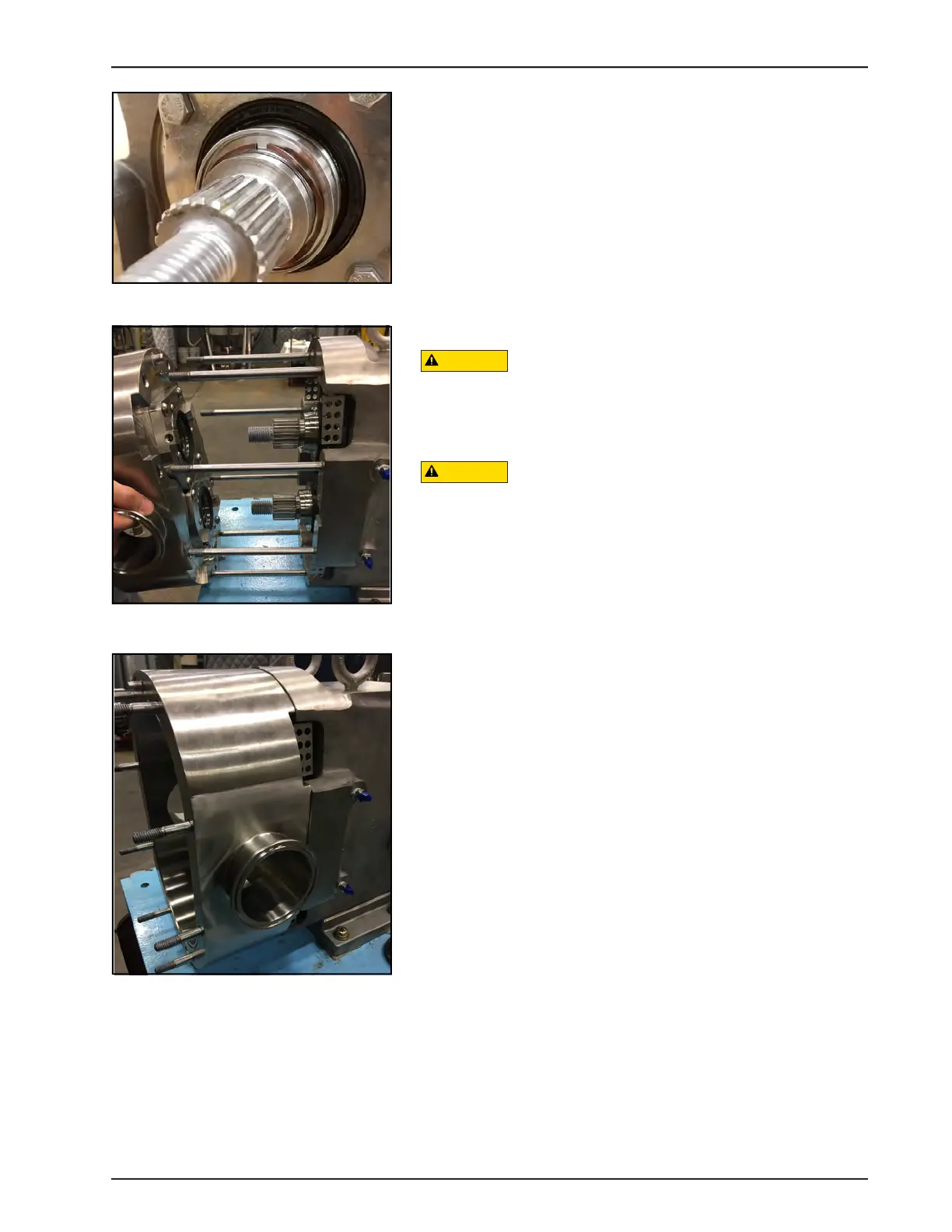

Figure 167 - Install wave spring
Figure 168 - Install pump body
Make sure the pump is securely bolted or clamped down prior to
performing any maintenance work. The pump center of gravity
changes as parts are added or removed, and could result in
tipping of an unsecured pump.
To lift the body of a 130, 180, 210, 220, or 320-U3, use a lifting
strap threaded through the ports on either side of the body.
Figure 169 - Pump body installed
