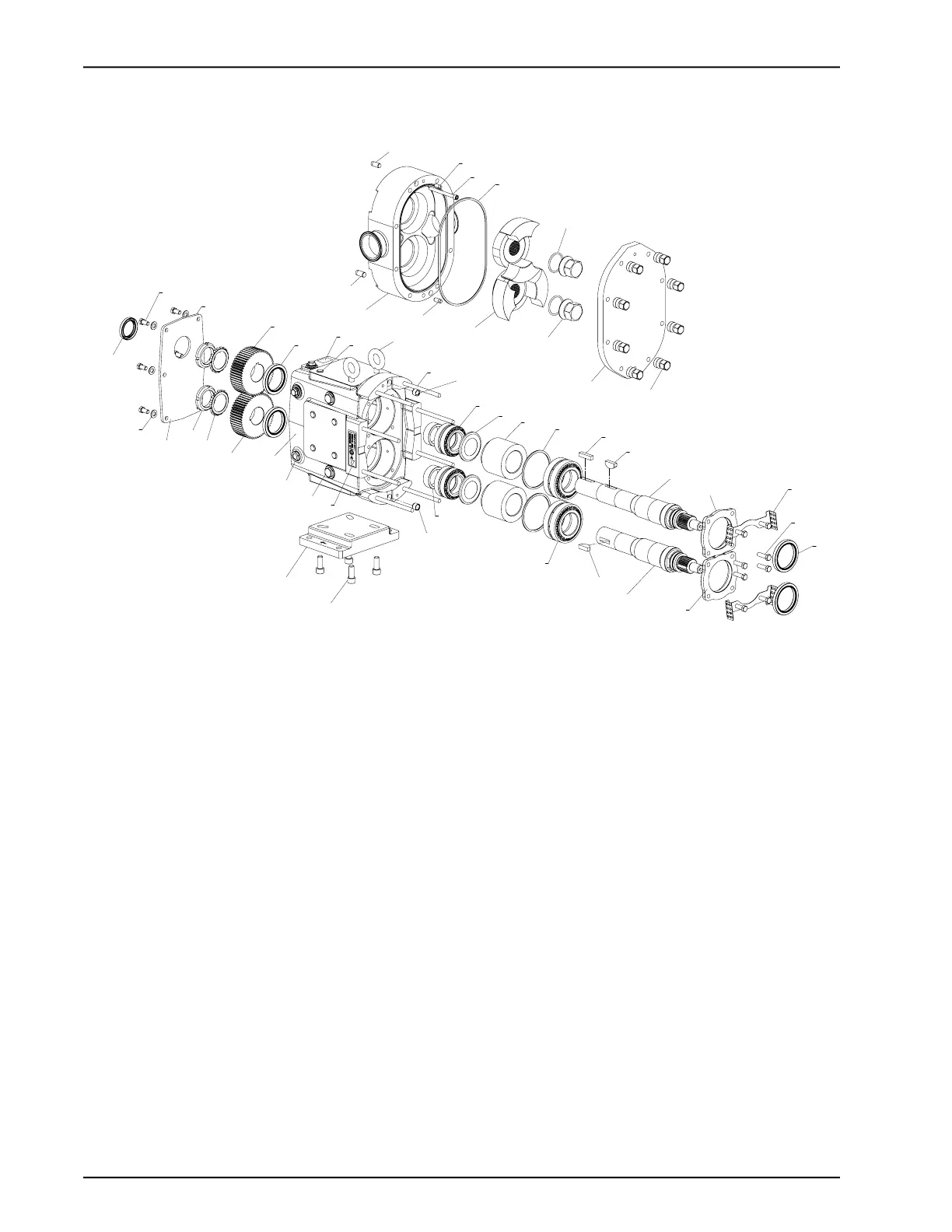

Parts List Waukesha Cherry-Burrell
®
Brand Universal 3 Pump
Page 110 95-03103 11/2018
045, 060, 130-U3 Parts
Notes for page 111:
* Recommended spare parts
1. Contact customer service with Serial Number of pump for Part Number.
2. Standard clearances and finishes for rotor part numbers shown. Contact customer service for optional clearances and
finishes. All rotors include rotor drive pins installed. For replacement pin, see item 9A (not shown).
4. The oil plug requires O-ring N70114.
41. Tru-Fit drive shaft is longer than the standard drive shaft listed here. See page 132.
43. Exposed length of dowel pin: .444" (11.3 mm)
44. Exposed length of dowel pin: .563" (14.3 mm)
For standard seals, see page 123. For specialty seals, see page 124. For standard seal kits, see page 128.
