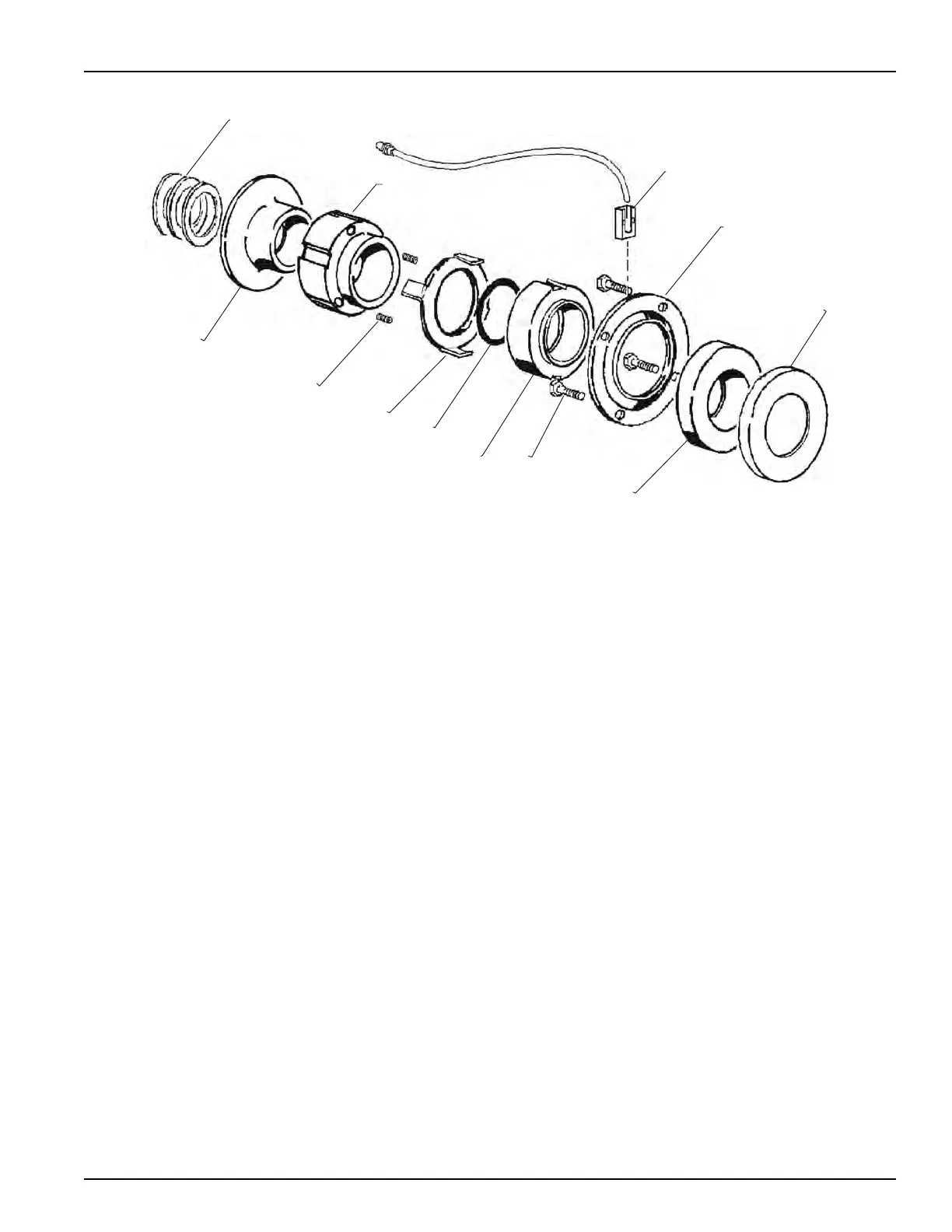

Figure 3 - Type 1 Seal Assembly (Water Cascade Type 1C)
CT100-063
A
B
C
D
E
F
G H
J
K
L
M
A. Motor Shims G. Rotary Seal
B. Deflector H. Cap Screws
C. Spring Retainer J. Seat Retainer
D. Springs K. Stationary Seal
E. Tabbed Washer L. L-gasket
F. O-ring M. Water Cascade Block
