SPX 2085 - Page 12

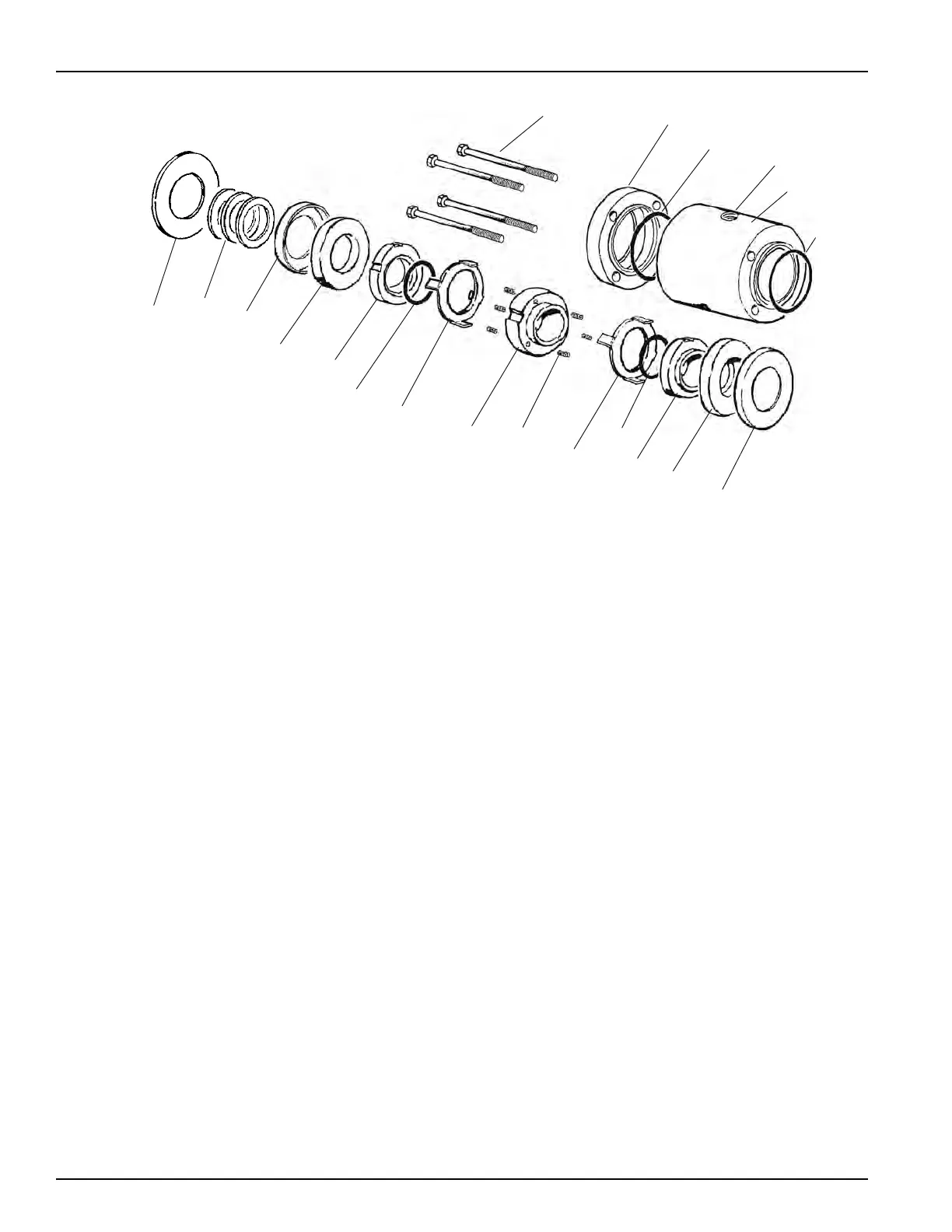

Figure 4 - Type 4 Seal Assembly
CT100-064b
16
22
8
2
5
9
10
6, 7
11
10
9
5
2
8
17
13
12
14
15
2. Stationary Seal 12. Housing O-ring
5. Rotary Seal 13. Seal Housing
6. Set Screw 14. Seal Retainer
7. Spring Retainer 15. Cap Screws
8. L-gasket 16. Slinger
9. Seal O-ring 17. NPT Plug
10. Tabbed Washer 22. Motor Shims
11. Springs
Introduction Waukesha Cherry-Burrell
Page 12 95-03009 10/2010
