© 2021 Radiodetection Ltd 12
NOTE: Prolonged use of high power output on the
transmitter will reduce battery life.

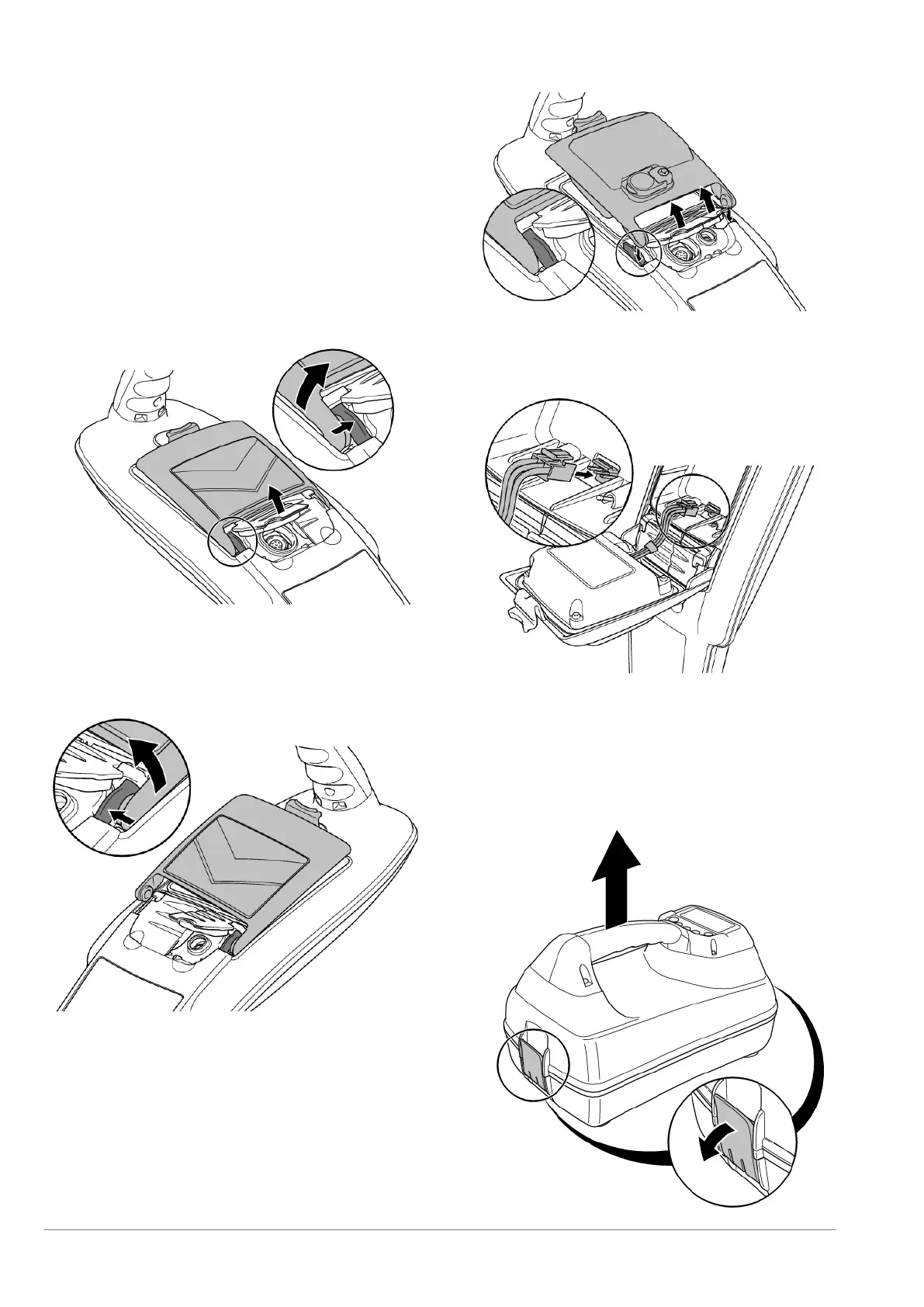

Removing / fitting battery packs
Locator battery pack:
1 Open the battery compartment using the release
catch (figure 4.1)
2 If using a Li-Ion battery pack un-plug the lead
connector (see figure 4.7)
3 Lift the accessory cover slightly and press the
battery retaining latch inwards
Figure 4.4 Press the retaining latch inwards
4 Rotate the battery pack away and up from the latch
5 Repeat on the other side to release the battery pack
completely then lift the battery pack away
Figure 4.5 Repeat then lift the battery pack away
To fit a new battery, lift both accessory covers slightly,
then gently push the replacement pack into place until it
clicks on both sides, then close the battery pack
Figure 4.6 Installing a new battery pack
If using the Li-ion battery pack, plug the lead into the
battery connector (fig 4.7).
Figure 4.7 Connecting the Li Ion lead
NOTE: Fully charge your lithium-ion battery pack before
its first use
Transmitter battery pack:
1 Unlatch then remove the accessory tray
