SRAM code r 2018 User Manual

14Caliper Piston Installation

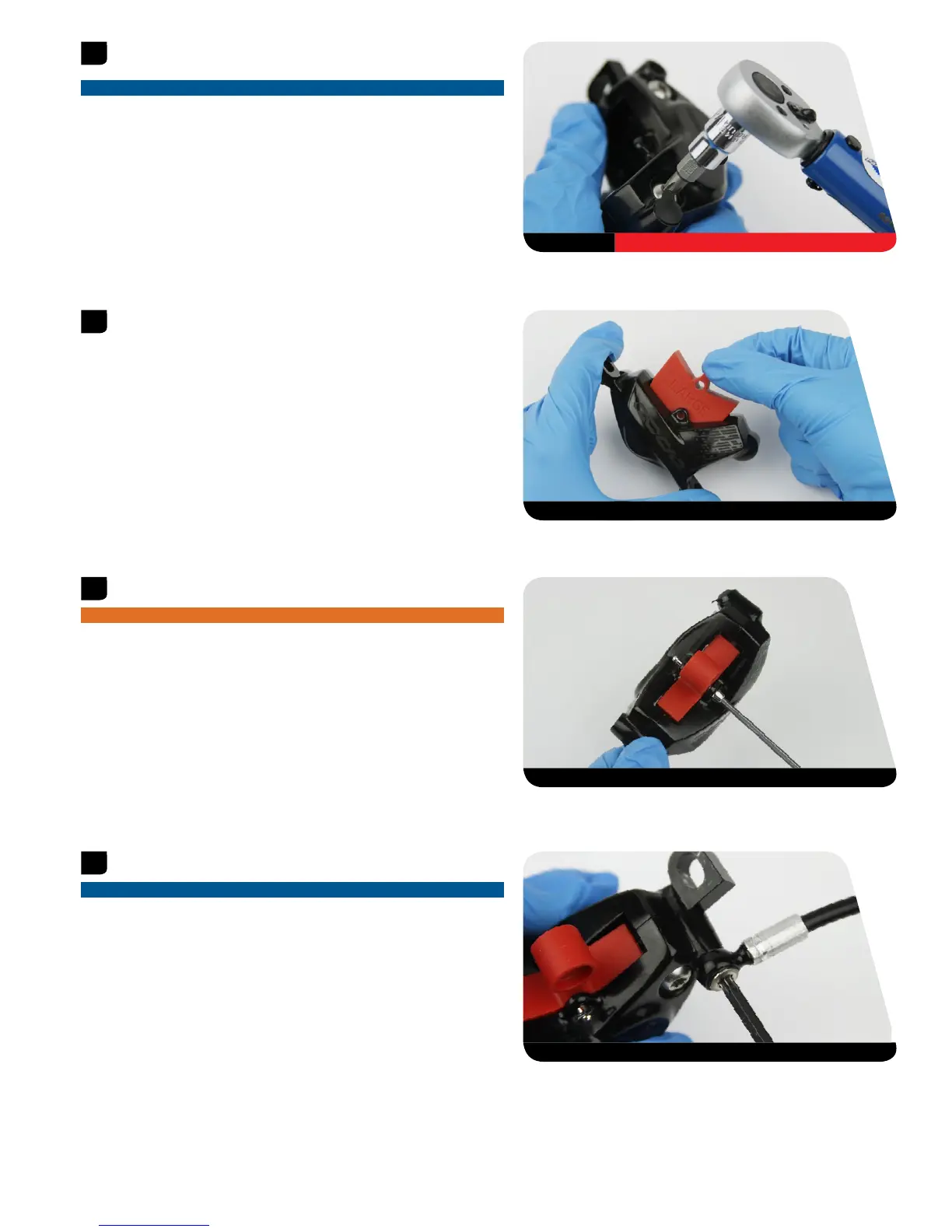

Align the caliper body halves. Ensure the heat shield remains pressed
against the caliper. Tighten each body bolt.
NOTICE
Visually inspect the caliper to confirm the caliper o-rings are not
protruding. If an o-ring is visible, then remove the caliper body bolts
and reinstall. Pinched o-rings may cause leaks.
Insert the bleed block into the caliper.
Install the pad retention bolt.
⚠ WARNING
You must bleed your brakes before reinstalling the brake pads.
Installing the brake pads prior to bleeding the brakes could
contaminate the brake pads and lead to a brake failure.
Install the banjo and hose, then hand tighten the banjo bolt.
NOTICE
Visually inspect the banjo bolt hole to confirm the o-ring is not pinched
or protruding. If the o-ring is visible, then remove the bolt and reinstall.
Pinched o-rings may cause leaks.
T25 9.8-11.8 Nm (87-104 in-lb) 22 mm
4
5
Bleed Block Torque Spec 22 mm
2.5 mm Torque Spec 22 mm
6
T25 Torque Spec 22 mm
7
