SRAM code r 2018 User Manual

20Piston Assembly Removal

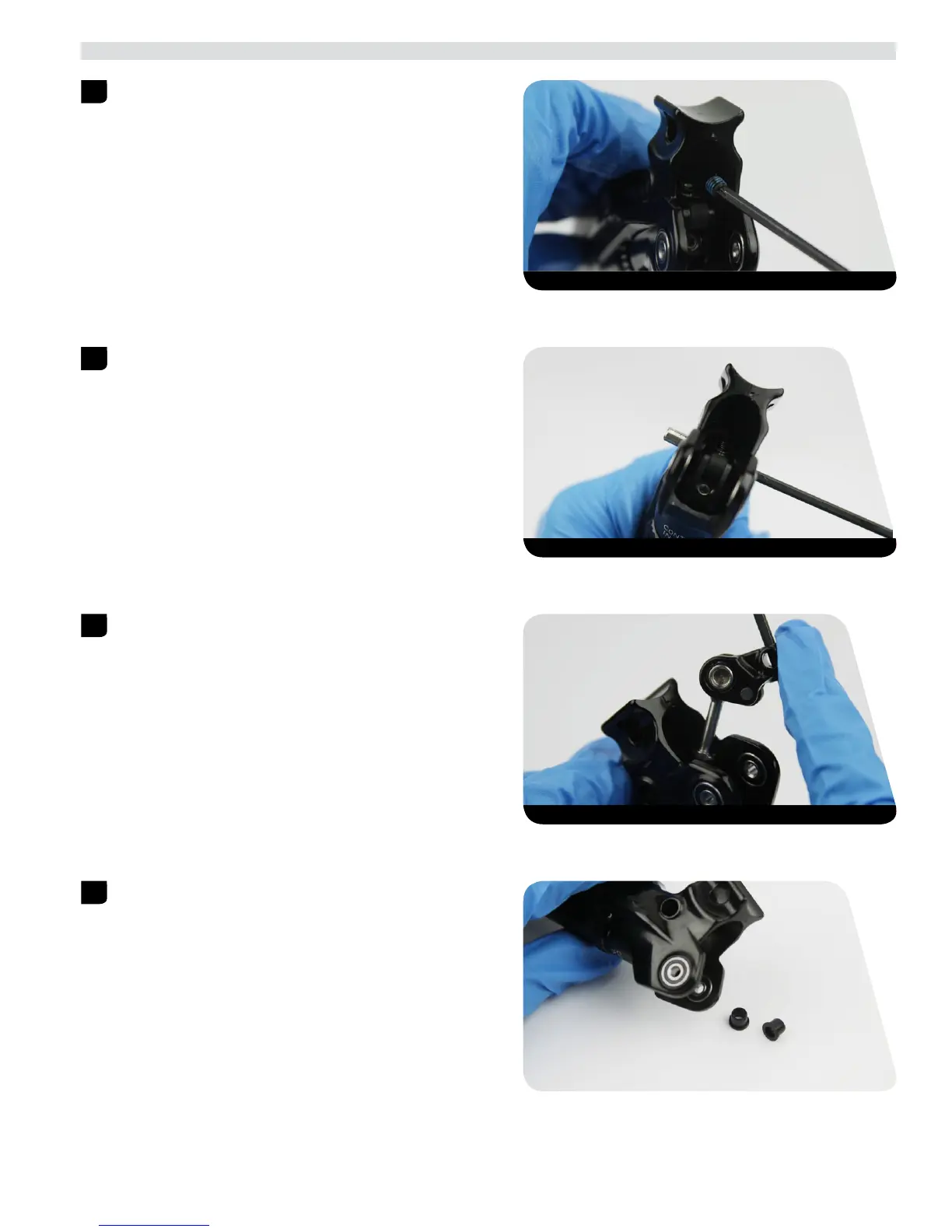

Piston Assembly Removal
Remove the SwingLink™ pinch bolt.
Push out the SwingLink pivot pin.
Remove the SwingLink.
Remove the SwingLink bushings from both sides of the lever.
T8 Torque Spec 22 mm
1
T8 Torque Spec 22 mm
2 2
T8 Torque Spec 22 mm
3
4
