16Code™ RSC® Lever Service
Code™ RSC® Lever Service
Parts and Tools Needed for Service
Parts
• Lever Internals Guide™ - RSC/Ultimate/ Code RSC
• Hydraulic Disc Brake Hose Fitting Kit (includes 1 threaded hosebarb,
1 red comp fitting) Qty 1 - Stealthamajig
• Safety and Protection Supplies
• Clean, lint-free rags
• Nitrile gloves
• Oil pan
• Safety glasses
Lubricants and Fluids
• Isopropyl alcohol
• Loctite® Blue 242®
• SRAM® High-Performance DOT 5.1 fluid. If SRAM fluid is not
available, only use DOT 5.1 or 4 fluid.
• SRAM DOT grease. If SRAM DOT grease is not available only use a
DOT compatible grease.
Common Tools
• 2.5 & 4 mm hex wrenches
• Needle nose pliers
• Pick with a 90 degree bent tip
• T8, T10, & T25 TORX® wrench
• T8 & T10 TORX bit socket
• 8 mm flare nut wrench
• 8 mm flare nut crowfoot wrench
• Torque wrench
• Magnet
SRAM Tools
• SRAM Lever Internals Assembly Tool (for setting pushrod distance and
installing internals)

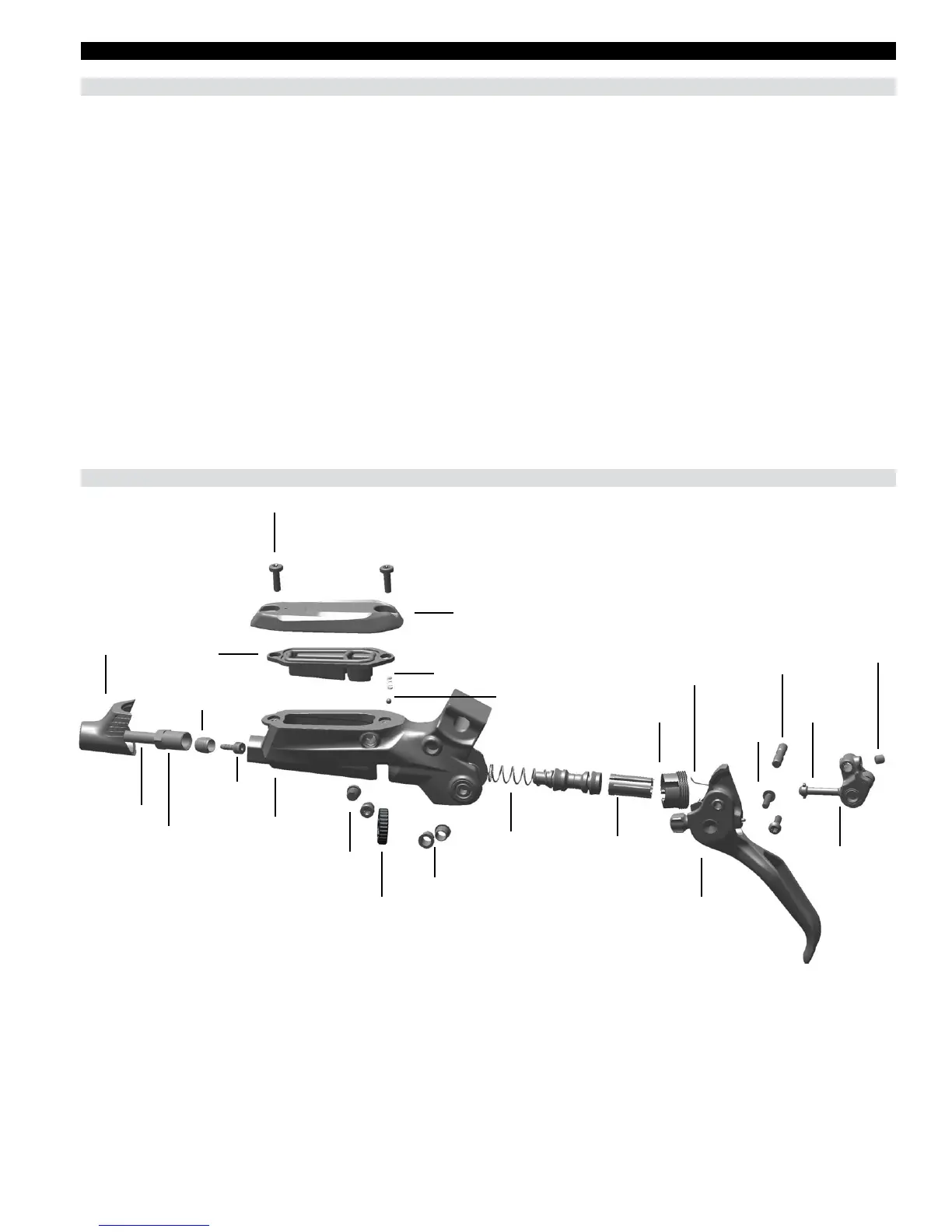

Code RSC Lever Exploded View
Reservoir bolts
Reservoir cap
Bladder
Hose
boot
Compression nut
Lever body
Contact adjust knob
Bleed port screws
SwingLink™ bushings
Detent
ball
Detent spring
Piston assembly
Coupler
Sleeve
Lever return spring
Lever pivot
bolts
SwingLink
SwingLink
push rod
Pinch
bolt
Lever blade assembly
Hose
Pivot pin
Compression fitting
Hose barb
