26Lever Blade Installation
Lever Blade Installation
NOTICE
DOT fluid will damage painted surfaces. If any fluid comes in contact with a painted surface (e.g. your frame) or printing on the brakes, wipe it off
immediately and clean it with isopropyl alcohol or water. Damage to painted and/or printed surfaces by DOT fluid is not covered under warranty.

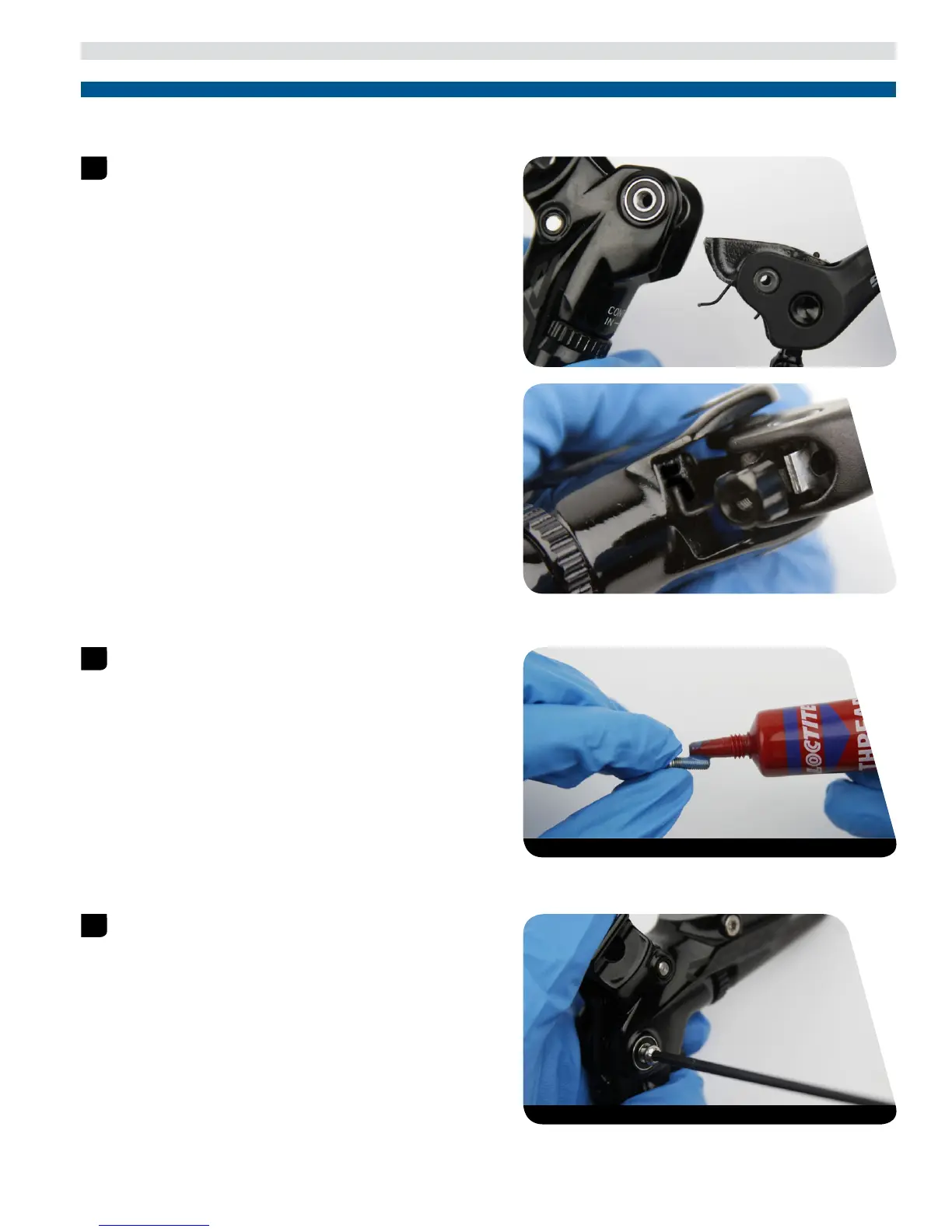

Install the lever blade.
Line up the pivot holes of the lever blade with the pivot holes in the
lever body.
Make sure the lever return spring is seated properly in the lever. The
outboard end of the spring must press against the lever blade, while
the inboard end of the springs must press against the lever body. If the
return spring is not seated properly, you will not be able to adjust the
reach of the lever blade.
Apply a small amount of Loctite® Blue 242® onto each pivot bolt.
Thread each pivot bolt into the bearings on each side of the lever body.
1
