7SRAM® Code™ Brakes Caliper Service
SRAM® Code™ Brakes Caliper Service
Parts, Tools and Supplies
Parts
• SRAM Brake Pad Kit
• Caliper Piston Kit (includes 2-16 mm & 2-15mm caliper pistons, seals
& o-rings) - Code R B1/RSC A1
Safety and Protection Supplies
• Clean, lint-free rags
• Nitrile gloves
• Oil pan
• Safety glasses
Lubricants and Fluids
• Isopropyl alcohol
• SRAM High-Performance DOT 5.1 fluid. If SRAM fluid is not available,
only use DOT 5.1 or 4 fluid.
• SRAM DOT grease. If SRAM DOT grease is not available only use a
DOT compatible grease.
Bicycle Tools
• Bicycle work stand
• Bench vice
• Aluminum soft jaws
Common Tools
• 2.5 and 5 mm hex wrenches
• Needle nose pliers
• Pick with a 90 degree bent tip
• T25 TORX® wrench
• T25 TORX bit socket
• Torque wrench
• Digital caliper
SRAM Tools
• SRAM Brake Bleed Kit (includes: Bleed Block and Bleeding Edge™ Fitting)
• Pad Spreader Tool (1.8 mm) - Guide/Code Caliper

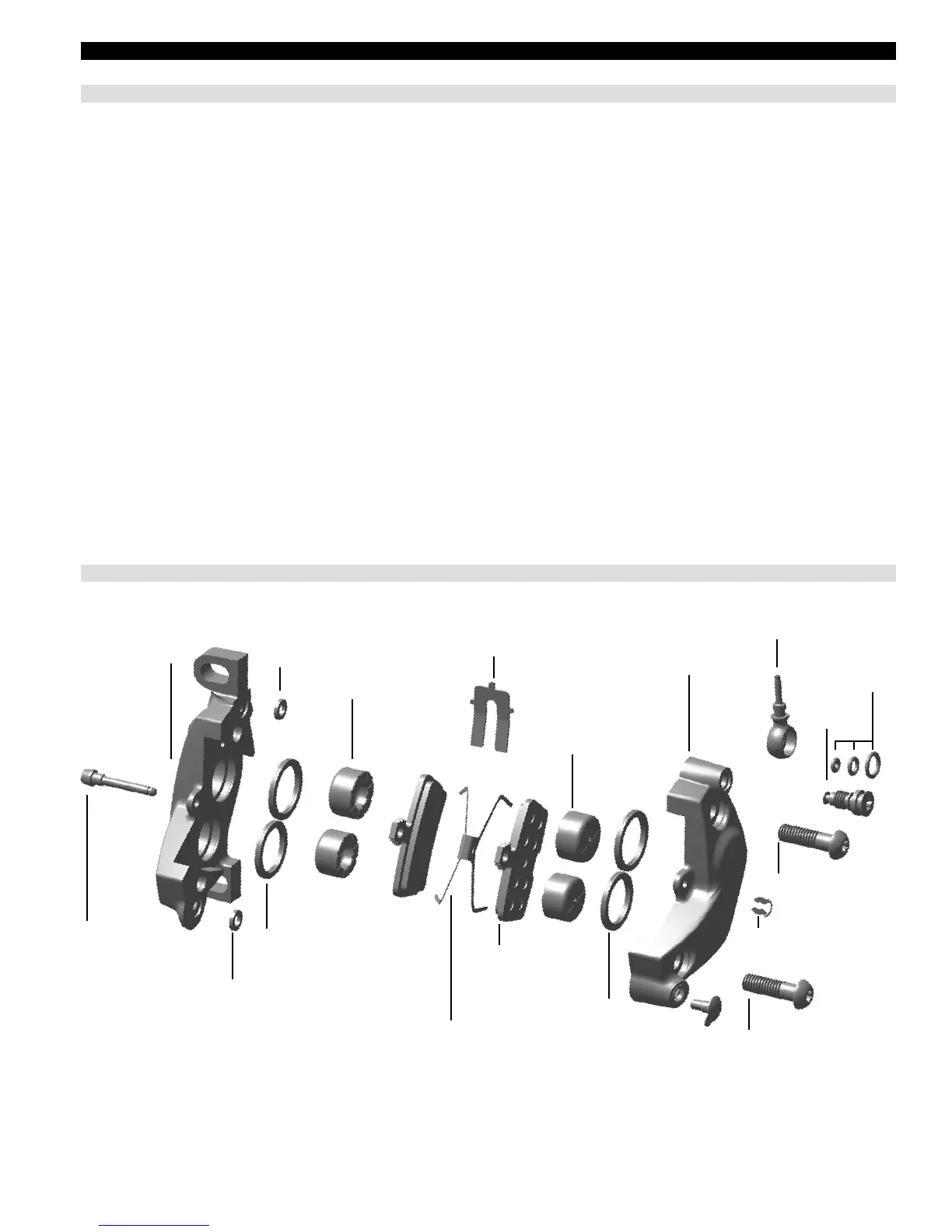

Caliper Exploded View
Pad retention bolt
Caliper body bolt
Outboard caliper
body
Caliper
o-ring
Piston seals
Caliper pistons
Pad H-Spring
Brake pads
Heat
shield
Caliper pistons
Piston seals
Banjo
bolt
E-clip
Caliper body bolt
Caliper
o-ring
Inboard caliper body
Banjo
Banjo
o-rings
