30Code™ R® Lever Service
Code™ R ® Lever Service
Parts and Tools Needed for Service
Parts
• Lever Internals Guide™ - R/RE/DB5/ Code R Qty 1
• Hydraulic Disc Brake Hose Fitting Kit (includes 1 threaded hosebarb,
1 red comp fitting) Qty 1 - Stealthamajig
Safety and Protection Supplies
• Clean, lint-free rags
• Nitrile gloves
• Oil pan
• Safety glasses
Lubricants and Fluids
• Isopropyl alcohol
• Loctite® Blue 242®
• SRAM High-Performance DOT 5.1 fluid. If SRAM fluid is not available,
only use DOT 5.1 or 4 fluid.
• SRAM DOT grease. If SRAM DOT grease is not available only use a
DOT compatible grease.
Common Tools
• 2 mm & 4 mm hex wrenches
• Needle nose pliers
• Pick with a 90 degree bent tip
• T8, T10, & T25 TORX® wrench
• T8 & T10 TORX bit socket
• 8 mm flare nut wrench
• 8 mm flare nut crowfoot wrench
• Torque wrench

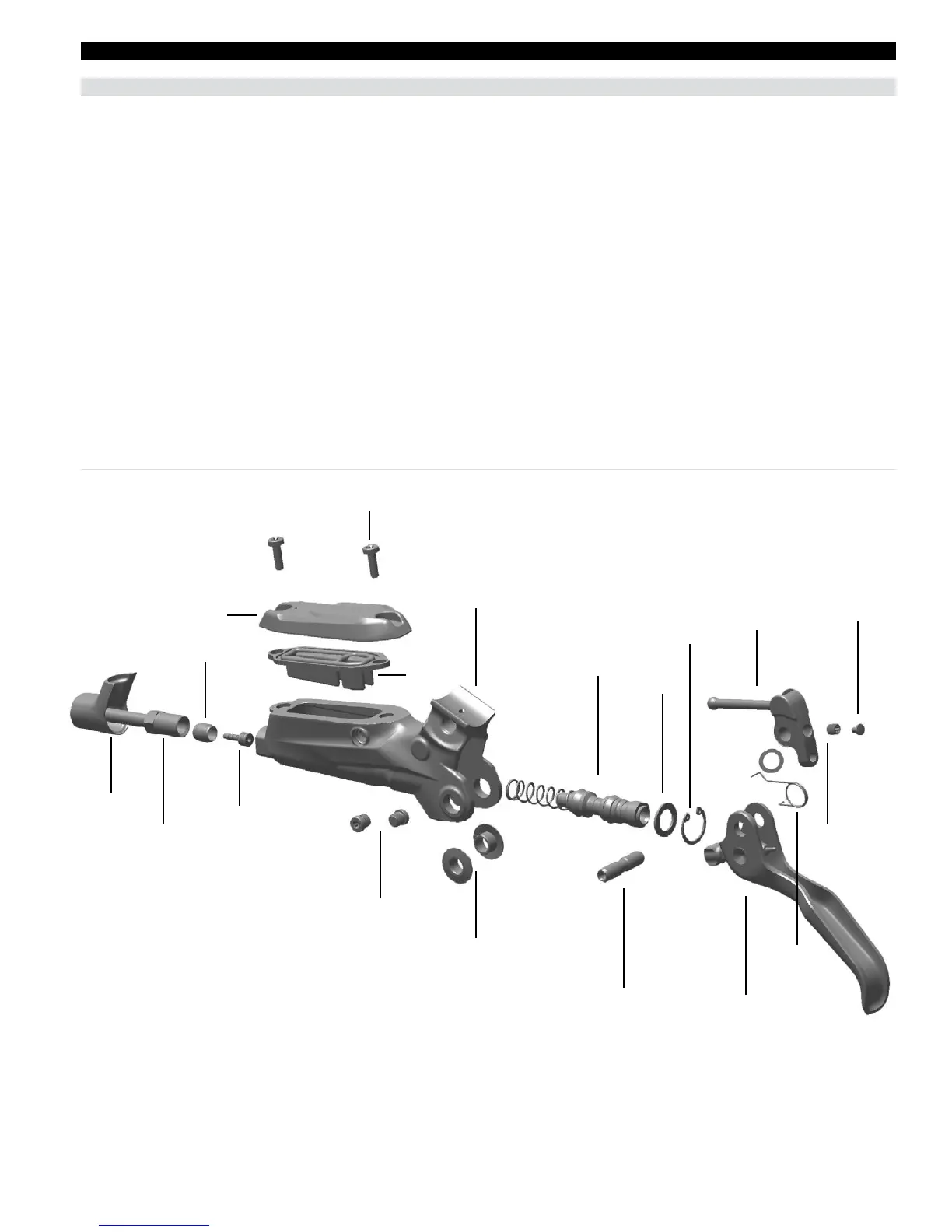

Code R Lever Exploded View
Lever blade
Pivot pin
Level blade bushings
Pinch bolt
Binder plug
Push rod/Cam
Lever return
spring
Snap ring
Washer
Piston assembly
Bleed port screws
Compression fitting
Hose boot
Bladder
Reservoir bolts
Reservoir cap
Lever body
Hose barb
Washer
Compression nut
