SRAM code rsc 2018 User Manual

23Piston Assembly Installation

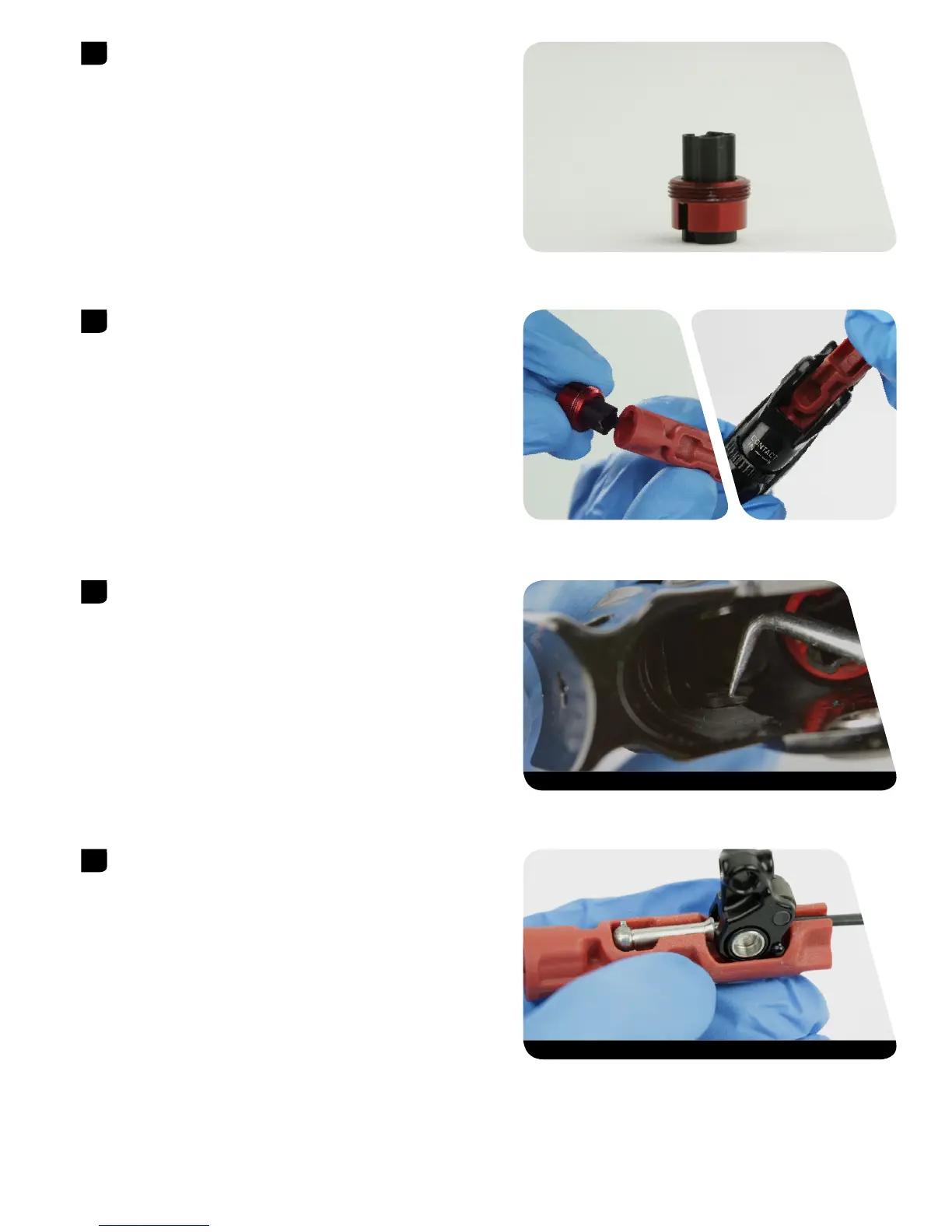

Place the sleeve on the coupler.
The sleeve threads must be oriented toward the base of the coupler.
Use the SRAM® Lever Internals Assembly Tool to engage and thread
the sleeve and coupler onto the piston assembly.
Engage the slots on the sleeve with the contact adjust knob and
continue to thread the SRAM Guide Lever Internals Assembly Tool in a
clockwise rotation until it stops.
Install the SwingLink™ bushings.
If the SwingLink bushings fall out easily, apply a small amount of SRAM
DOT grease to the bushings to help hold them in place.
Place the SwingLink onto the SRAM Lever Internals Assembly Tool to
adjust the length of the push rod.
Adjust the length of the push rod: turn counter-clockwise to make the
push rod fit more snug in the tool, turn clockwise to make the push rod
more lose in the tool.
4
5
SRAM DOT Grease Torque Spec 22 mm
6
SRAM® Lever Internals Assembly Tool 2 mm 22 mm
7
