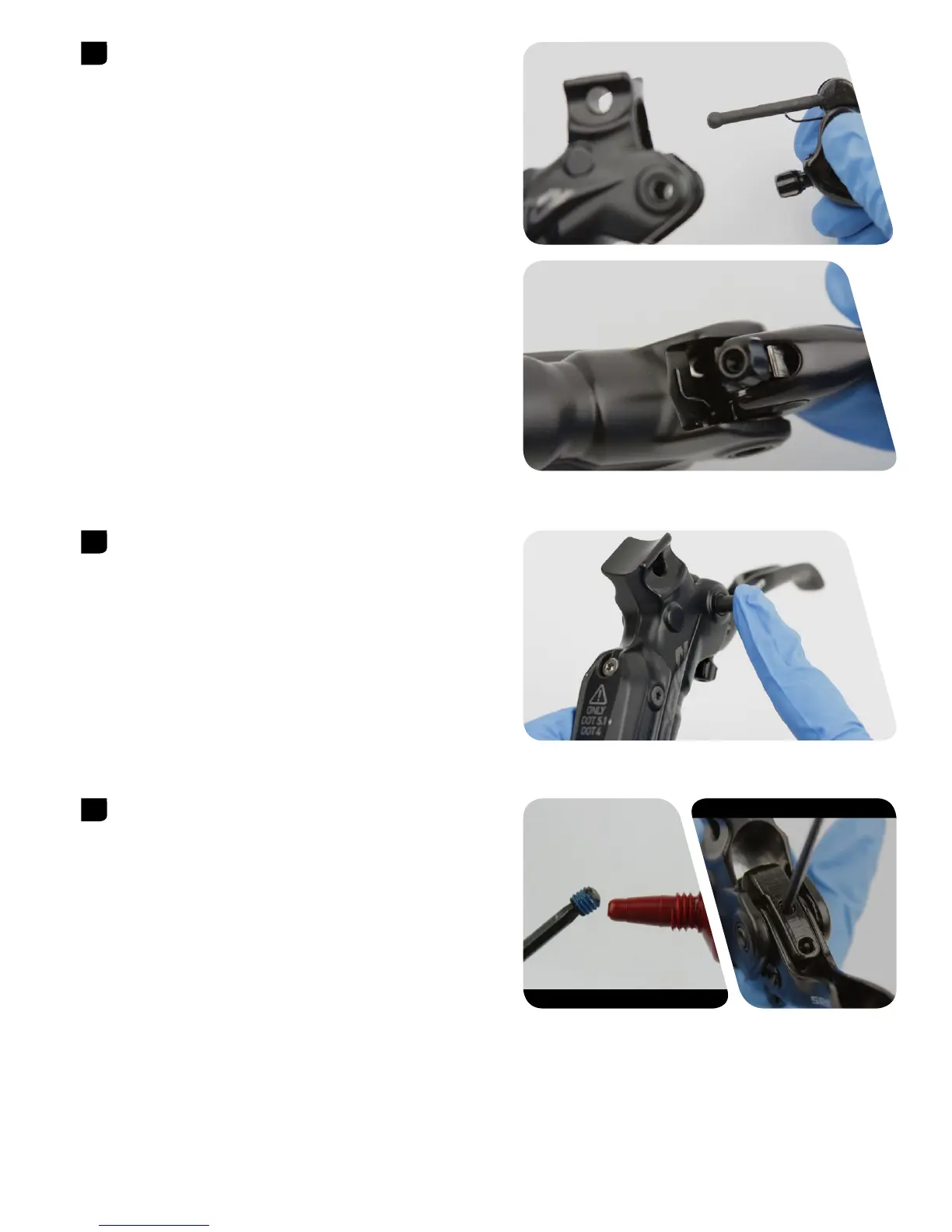

38Lever Blade Installation
Insert the lever blade assembly into the lever body, placing the push
rod into the piston and lever return spring on the lever body.
Make sure the lever return spring is seated properly in the lever. The
outboard end of the spring must press against the lever body. If the
return spring is not seated properly, you will not be able to adjust the
reach of the lever blade.
Line up the cam and lever blade with the holes in the lever body, then
press the pivot pin through the holes.
Apply a small amount of Loctite® Blue 242® onto the pinch bolt.
Thread the pinch bolt into the lever body.
2
3
4
