24Caliper Brake Pad Removal

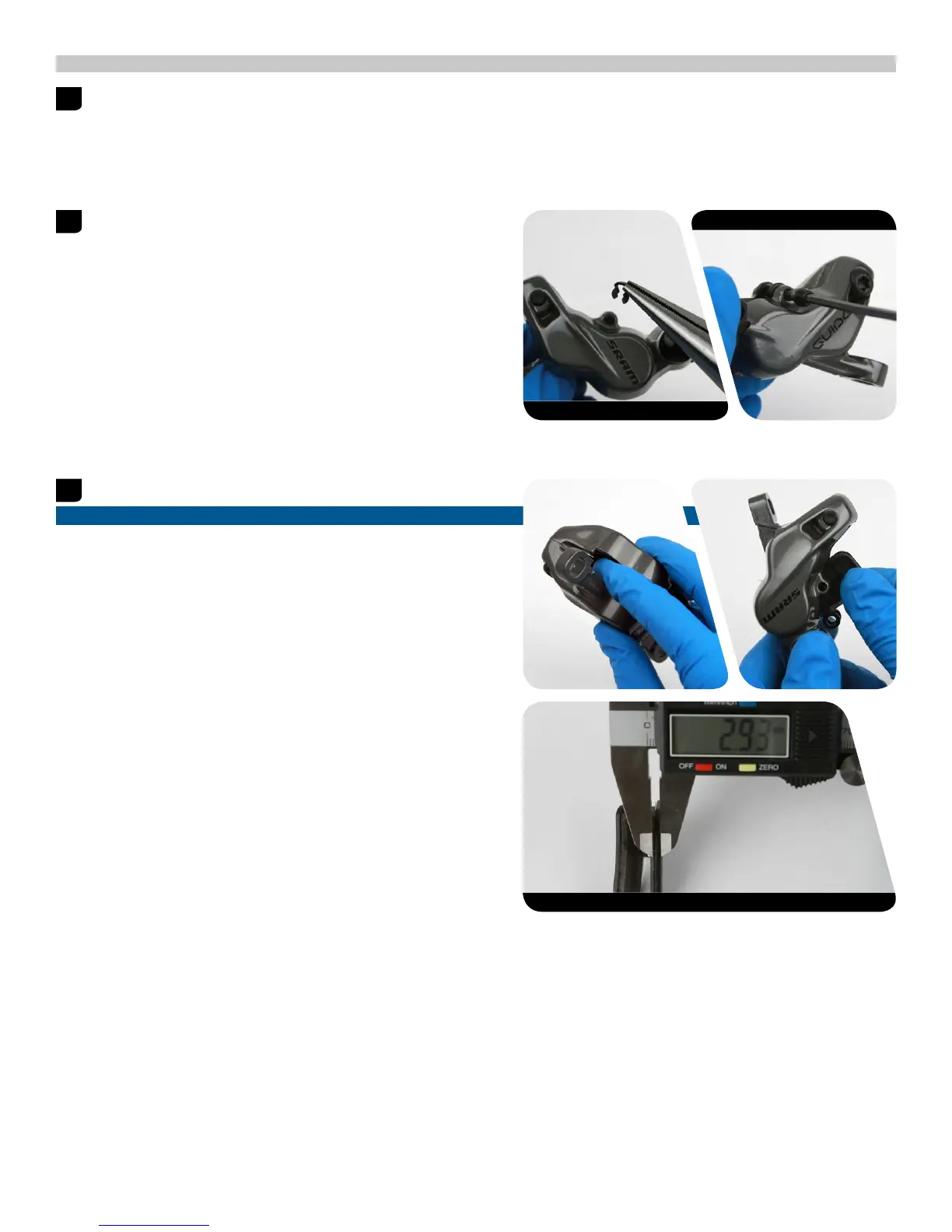

Caliper Brake Pad Removal
Use a 5 mm hex wrench to remove the brake caliper from the fork
or frame.
Remove the caliper mounting bracket and hardware from the
caliper then set the parts aside in the order they were removed.
Use needle nose pliers to remove the E-clip from the pad retainer
bolt. Use a 2.5 mm hex wrench to remove the pad pin from the
caliper.
Push the brake pads out of the caliper.
NOTICE
Brake pads must be replaced if the total thickness of the backing
plate and pad friction material is less than 3 mm.
1
2
Needle nose pliers 20 mm or 15 mm Thru Axle
3
Caliper 2.7-3.2 N•m (24-28 in-lb) 22 mm
To Next Page
