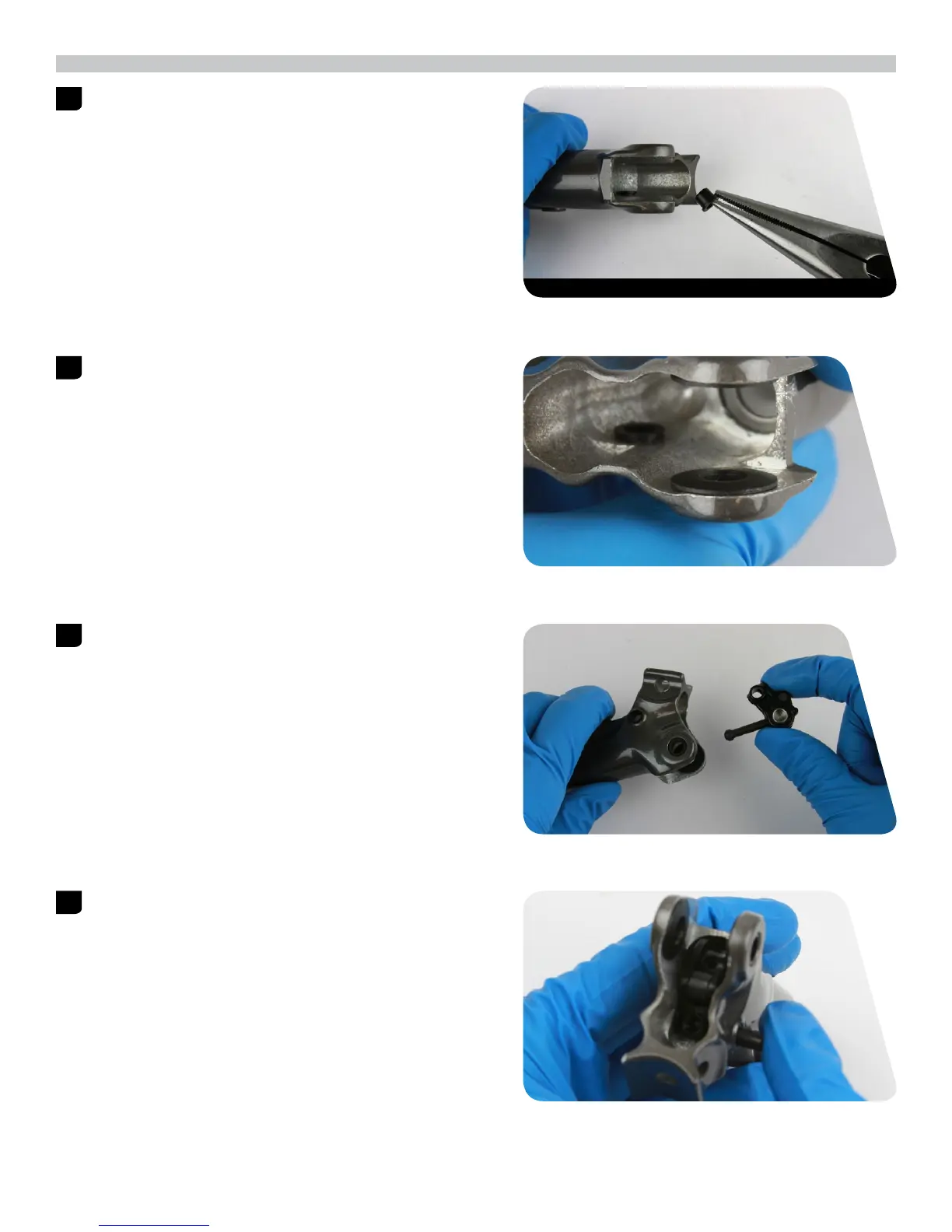

Lever Blade Installation
RS only: Use needle nose pliers to install the SwingLink™ bushings.
If the SwingLink bushings fall out easily, apply a small amount of
grease.
Insert the lever blade bushings into both sides of the lever by
hand.
RS only: Use your hand to set the SwingLink into place.
RS only: Line up the hole in the SwingLink with the hole in the
bushings, then push the pivot pin into the hole until it stops.
1 1
Needle nose pliers 2.7-3.2 N•m (24-28 in-lb) 22 mm
2
3
4
To Next Page
