SRAM Guide DB5 - Lever Service; Parts and Tools Needed for Service

6Guide RS Lever Exploded View
Lever Service
Parts and Tools Needed for Service
• Safety glasses
• Nitrile gloves
• Oil pan
• Isopropyl alcohol
• Clean, lint-free rag
• Avid High-Performance DOT 5.1 fluid or DOT 4 fluid, or
Avid DOT Grease
• Needle nose pliers
• Long-tipped snap ring pliers
• Pick with a 90˚ bent tip
• T8 , T10, & T25 TORX® wrench
• T8 & T10 TORX® bit socket
• 8 mm flare nut wrench
• 4 mm hex wrench
• Torque wrench
• Loctite® Threadlocker Blue 242®

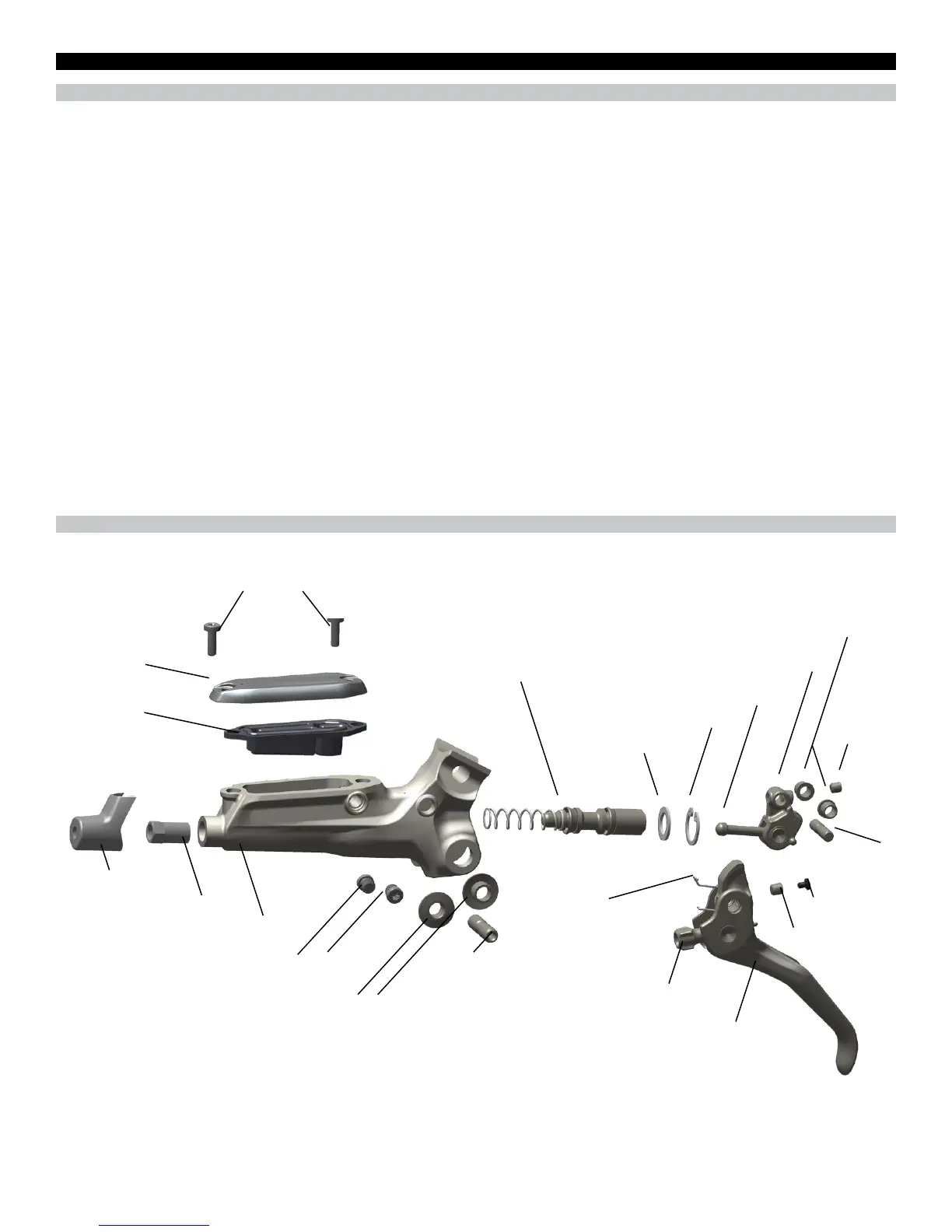

Guide RS Lever Exploded View
Reservoir bolt
Compression nut
Reservoir cap
Bladder
Lever blade bushings
Pivot pin
Piston assembly
Washer
Snap ring
SwingLink
push rod
SwingLink
Binder plug
Pinch bolt
Lever blade
Lever body
Lever return
spring
Reach adjuster
SwingLink
pivot
pinch bolt
SwingLink pivot pin
SwingLink bushings
Hose boot
Bleed port screws
