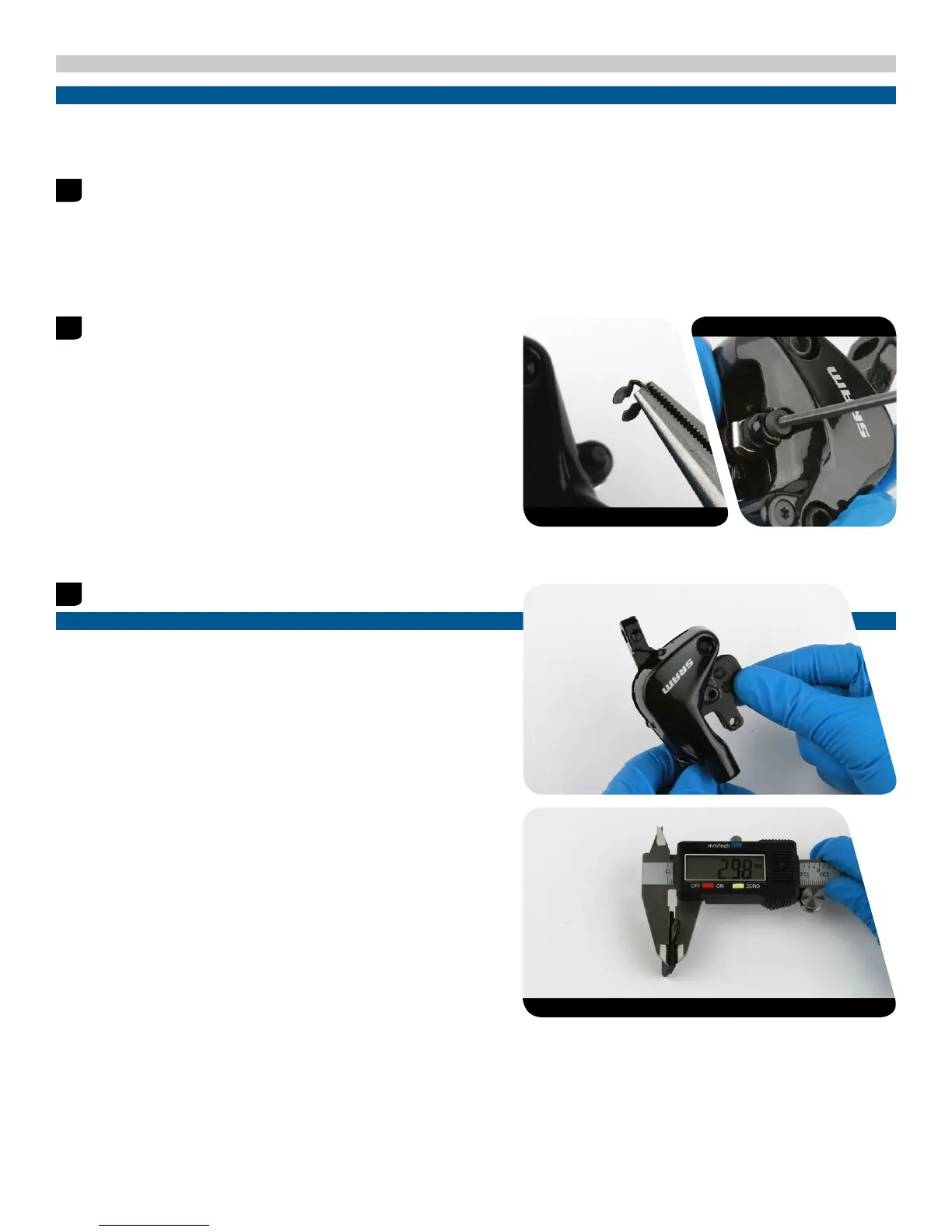

Caliper Brake Pad Removal
NOTICE
DOT fluid will damage painted surfaces. If any fluid comes in contact with a painted surface (i.e. your frame) or printing on the brakes,
wipe it off immediately and clean it with isopropyl alcohol or water. Damage to painted and/or printed surfaces by DOT fluid is not
covered under warranty.
Use a 5 mm hex wrench to remove the brake caliper from the fork
or frame.
Remove the caliper mounting bracket and hardware from the
caliper then set the bracket and hardware aside in the order they
were removed.
Use needle nose pliers to remove the E-clip from the pad pin.
Use a 2.5 mm hex wrench to remove the pad pin from the caliper.
Pull the brake pads out of the caliper.
NOTICE
Brake pads must be replaced if the total thickness of the backing
plate and pad friction material is less than 3 mm.
1
2
Needle nose pliers 20 mm or 15 mm Thru Axle
3
Caliper 2.7-3.2 N•m (24-28 in-lb) 22 mm
