Caliper Piston Removal
NOTICE
DOT fluid will damage painted surfaces. If any fluid comes in contact with a painted surface (i.e. your frame) or printing on the brakes,
wipe it off immediately and clean it with isopropyl alcohol or water. Damage to painted and/or printed surfaces by DOT fluid is not
covered under warranty.

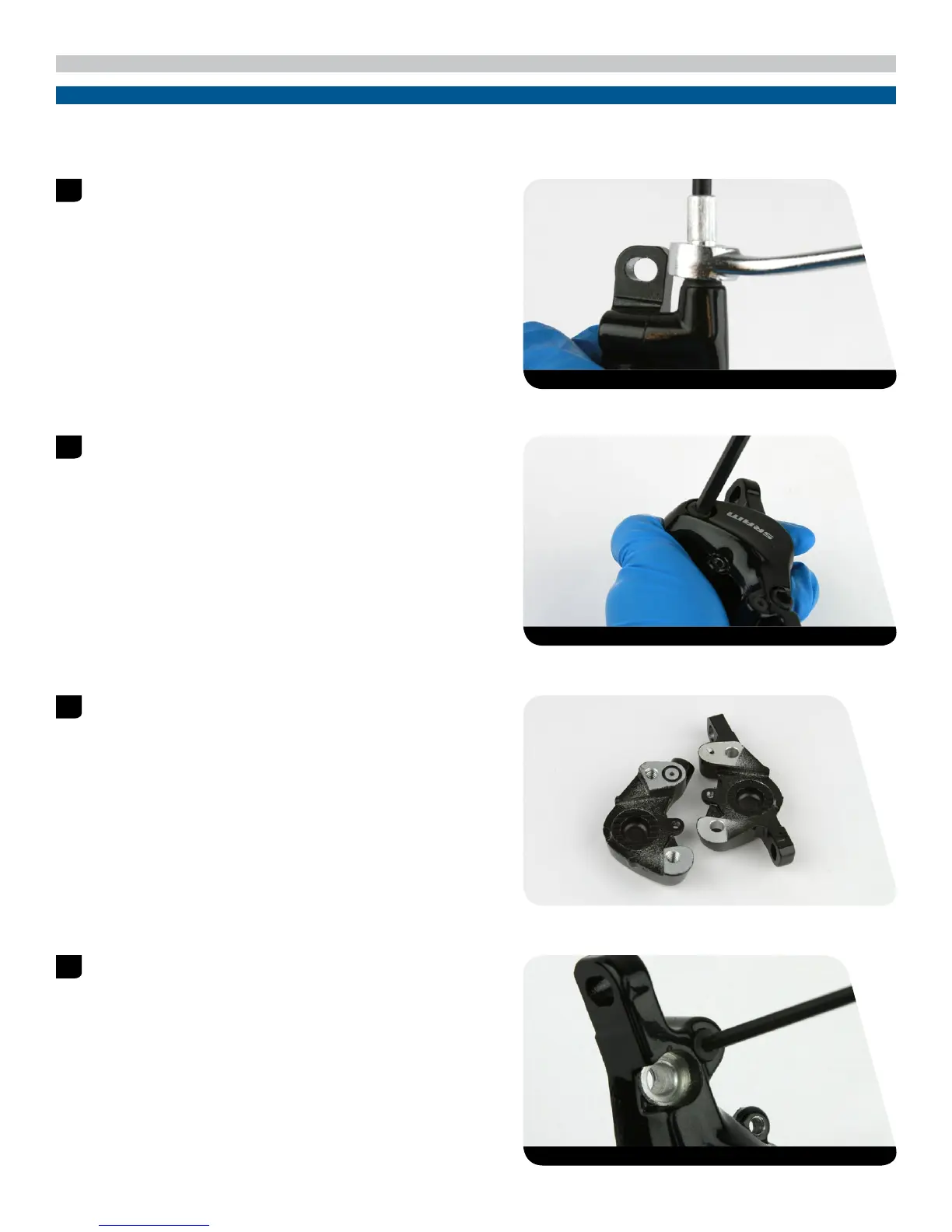

Use an 8 mm line wrench to remove the crimped hose fitting.
Pull the brake hose and crimped hose fitting from the caliper hose
port.
Brake fluid will leak, so hold the caliper over a container to catch
the fluid.
Use a 5 mm hex wrench to remove the caliper body bolts.
Separate the caliper body halves.
Use a T10 TORX® wrench to remove the bleed screw.
1
8 mm line wrench 2.7-3.2 N•m (24-28 in-lb) 22 mm
5 mm hex wrench 2.7-3.2 N•m (24-28 in-lb) 22 mm
2
3
4
T10 TORX wrench 2.7-3.2 N•m (24-28 in-lb) 22 mm
To Next Page
