28Caliper Piston Installation

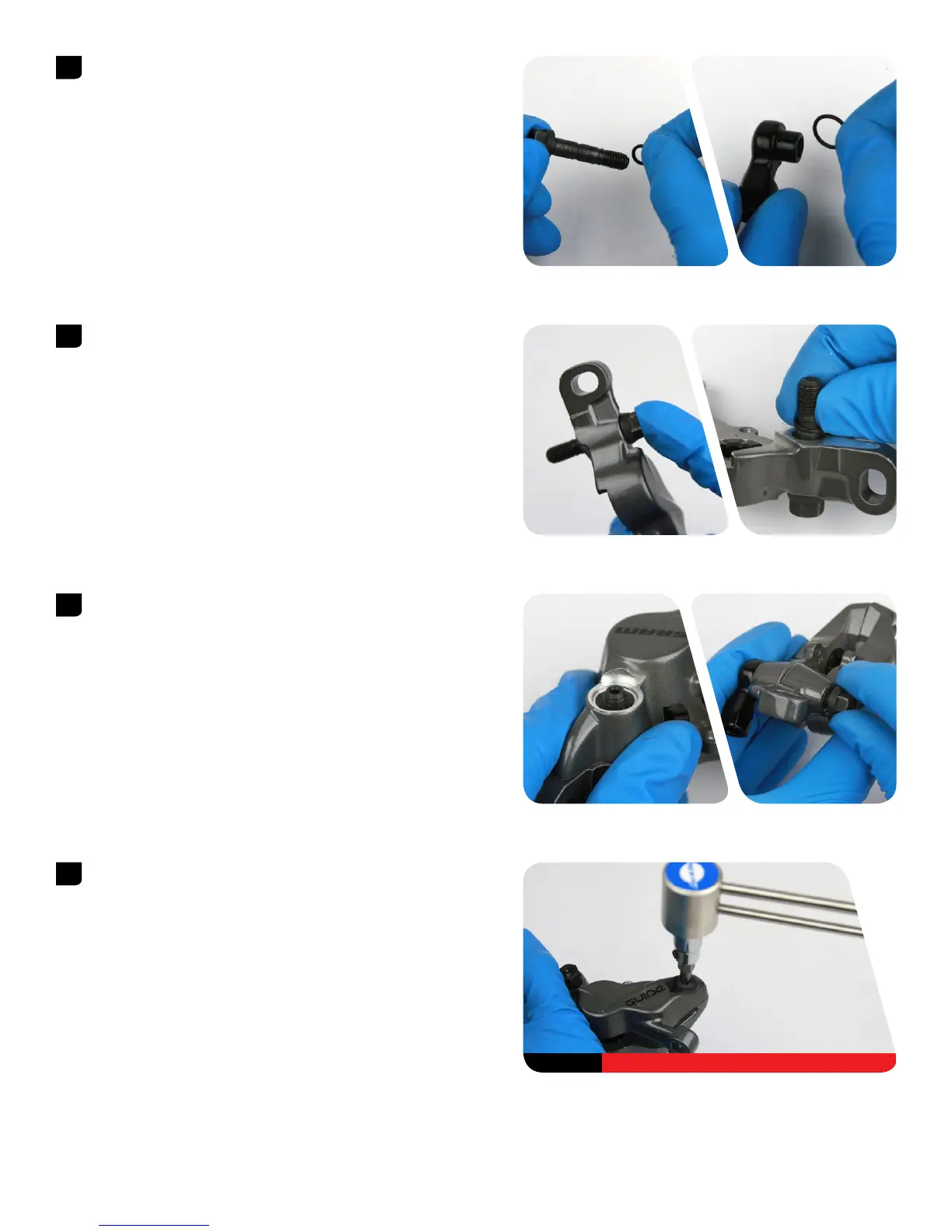

Remove the o-rings from the banjo bolt and banjo fitting.
Apply a small amount of DOT 5.1 fluid to the new o-rings and
install them.
Insert the banjo bolt through the outboard caliper half.
Apply a small amount of DOT 5.1 fluid to the caliper o-ring and
install it onto the banjo bolt.
Align the banjo fitting with the banjo bolt and thread the bolt, by
hand, into the banjo fitting until it stops. Do not tighten the banjo
bolt yet.
Install the caliper body bolt and use a torque wrench with a
T25 TORX® bit socket to tighten the bolt to
9.7-11.7 N·m (86-104 in-lb).
4
5
6
7
T25 TORX 9.7-11.7 N·m (86-104 in-lb) T25 TORX®
