SRAM Guide RS User Manual

19Lever Blade Removal

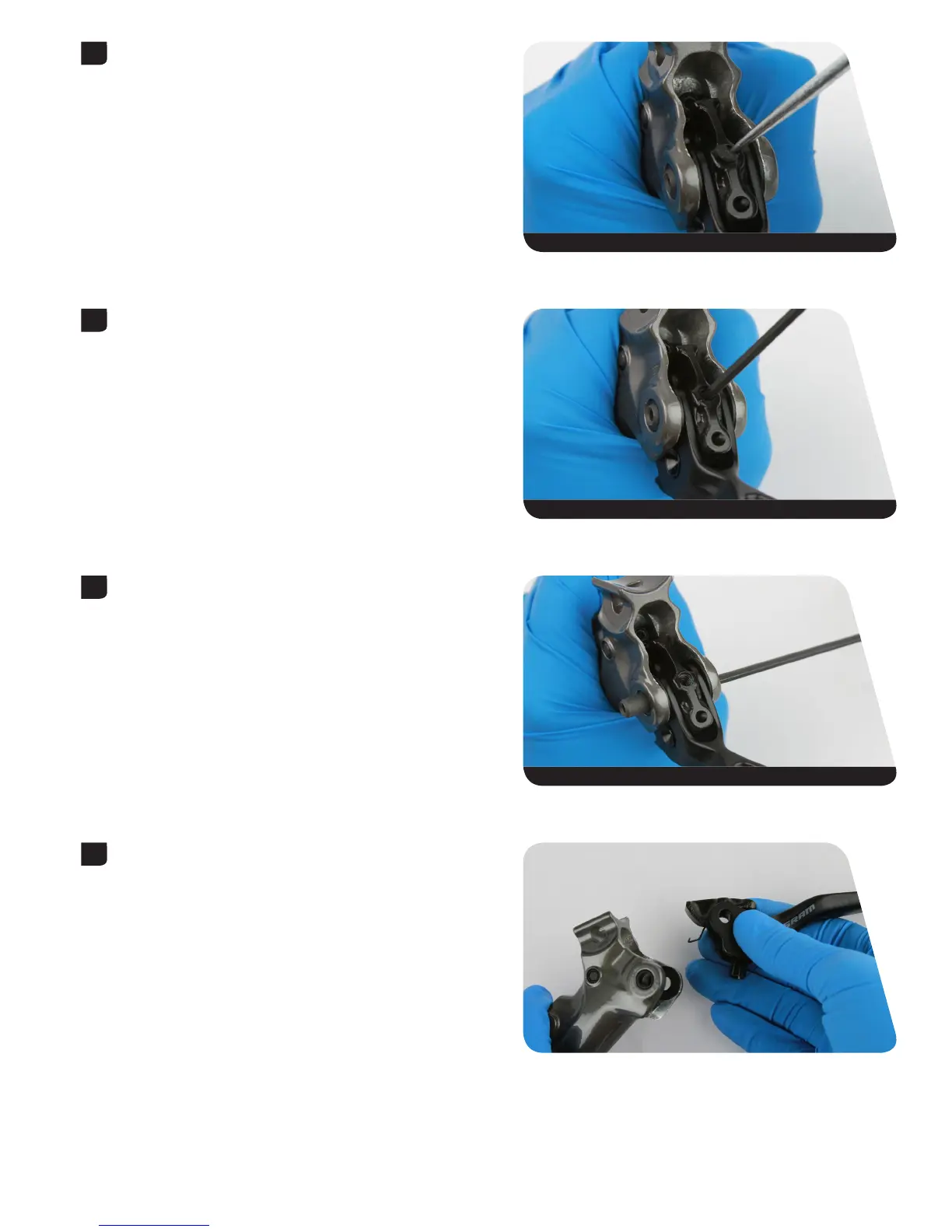

Remove the binder plug.
Remove the pinch bolt.
Use the T8 TORX wrench to push out the pivot pin.
Remove the lever blade from the lever body.
The R lever blade has four pieces, the lever blade, the cam/push rod
assembly, a washer, and the lever return spring. To hold all pieces
together you may reinstall the lever pivot pin and gently set aside.
Pick 15 N•m (133 in-lb) 22 mm
9
T8 TORX wrench 15 N•m (133 in-lb) 22 mm
10
11
T8 TORX wrench 15 N•m (133 in-lb) 22 mm
12

SRAM Guide RS Specifications

General

Brake Type	Hydraulic Disc
Lever Material	Aluminum
Caliper Design	2-Piston
Adjustment	Reach Adjust
Fluid Type	DOT 5.1
Pad Material	Organic
Caliper Material	Aluminum
Rotor Compatibility	CenterLine
Rotor Size	160mm, 180mm, 200mm
Weight	375g (Direct Mount, 800mm hose)
