SRAM Guide RS User Manual

8Caliper Brake Pad Removal
Caliper Brake Pad Removal
NOTICE
Brake pads must be replaced if the total thickness of the backing plate and pad friction material is less than 3 mm.
Use a T25 TORX
®
wrench to remove the brake caliper from the fork or
frame.
Remove the caliper mounting bracket and hardware from the caliper
then set them aside in the order that they were removed.

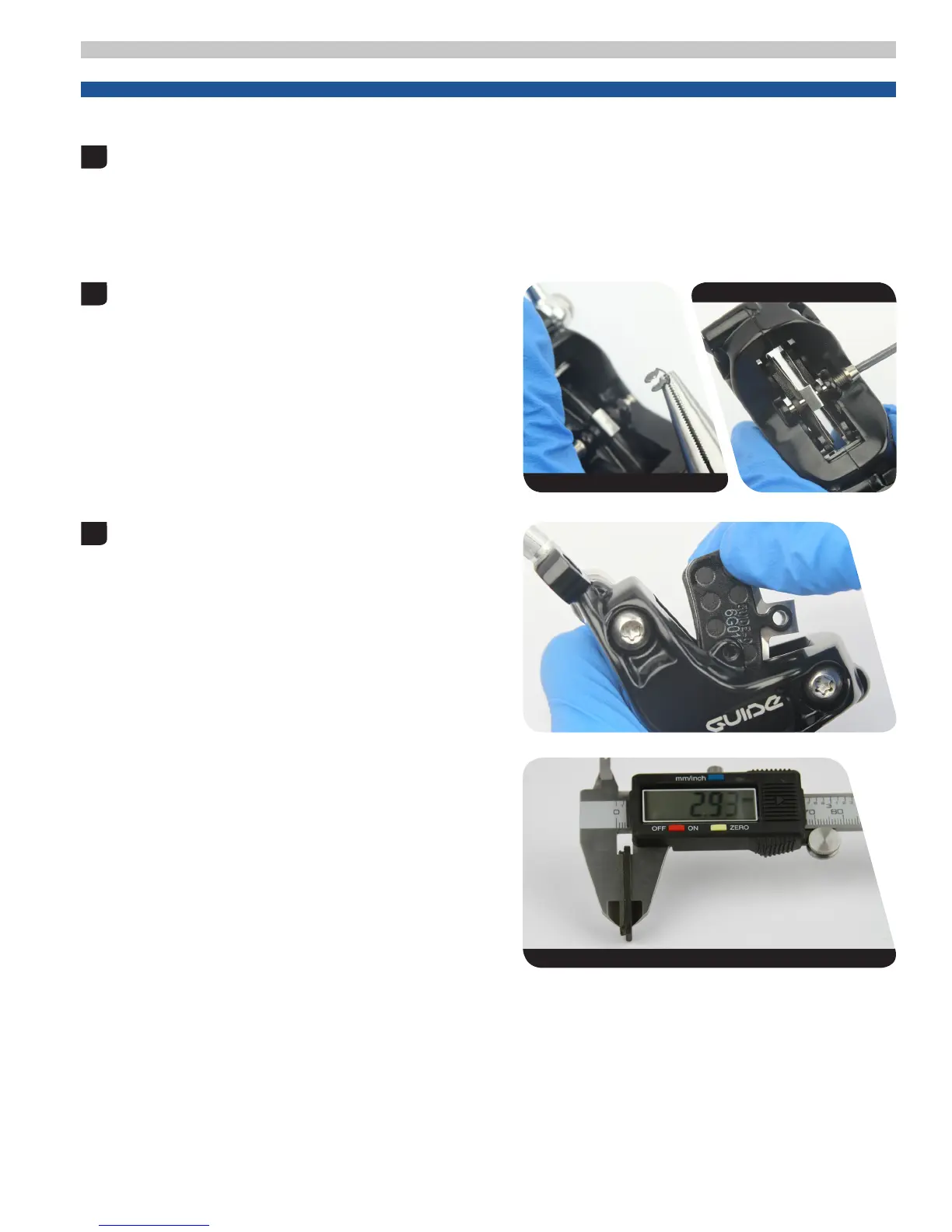

Remove the E-clip from the pad retention bolt.
Remove the pad retention bolt from the caliper.
Remove the brake pads and pad H-spring from the caliper.
1
2
Needle nose pliers 20 mm or 15 mm Thru Axle
2.5 mm hex wrench QR
3
Digital Caliper
2.7-3.2 N•m (24-28 in-lb) 22 mm

SRAM Guide RS Specifications

General

Brake Type	Hydraulic Disc
Lever Material	Aluminum
Caliper Design	2-Piston
Adjustment	Reach Adjust
Fluid Type	DOT 5.1
Pad Material	Organic
Caliper Material	Aluminum
Rotor Compatibility	CenterLine
Rotor Size	160mm, 180mm, 200mm
Weight	375g (Direct Mount, 800mm hose)
