SRAM Guide RS User Manual

15Guide RS Lever Exploded View
Lever Service
Parts and Tools Needed for Service
Parts
• Lever Internals Guide™ RS or
Lever Internals Guide R/RE/DB5
Safety and Protection Supplies
• Safety glasses
• Nitrile gloves
• Oil pan
• Clean, lint-free rag
Common Tools
• Pick with a 90 degree bent tip
• T8, T10, & T25 TORX® wrench
• T8 & T10 TORX bit socket
• 8 mm flare nut wrench
• 8 mm flare nut crowfoot wrench
• 2 mm & 4 mm hex wrench
• Needle nose pliers
• Torque wrench
Lubricants and Fluids
• Isopropyl alcohol
• 242® Blue Loctite®
• SRAM® High-Performance DOT 5.1 fluid. If SRAM fluid is not available,
only use DOT 5.1 or 4 fluid.
• SRAM or AVID DOT grease. If SRAM or AVID DOT grease is not
available only use a DOT compatible grease.

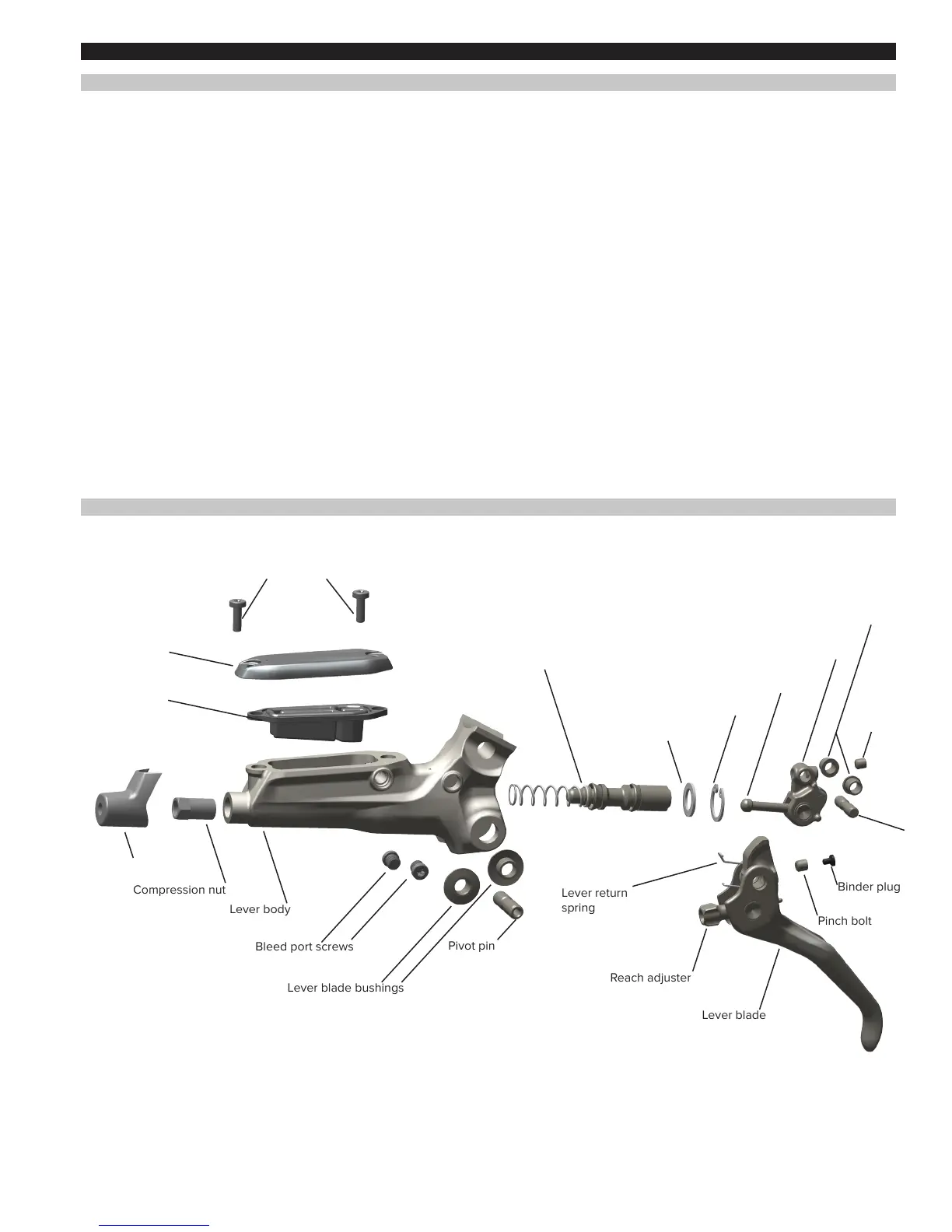

Guide RS Lever Exploded View
Compression nut
Lever blade bushings
Pivot pin
Binder plug
Pinch bolt
Lever blade
Lever body
Lever return
spring
Reach adjuster
Bleed port screws
Reservoir bolt
Reservoir cap
Bladder
Piston assembly
Washer
Snap ring
SwingLink
push rod
SwingLink
SwingLink
pivot
pinch bolt
SwingLink pivot pin
SwingLink bushings
Hose boot

SRAM Guide RS Specifications

General

Brake Type	Hydraulic Disc
Lever Material	Aluminum
Caliper Design	2-Piston
Adjustment	Reach Adjust
Fluid Type	DOT 5.1
Pad Material	Organic
Caliper Material	Aluminum
Rotor Compatibility	CenterLine
Rotor Size	160mm, 180mm, 200mm
Weight	375g (Direct Mount, 800mm hose)
