20Piston Assembly Removal
Piston Assembly Removal

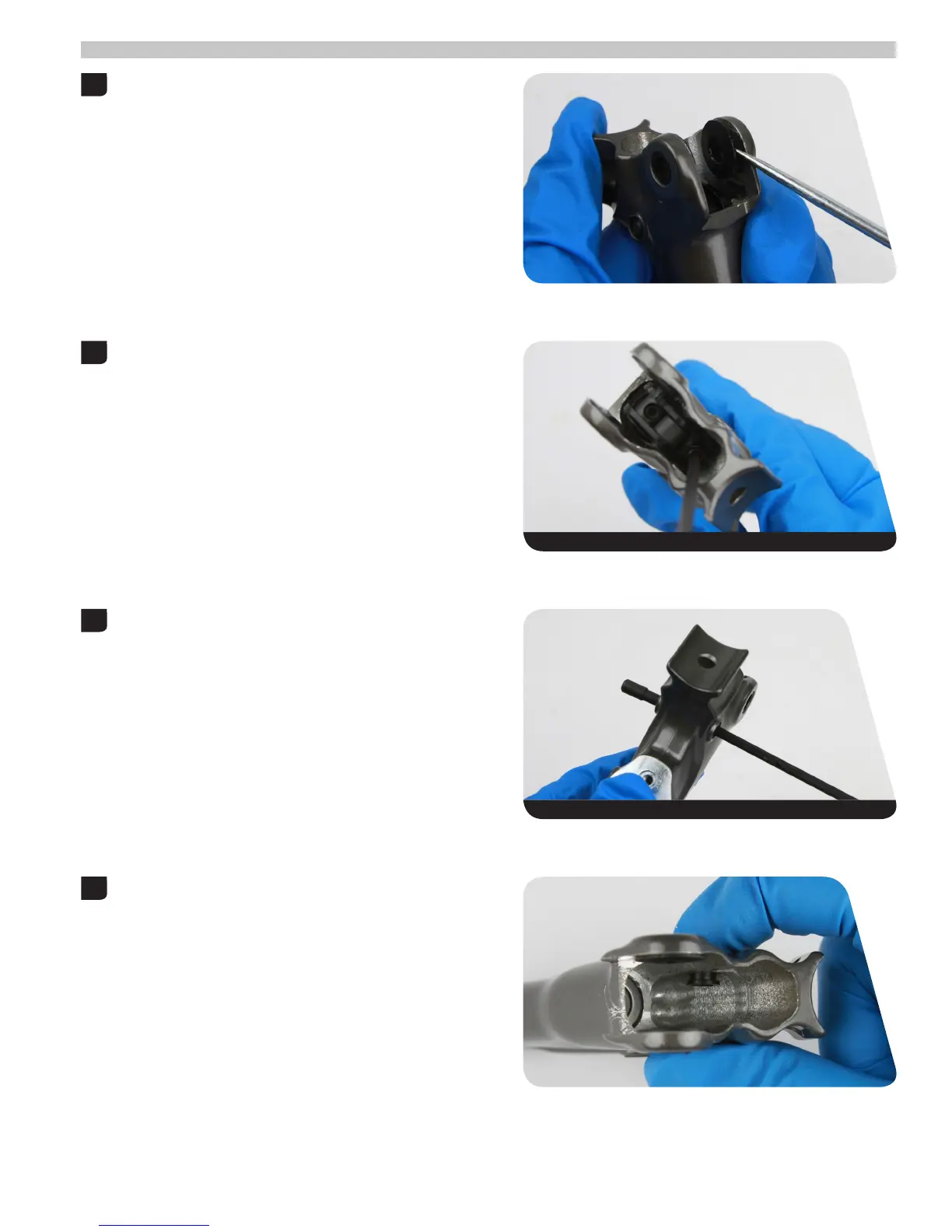

Use a pick to remove the lever blade bushings from both sides of the
lever.
RS only: Use a T8 TORX® wrench to remove the SwingLink™ pivot
pinch bolt.
RS only: Use a T8 TORX® wrench to push out the SwingLink pivot pin.
The SwingLink will fall out easily.
Remove the SwingLink bushings from both sides of the lever.
1
2
T8 TORX wrench 15 N•m (133 in-lb) 22 mm
3
T8 TORX wrench 15 N•m (133 in-lb) 22 mm
4
