7Caliper Service

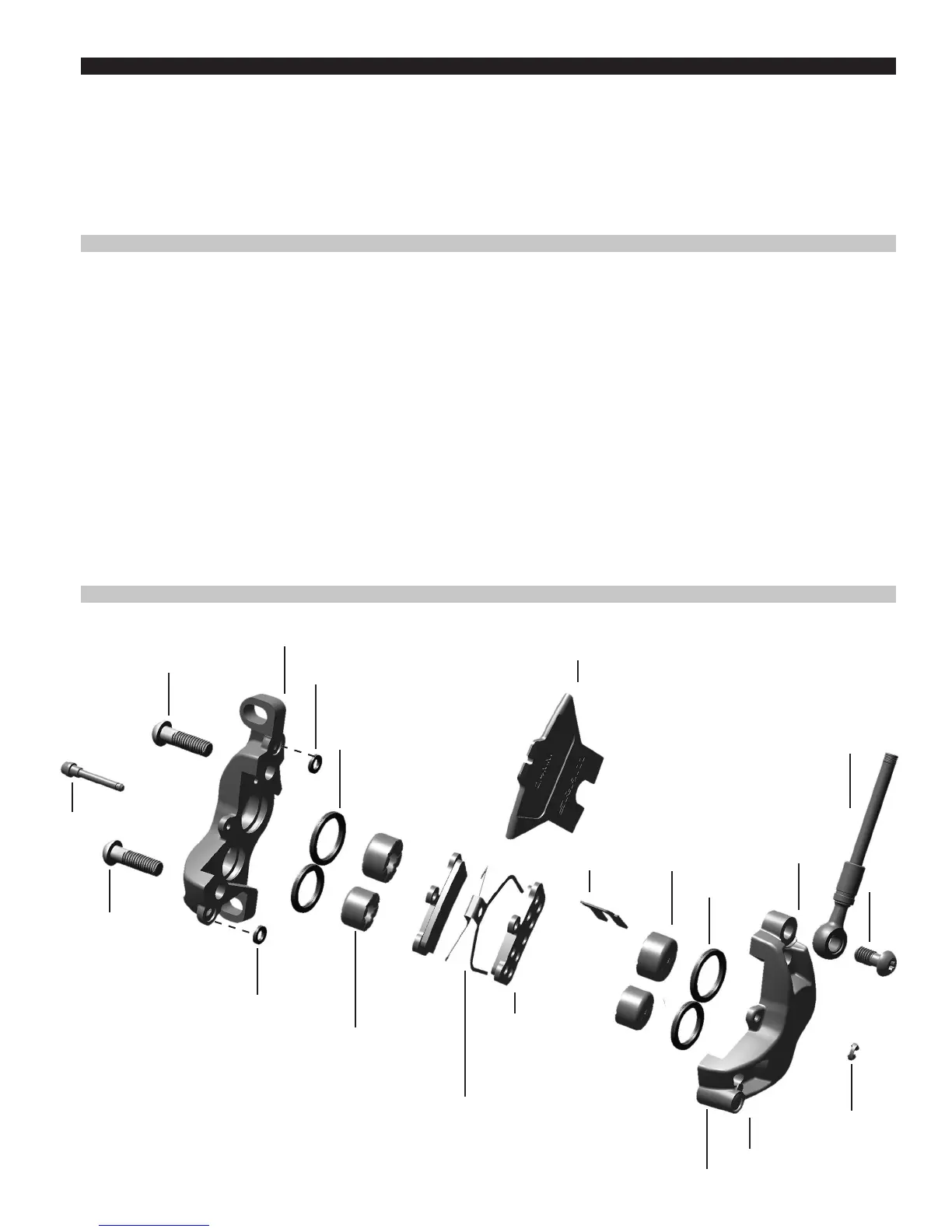

C aliper Exploded View
Caliper Service
We recommend that you have your SRAM® Guide™ Brakes serviced by a qualified bicycle mechanic. Servicing SRAM brakes requires knowledge of
brake components as well as the special tools and fluids used for service.
For exploded diagram and part number information, please refer to the Spare Parts Catalog available on our website at
sram.com/service. For order information, please contact your local SRAM distributor or dealer.
Information contained in this publication is subject to change at any time without prior notice. For the latest technical information, please visit our
website at sram.com/service.
Your product's appearance may dier from the pictures contained in this publication
P arts and Tools Needed for Service
Parts
• SRAM Guide Brake Pad Kit
• Caliper Piston Kit
Safety and Protection Supplies
• Safety glasses
• Nitrile gloves
• Oil pan
• Clean, lint-free rag
SRAM Tools
• SRAM Brake Bleed Kit (includes: Guide Bleed Block and Bleeding
Edge™ Fitting)
• Pad Spreader Tool (1.8 mm)- Guide/Trail Caliper
Common Tools
• 2.5 mm hex wrench
• Needle nose pliers
• Pick with a 90 degree bent tip
• T25 TORX® wrench
• T25 TORX bit socket
• Torque wrench
• Digital caliper
Lubricants and Fluids
• Isopropyl alcohol
• SRAM High-Performance DOT 5.1 fluid. If SRAM fluid is not
available, only use DOT 5.1 or 4 fluid.
• SRAM or AVID DOT grease. If SRAM or AVID DOT grease is not
available only use a DOT compatible grease.
E-clip
Banjo
fitting
Banjo
bolt
Caliper body
bolt
Caliper o-ring
Caliper
o-ring
Pad retention bolt
Inboard caliper body
Outboard caliper
body
Caliper pistons
Caliper pistons
Piston seals
Piston seals
Brake pads
Pad H-Spring
Bleed screw port
Caliper body
bolt
Heat
shield
Guide Pad Spreader
Banjo
To Next Page
