SRAM Guide RS User Manual

14Caliper Piston Installation

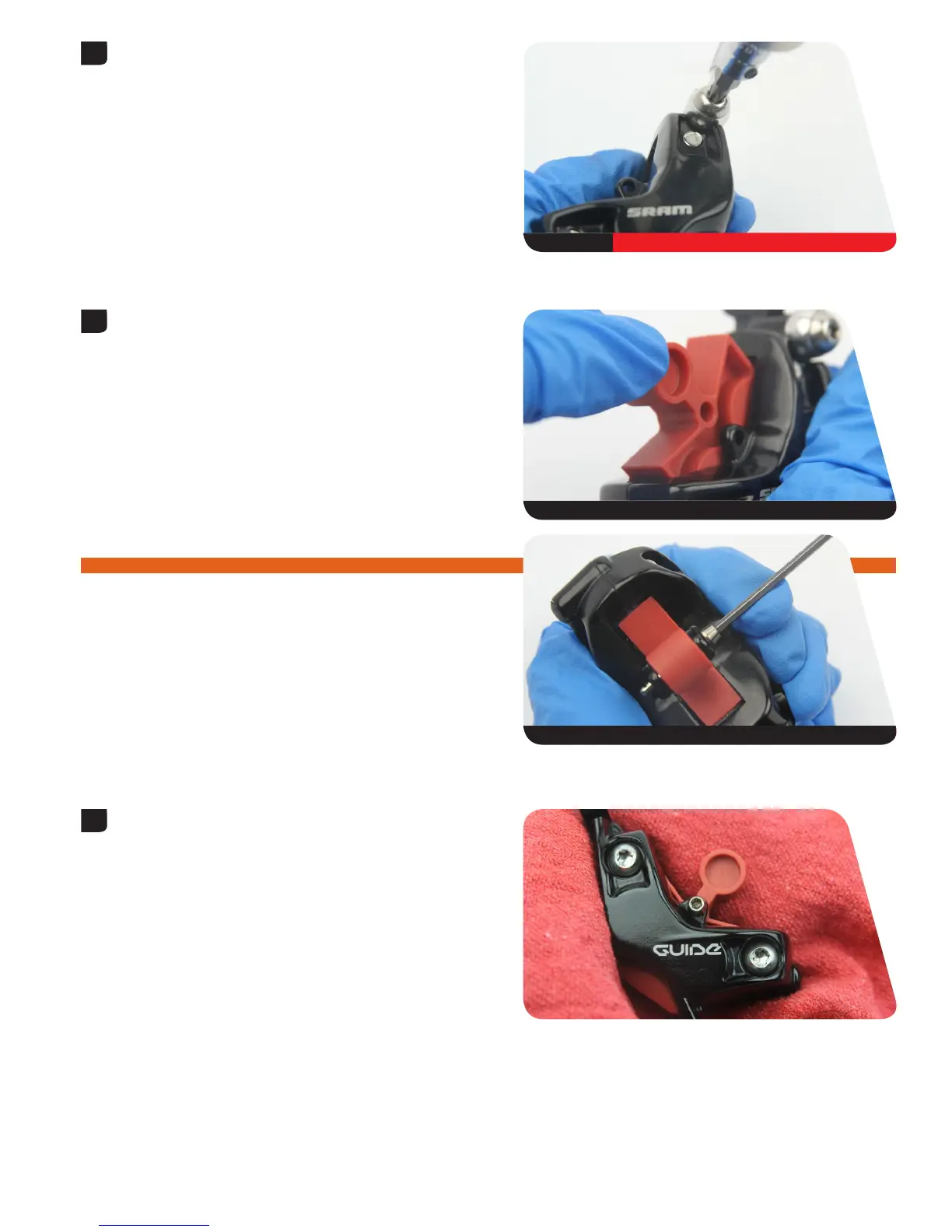

Hold the banjo at the desired angle.
Tighten the banjo bolt to 4.4-5.4 N·m (39-48 in-lb).
Insert the Guide™ bleed block into the caliper.
Install the pad retention bolt.
⚠ WARNING
You must bleed your brakes before reinstalling the brake pads.
Installing the brake pads prior to bleeding the brakes could
contaminate the brake pads and lead to a brake failure.
Spray isopropyl alcohol on the caliper and clean it with a rag.
Visually check your work. If any of the o-rings protrude from the banjo fitting or banjo bolt, remove and replace the o-rings, then repeat the installation
process.
7
T25 TORX bit 4.4-5.4 N·m (39-48 in-lb) 22 mm
7
8
Guide Bleed block 15 N•m (133 in-lb) 22 mm
2.5 mm hex wrench 15 N•m (133 in-lb) 22 mm
9

SRAM Guide RS Specifications

General

Brake Type	Hydraulic Disc
Lever Material	Aluminum
Caliper Design	2-Piston
Adjustment	Reach Adjust
Fluid Type	DOT 5.1
Pad Material	Organic
Caliper Material	Aluminum
Rotor Compatibility	CenterLine
Rotor Size	160mm, 180mm, 200mm
Weight	375g (Direct Mount, 800mm hose)
