SRAM Guide RS User Manual

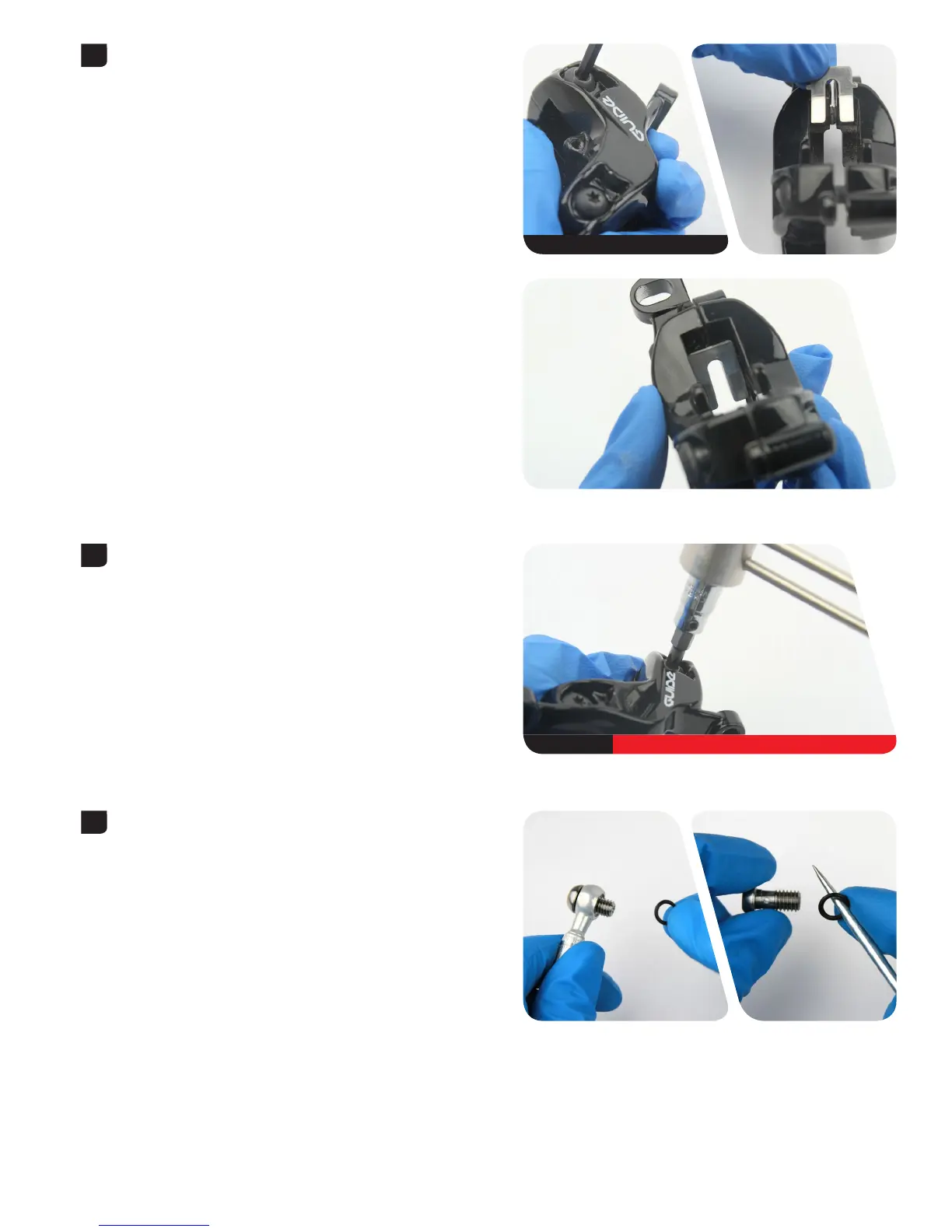

13Caliper Piston Installation
Align the caliper body halves then use a T25 TORX
®
wrench to thread
each body bolt into the caliper two full turns.
Install the heat shield.
Tighten each bolt to 9.8 - 11.8 N·m (87 - 104 in-lb).
Remove the o-rings from the banjo bolt and banjo fitting.
Apply a small amount of SRAM High-Performance DOT 5.1 fluid to the
new o-rings and install them.
T25 TORX 20 mm or 15 mm Thru Axle
4
5
T25 TORX bit 9.5 - 11.8 N·m (87 - 104 in-lb) 22 mm
6

SRAM Guide RS Specifications

General

Brake Type	Hydraulic Disc
Lever Material	Aluminum
Caliper Design	2-Piston
Adjustment	Reach Adjust
Fluid Type	DOT 5.1
Pad Material	Organic
Caliper Material	Aluminum
Rotor Compatibility	CenterLine
Rotor Size	160mm, 180mm, 200mm
Weight	375g (Direct Mount, 800mm hose)
