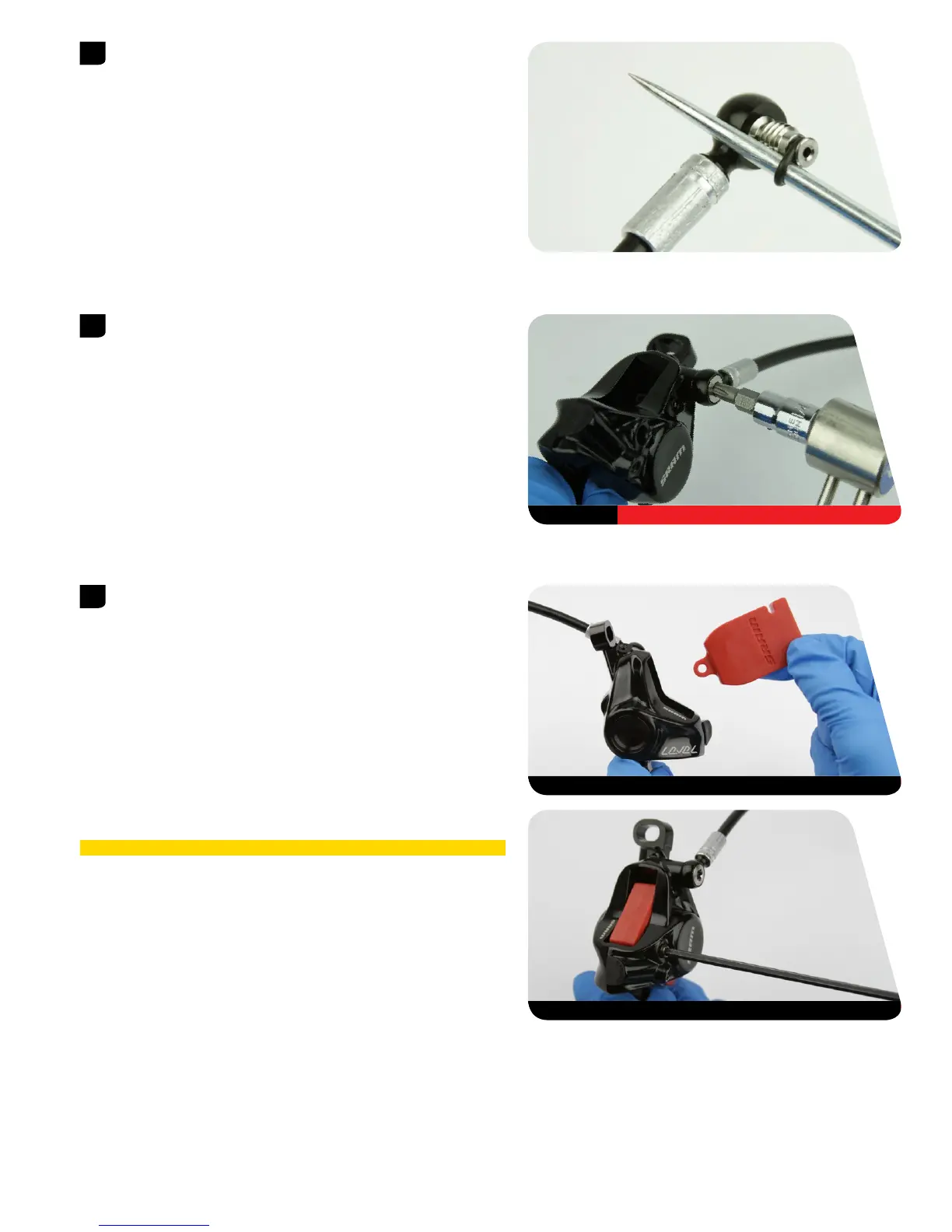

14Caliper Piston Installation
Remove the o-ring from the banjo bolt.
Apply a small amount of SRAM DOT 5.1 fluid to the new o-rings and
install them.
Use a torque wrench with a T25 TORX
®
bit socket to tighten the bolt to
4.4-5.4 N·m (39-48 in-lb).
The angle of the hose and banjo may be adjusted by loosening the
banjo bolt, adjusting it to the desired position, and then retightening the
banjo bolt to 4.4-5.4 N·m (39-48 in-lb).
Insert the Level™ bleed block into the caliper.
Use a 2.5 mm hex wrench to insert the pad retention bolt
⚠ CAUTION
You must bleed your brakes before reinstalling the brake pads.
Installing the brake pads prior to bleeding the brakes could contaminate
the brake pads and could lead to a brake failure.
2
3
T25 Torx bit 4.4-5.4 N·m (39-48 in-lb) 22 mm
4
Bleed block 15 N•m (133 in-lb) 22 mm
2.5 mm hex wrench 15 N•m (133 in-lb) 22 mm
