16SRAM Level™ TL Caliper Service
SRAM Level™ TL Caliper Service
Parts and Tools Needed for Service
• Safety glasses
• Nitrile gloves
• Flare nut crowfoot socket and wrench
• SRAM DOT 5.1 fluid
If SRAM fluid is not available, only use DOT 5.1 or 4 fluid.
• Oil pan
• Flat blade screwdriver
• Torque wrench
• Air compressor with a rubber-tipped chuck nozzle
• 5 mm hex bit socket
• 2.5 mm and 5 mm hex wrenches
• Pick
• Clean, lint-free shop towel
• Isopropyl alcohol
• Soft rubber or piece of inner tube

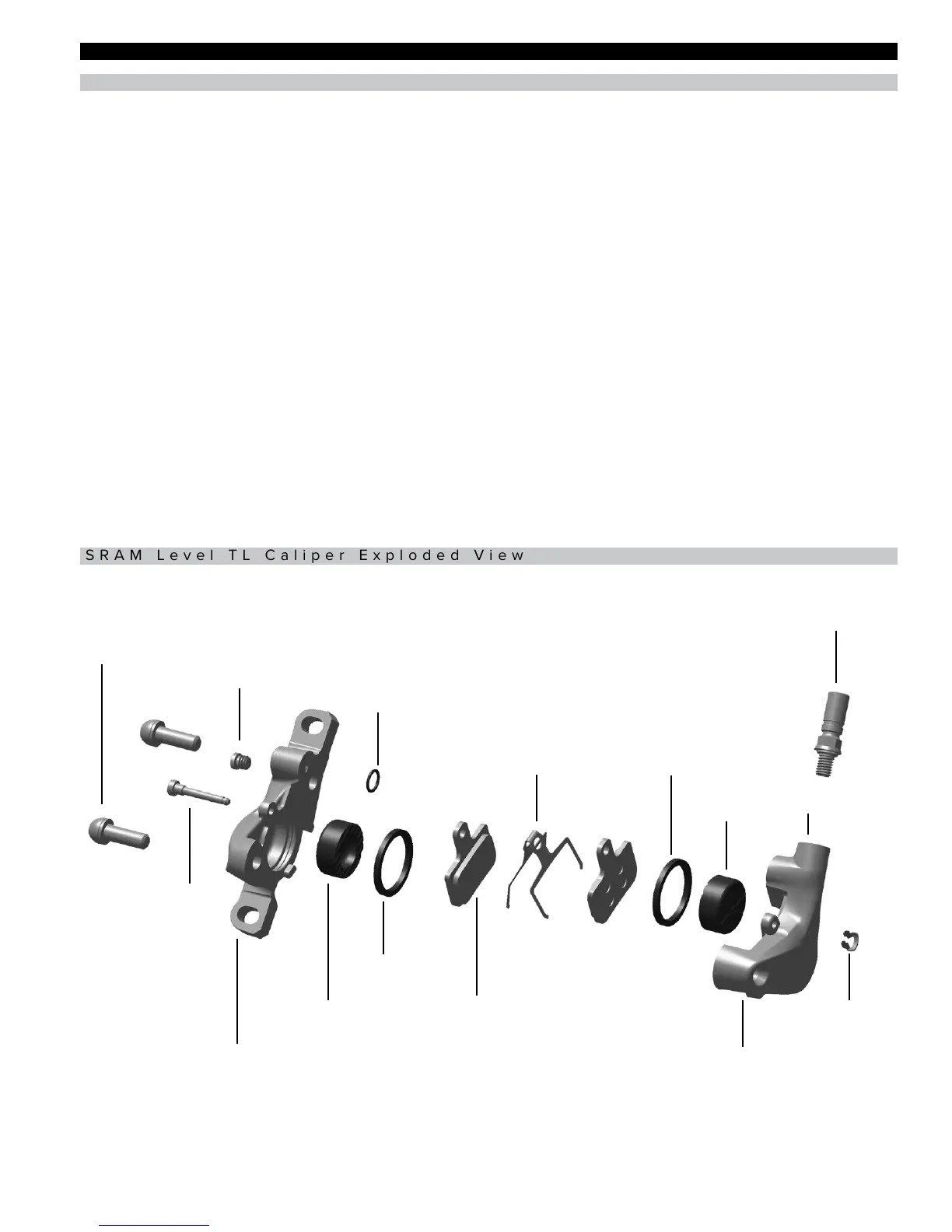

SRAM Level TL Caliper Exploded View
Caliper piston
Caliper
piston
Piston seal
Piston seal
Caliper body bolt
Caliper o-ring
Pad Spreader
Brake pad
E-clip
Outboard caliper body
Inboard caliper body
Pad pin
Bleed screw
Crimped hose fitting
Caliper hose
port
