SRAM level ultimate - Lever Blade Installation

33Lever Blade Installation

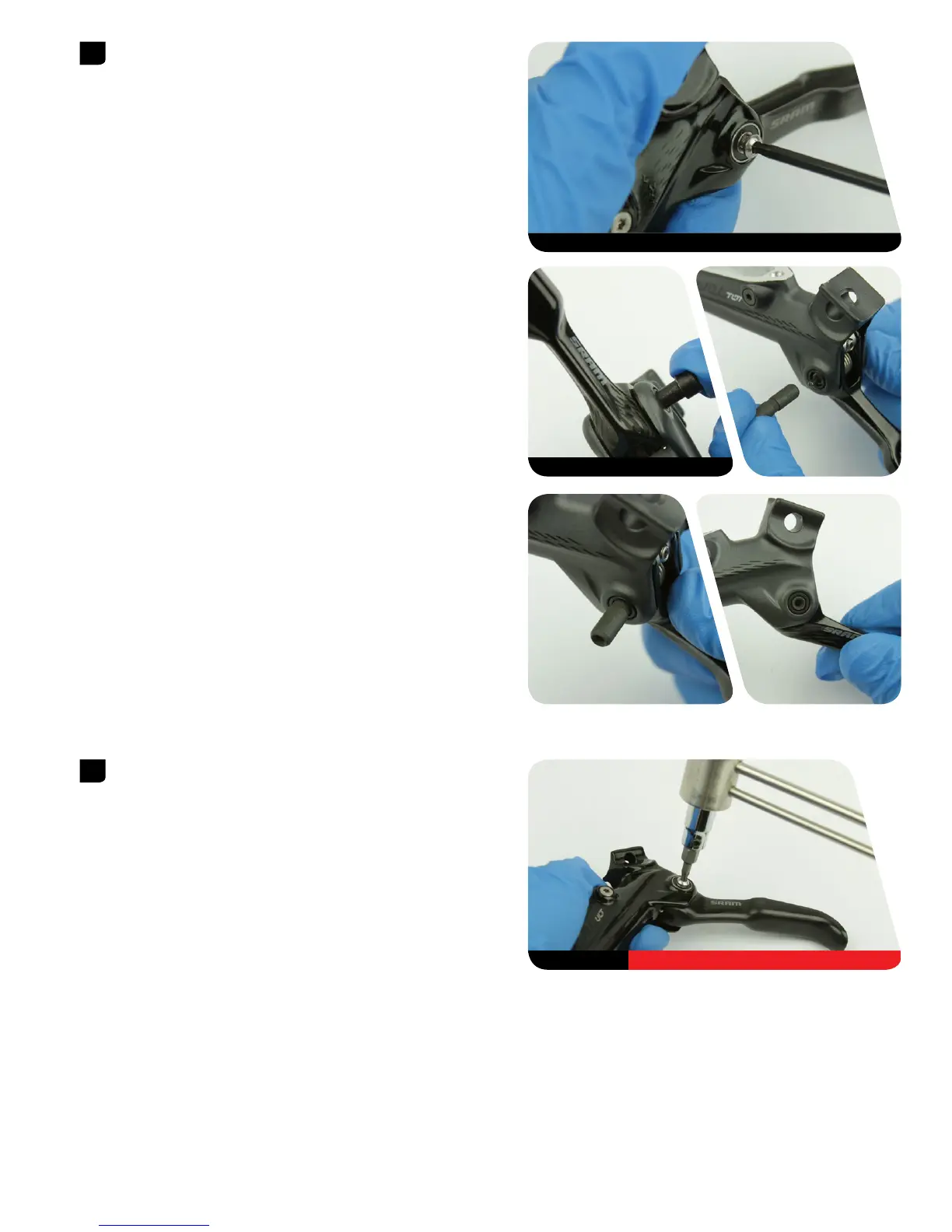

Ultimate: Make sure the holes in the spring, bushing, and lever blade
align with the pivot bolt hols in the lever body.
Use a T10 TORX
®
wrench to thread each new pivot bolt into the
bearings on each side of the lever body until they are hand tight.
TLM/TL: Insert the pin on the AM SRAM TOOL LEVER PIVOT Tool
through the lever body bushings, lever spring, and the spring bushing.
Insert the pin on the AM SRAM TOOL LEVER PIVOT Tool onto the pivot
pin.
Push the pivot pin through the lever body so that it is flush with the
lever body on both sides.
Remove the pivot pin tool.
Ultimate: Use a torque wrench and a T10 TORX
®
bit socket to tighten
each pivot bolt to 1.1-1.3 N·m (10-12 in-lb).
4
T10 TORX wrench 15 N•m (133 in-lb) 22 mm
AM SRAM TOOL LEVER PIVOT Tool 20 mm or 15 mm Thru Axle
T10 TORX bit 1.1-1.3 N•m (10-12 in-lb) 22 mm
5
