Lever Blade Removal
NOTICE
DOT fluid will damage painted surfaces. If any fluid comes in contact with a painted surface (i.e. your frame) or printing on the brakes, wipe it off
immediately and clean it with isopropyl alcohol or water. Damage to painted and/or printed surfaces by DOT fluid is not covered under warranty.

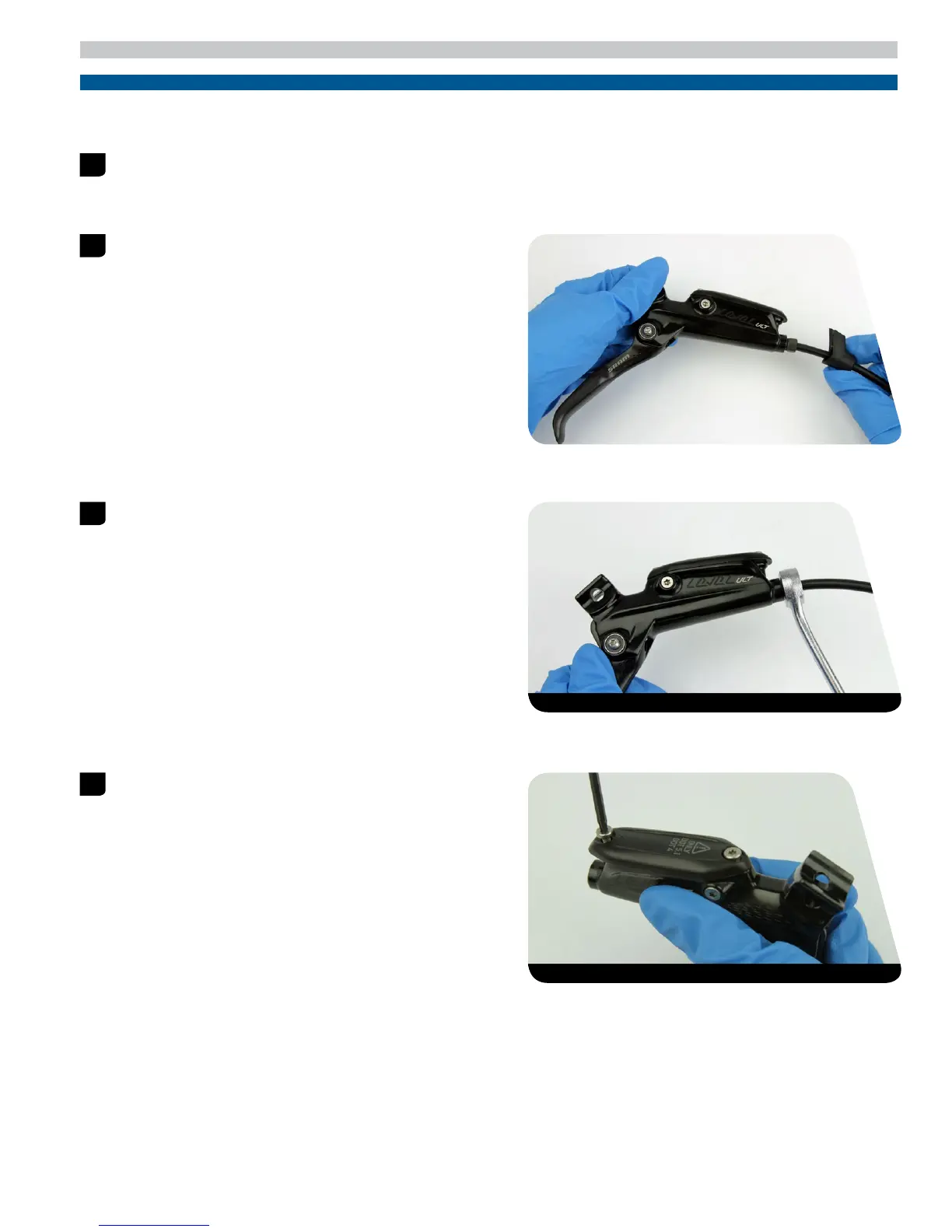

Use a T25 TORX
®
wrench or a 4 mm hex wrench to remove the brake
clamp bolt from the discrete clamp, MMX, or XLoc™
(XLoc requires removal of the shifter) and remove the brake lever from
the handlebar.
Pull the hose boot away from the brake body to expose the
compression nut, then slide the boot down the brake hose.
Use an 8 mm flare nut crowfoot wrench to unthread the hose
compression nut, then pull the brake hose and compression fitting from
the brake lever body.
Use a T10 TORX
®
wrench to remove the reservoir cap bolts from the
reservoir cap.
1
2
8 mm flare nut crowfoot wrench 15 N•m (133 in-lb) 22 mm
3
4
T10 TORX wrench 15 N•m (133 in-lb) 22 mm
