7SRAM Level™ Ultimate & TLM Caliper Service
SRAM Level™ Ultimate & TLM Caliper Service
We recommend that you have your SRAM Level brakes serviced by a qualified bicycle mechanic. Servicing SRAM brakes requires knowledge of brake
components as well as the special tools and fluids used for service.
For exploded diagram and part number information, please refer to the Spare Parts Catalog available on our website at
sram.com/service. For order information, please contact your local SRAM distributor or dealer.
Information contained in this publication is subject to change at any time without prior notice. For the latest technical information, please visit our
website at sram.com/service.
Your product's appearance may dier from the pictures contained in this publication
P arts and Tools Needed for Service
• Safety glasses
• Nitrile gloves
• Oil pan
• Isopropyl alcohol
• Level bleed block
• SRAM monoblock caliper 21 mm piston removal tool
• Digital caliper
• SRAM DOT 5.1 Fluid
If SRAM fluid is not available, only use DOT 5.1 or 4 fluid
• 8mm Flare nut crowfoot wrench
• Pick
• T8 & T25 TORX
®
wrenchs
• T25 TORX bit socket
• Torque wrench
• 2.5 mm hex wrench
• Clean, lint-free shop towel
• Level pad spreader
• Air compressor with a rubber-tipped chuck nozzle
• Soft rubber or piece of inner tube
• Level pad spreader

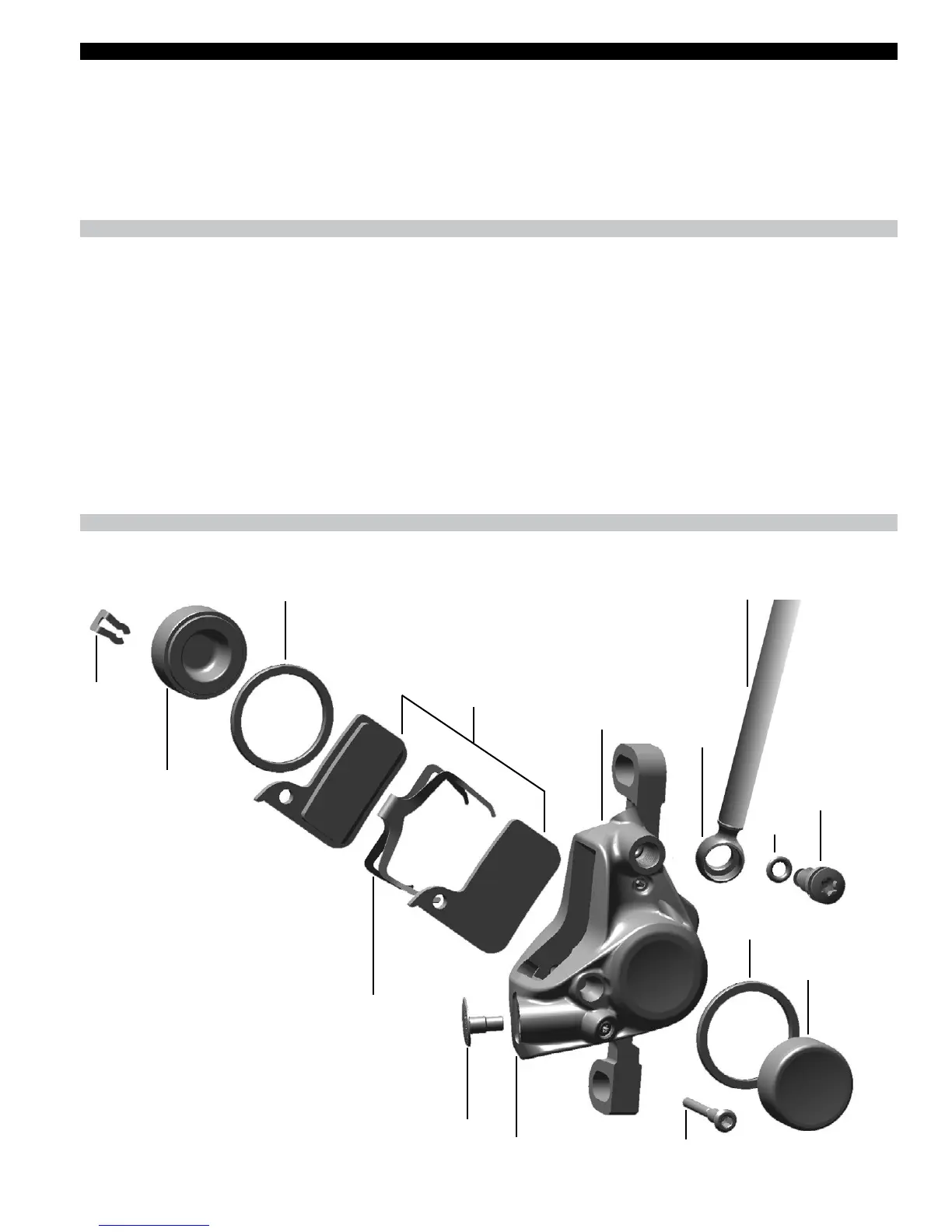

Level C aliper Exploded View
E-clip
Banjo
o-ring
Banjo
bolt
Pad retention bolt
Caliper piston
Caliper piston
Piston seal
Piston seal
Brake pads
H-spring
Bleed port
Banjo
Bleed
port
plug
Caliper
Hose
