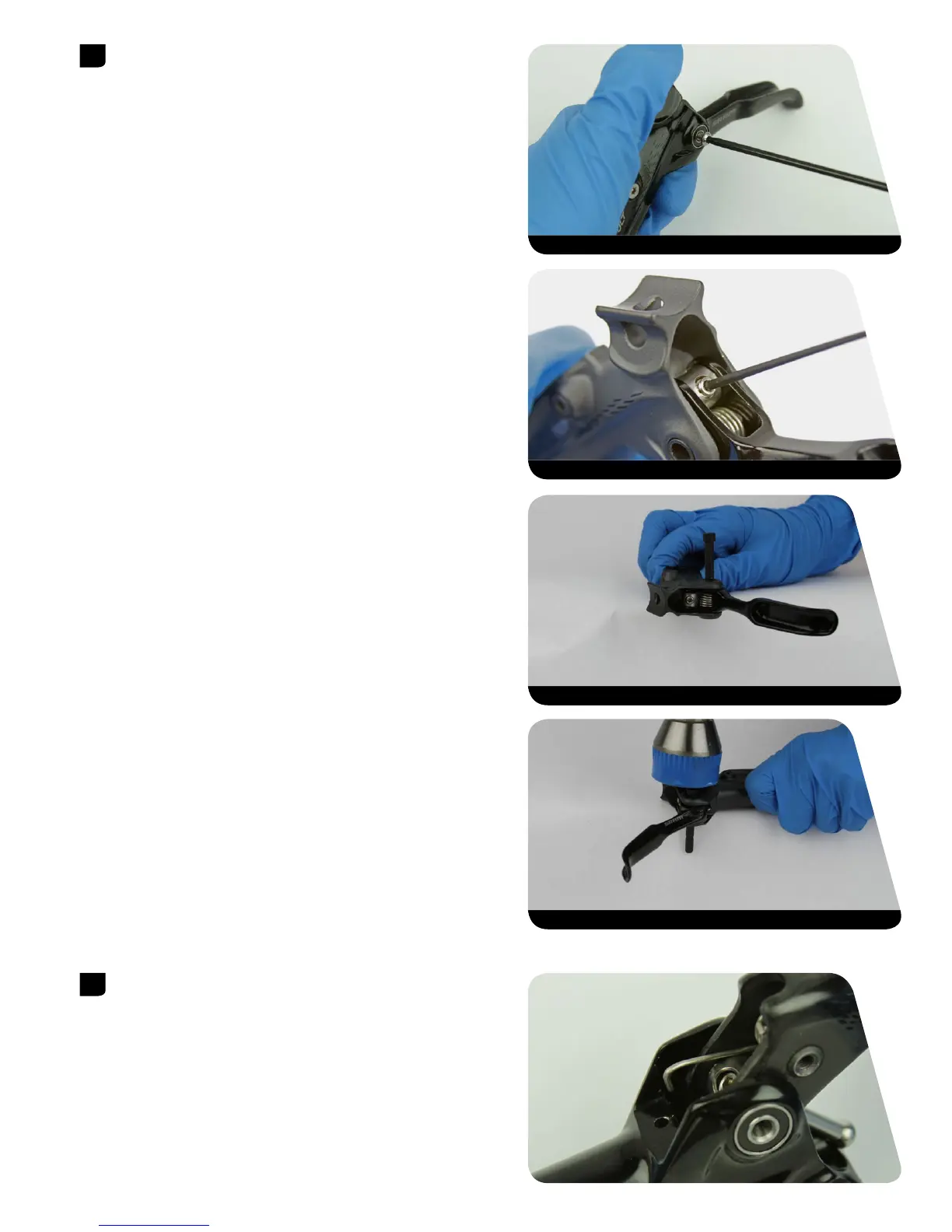

28Lever Blade Removal
Ultimate: Use a T10 TORX
®
wrench to remove each lever pivot bolt.
TLM/TL: Use a 2 mm hex wrench to rotate the reach adjust counter-
clockwise and set the reach adjust position to the minimum setting.
TLM/TL: Place the lever body on the edge of a table, allowing the pivot
pin to hang o of the side of the table, then insert the SRAM aftermarket
lever pivot tool into the pivot pin slot.
TLM/TL: Use a plastic mallet to tap the pivot pin until it dislodges from
the lever body completely.
Remove the inboard spring from the spring hole.
