Air Spring Service
Air Spring Service
⚠ WARNING EYE HAZARD
Verify all pressure is removed from the fork before proceeding. Depress the schrader valve again to remove any remaining air pressure. Failure to
do so can result in injury and/or damage to the fork.
Travel Change Adjustment - Optional
To increase or decrease the travel in your Rudy fork, the air spring must be replaced with the correct length air spring shaft assembly. Refer to the
RockShox Spare Parts Catalog available on our website at www.sram.com/service for spare part kit details.

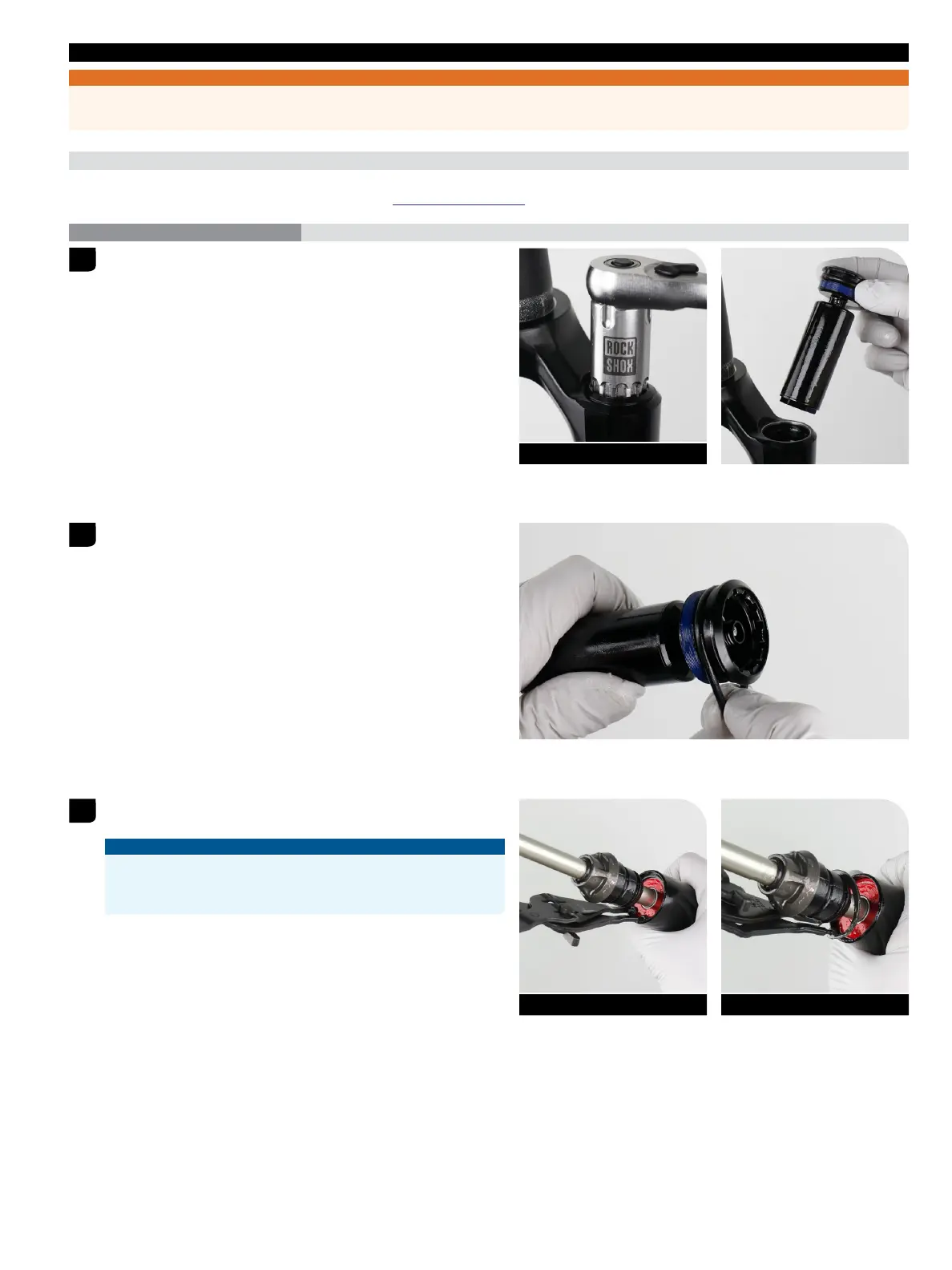

200 Hour Service Solo Air Spring Service
Remove the top cap.Remove the top cap.
Remove the top cap o-ring. Install a new o-ring. Remove the top cap o-ring. Install a new o-ring.
Do not apply grease to the top cap threads.Do not apply grease to the top cap threads.
Place the tips of large retaining ring pliers into the eyelets of the Place the tips of large retaining ring pliers into the eyelets of the
retaining ring, and remove the retaining ring. retaining ring, and remove the retaining ring.
NOTICE
Do not scratch the air shaft while removing the retaining ring.
Scratches on the air shaft will allow air to bypass the seal head into
the lower leg. Scratches can result in reduced spring performance.
Top Cap/Cassette Tool
1
2
3
Retaining Ring Pliers Retaining Ring Pliers
