CABINET INSTALLATION INSTRUCTIONS

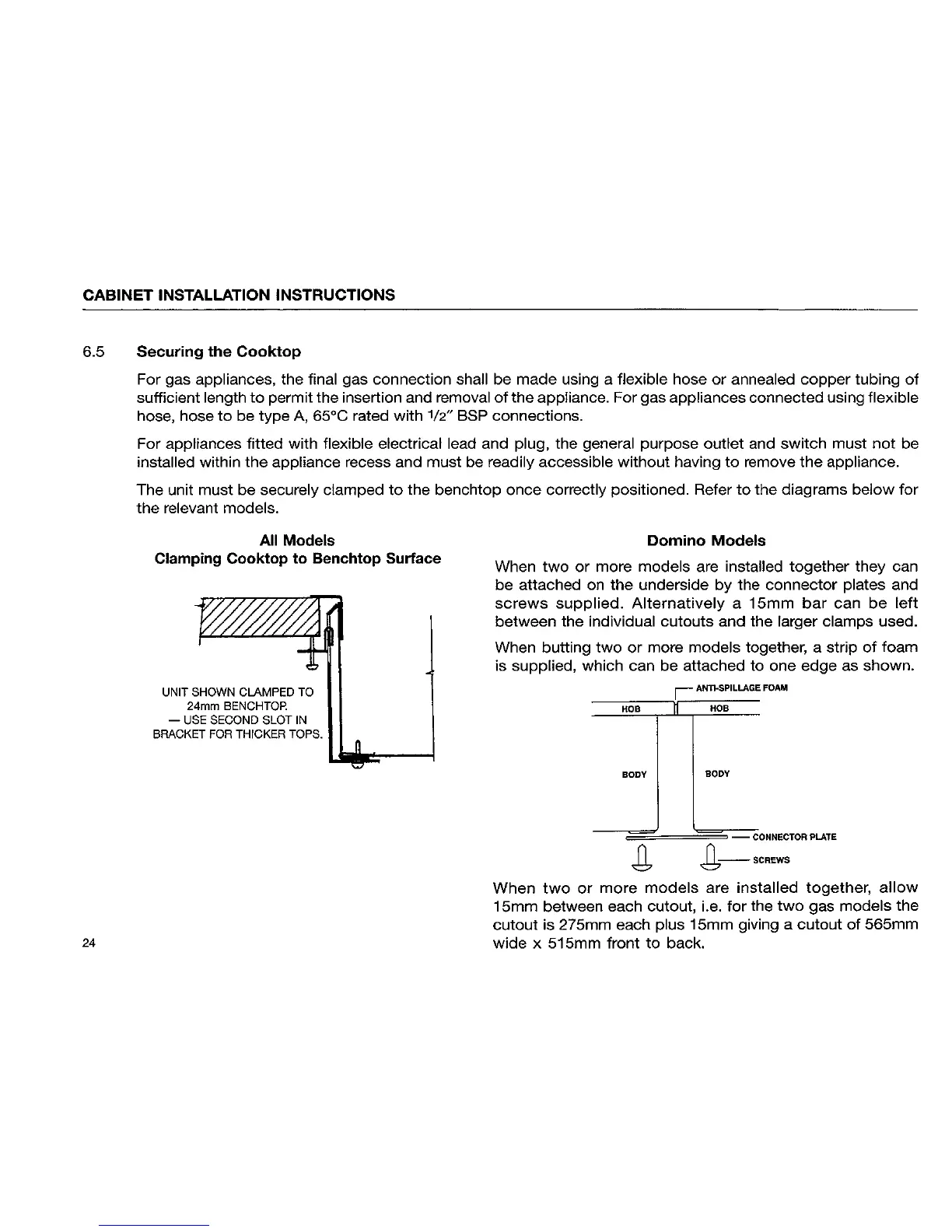

6.5 Securing the Cooktop
For gas appliances, the final gas connection shall be made
using a flexible hose or annealed copper tubing of
sufficient
length to permit the insertion and removal of the appliance. For gas appliances connected using
flexible
hose, hose to be type A, 651C rated with 1/2" BSP connections.
For appliances fitted with flexible electrical lead and plug, the general
purpose outlet and switch must not be
installed within the appliance recess and must be readily accessible without having
to remove the appliance.
The unit must
be securely clamped to the benchtop once correctly positioned. Refer to the diagrams
below for
the relevant models.
All Models Domino
Models
Clamping Cooktop to Benchtop Surface When
two or more models are installed together they can
be attached
on the underside by the connector plates and
screws supplied. Alternatively a 15mm bar can be left
between the individual cutouts
and the larger clamps used.
When butting two or more models together, a strip of foam
is supplied, which can be attached to one edge as shown.
UNIT SHOWN
CLAMPED TO ANil-SPILLAGE
FOAM
24mm BENCHTOP.
HOE NOS
- USE SECOND SLOT IN
BRACKET FOR THICKER
TOPS.
BODY BODY
__________ __ _ - CONNECTOR PLATE
la a SCREWS
When two or more models are installed together, allow
15mm between each cutout, i.e. for the two gas models the
cutout is 275mm each plus 15mm giving a cutout of 565mm
24
wide x 51 5mm front to back.
