ELECTRICAL
CONNECTION
INSTRUCTIONS

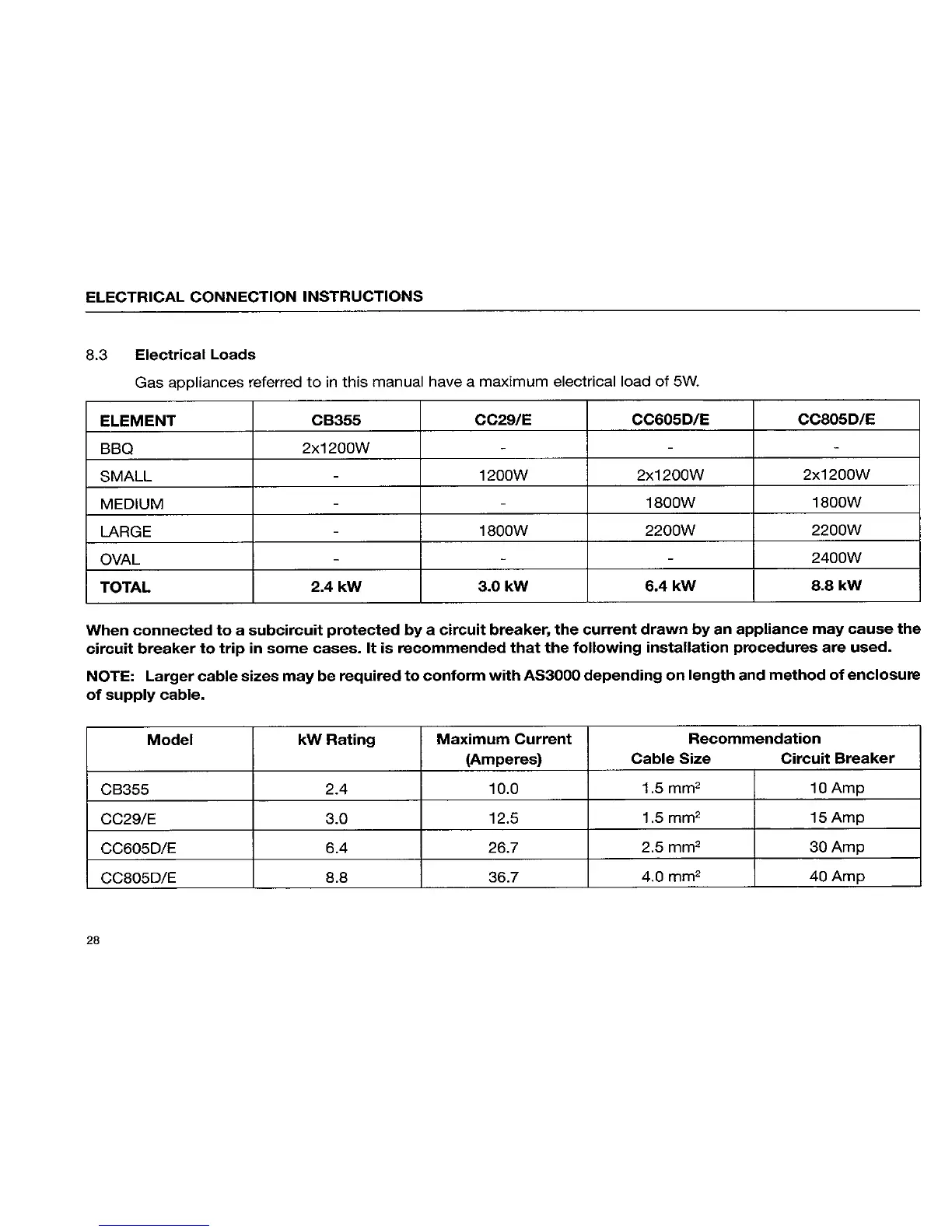

8.3 Electrical Loads
Gas appliances referred
to in this manual
have a maximum
electrical load of
5W.
ELEMENT
CB355
CC29/E
CC605D/E
CC805D/E
BBQ
2x1 200W
SMALL
_________1200W
2x1 200W
2x1 200W
MEDIUM
_________1800W
1800W
LARGE
_________1800W
2200W
2200W
OVAL
__
_ _ _ _ _ _
_ _ _ _ _ _
_ _ _ _ _ _
_ _ _ _ _2400W
TOTAL
2.4 kW
3.0 kW
6.4 kW
8.8 kW
When
connected to a subcircuit
protected
by a circuit breaker,
the current
drawn by an appliance
may cause
the
circuit
breaker to trip
in some cases.
It is recommended
that the following
installation
procedures are used.
NOTE: Larger
cable sizes may
be required to conform
with AS3000
depending on
length and method
of enclosure
of supply cable.
Model
kW Rating
Maximum
Current
Recommendation
______
_____
_____
______ _____
_____ (Amperes)
Cable Size
Circuit Breaker
CB355
2.4
10.0
1.5
mm
2
10 Amp
CC29/E
3.0
12.5
1.5 mm
2
15 Amp
CC605D/E
6.4
26.7
2.5 mm
2
30 Amp
CC805D/E
8.8
36.7
4.0 mm
2
40 Amp
28
