St George CC29/E - ELECTRICAL CONNECTION INSTRUCTIONS Wiring Rules and Warnings; Voltage Supply Connection

ELECTRICAL
CONNECTION
INSTRUCTIONS

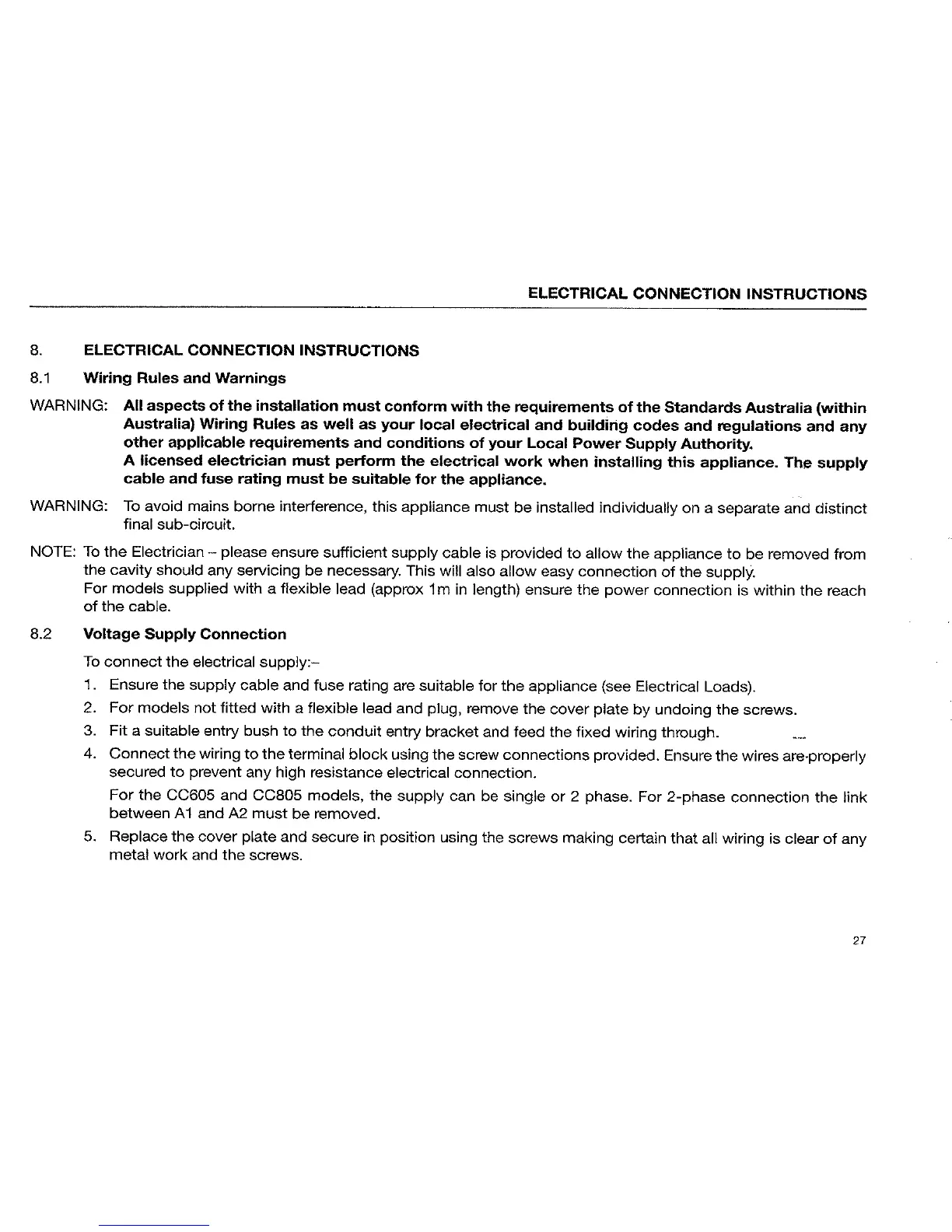

8.
ELECTRICAL
CONNECTION
INSTRUCTIONS
8.1 Wiring
Rules
and
Warnings
WARNING:
All
aspects
of the
installation
must
conform
with
the requirements
of
the Standards
Australia
(within
Australia)
Wiring
Rules
as
well as
your local
electrical
and
building
codes
and
regulations
and any
other
applicable
requirements
and conditions
of your
Local
Power
Supply
Authority.
A
licensed
electrician
must
perform
the
electrical
work
when
installing
this
appliance.
The
supply
cable
and
fuse
rating must
be
suitable
for the
appliance.
WARNING:
To
avoid mains
borne
interference,
this appliance
must be
installed
individually
on
a separate
and
distinct
final
sub-circuit.
NOTE:
To
the Electrician
-please
ensure sufficient
supply
cable is
provided
to allow
the appliance
to be removed
from
the
cavity
should
any servicing
be
necessary.
This
will also
allow
easy
connection
of the
supply.
For models
supplied
with
a flexible
lead
(approx
I m in length)
ensure
the
power
connection
is within
the
reach
of the
cable.
8.2
Voltage
Supply
Connection
To connect
the electrical
supply:-
1 .Ensure
the
supply
cable and
fuse
rating are
suitable
for the
appliance
(see
Electrical
Loads).
2. For
models
not fitted
with
a flexible
lead
and plug,
remove
the cover
plate
by undoing
the screws.
3. Fit
a suitable
entry
bush to
the conduit
entry
bracket
and
feed the
fixed wiring
through.
4.
Connect
the wiring
to
the terminal
block
using
the screw
connections
provided.
Ensure
the wires
are-properly
secured
to
prevent
any high
resistance
electrical
connection.
For
the 00605
and
00805
models,
the supply
can
be single
or 2
phase.
For 2-phase
connection
the link
between
Al
and A2
must be
removed.
5.
Replace
the
cover plate
and
secure
in position
using
the screws
making
certain
that
all wiring
is clear
of any
metal
work
and the
screws.
27
