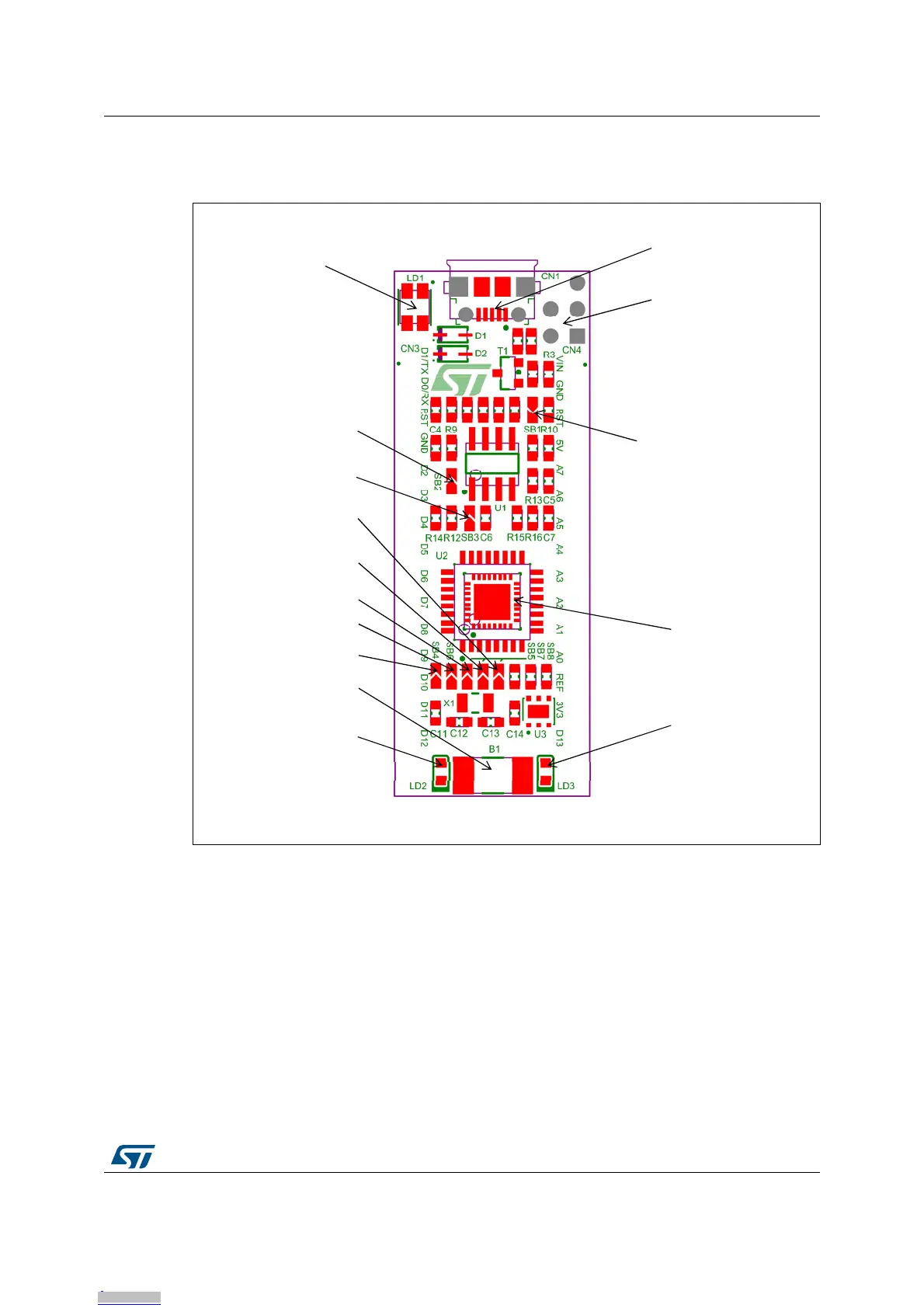

ST NUCLEO-F031K6 - Figure 3. STM32 Nucleo-32 Board Top Layout; STM32 Nucleo-32 Board Layout

UM1956 Rev 4 11/35
UM1956 Hardware layout and configuration
34
6.1 STM32 Nucleo-32 board layout
Figure 3.
U2
STM32
Microcontroller
CN1
ST-LINK Micro B
USB connector
LD1
(Red/Green LED)
COM
LD2
(
Red LED
)
Power
B1
Reset Button
LD3
(
Green LED
)
CN2
ST-LINK SWD
connector
(reserved)
SB1
Power confi
g
uration
SB2
Connect VCP TX to ST-LINK
SB3
Connect VCP RX to ST-LINK
SB4
Connect PF0/PC14 to MCO
SB6
Connect PF0/PC14 to D8
SB5
Co
nn
ect
PF
0/
P
C
14
to
X1
SB7
Connect PF1/PC15 to X1
SB8
Connect PF1/PC15 to D7
STM32 Nucleo-32 board top layout
