Hardware layout and configuration UM1724

34/55 DocID025833 Rev 4

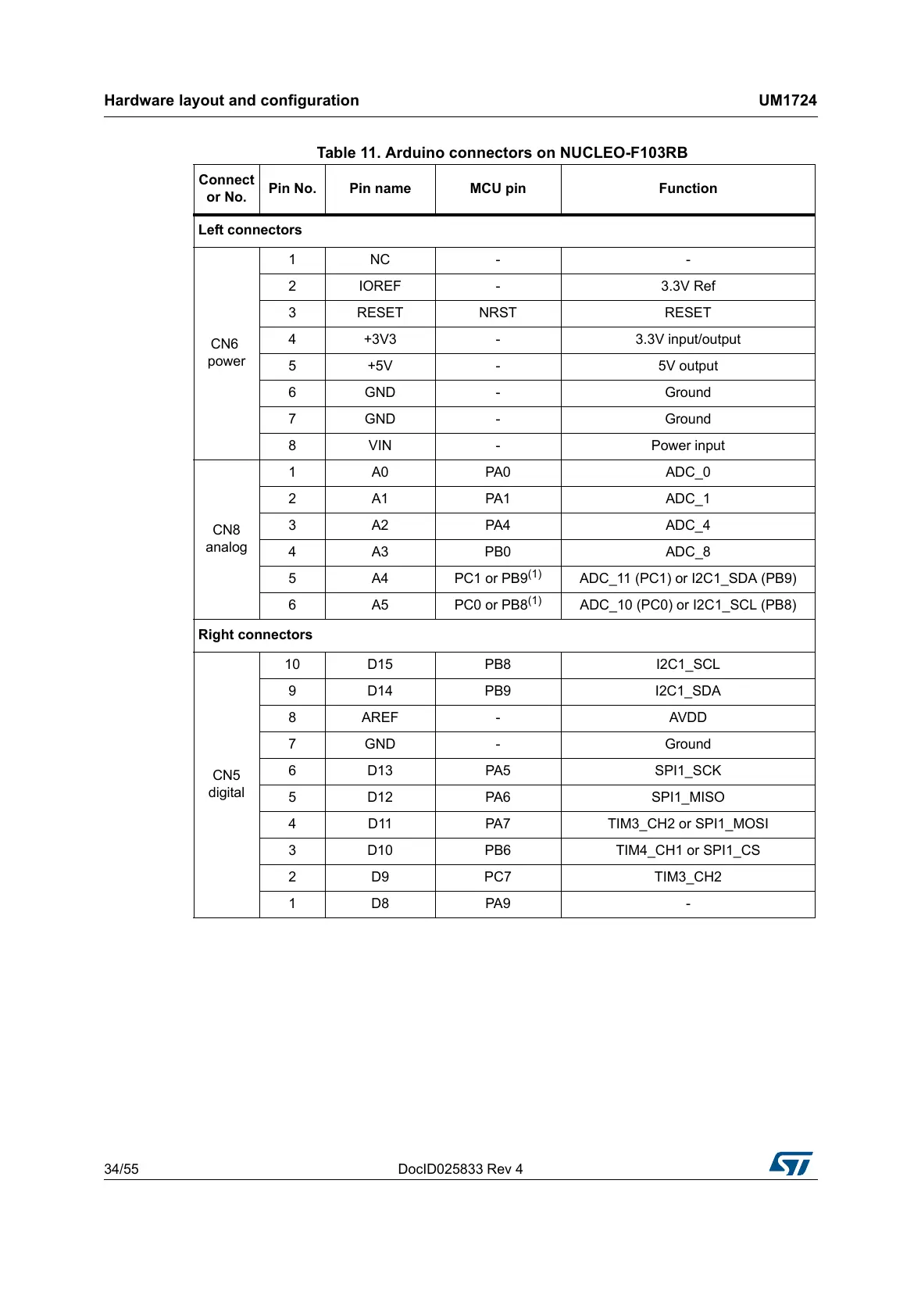

Table 11. Arduino connectors on NUCLEO-F103RB

Connect

or No.

Pin No. Pin name MCU pin Function

Left connectors

CN6

power

1NC - -

2 IOREF - 3.3V Ref

3 RESET NRST RESET

4 +3V3 - 3.3V input/output

5 +5V - 5V output

6 GND - Ground

7 GND - Ground

8 VIN - Power input

CN8

analog

1 A0 PA0 ADC_0

2 A1 PA1 ADC_1

3 A2 PA4 ADC_4

4A3 PB0 ADC_8

5 A4 PC1 or PB9

(1)

ADC_11 (PC1) or I2C1_SDA (PB9)

6 A5 PC0 or PB8

(1)

ADC_10 (PC0) or I2C1_SCL (PB8)

Right connectors

CN5

digital

10 D15 PB8 I2C1_SCL

9 D14 PB9 I2C1_SDA

8 AREF - AVDD

7 GND - Ground

6 D13 PA5 SPI1_SCK

5 D12 PA6 SPI1_MISO

4 D11 PA7 TIM3_CH2 or SPI1_MOSI

3 D10 PB6 TIM4_CH1 or SPI1_CS

2 D9 PC7 TIM3_CH2

1D8 PA9 -
