ST STM32 NUCLEO-F030R8 User Manual

DocID025833 Rev 4 53/55
UM1724 Electrical schematics
54

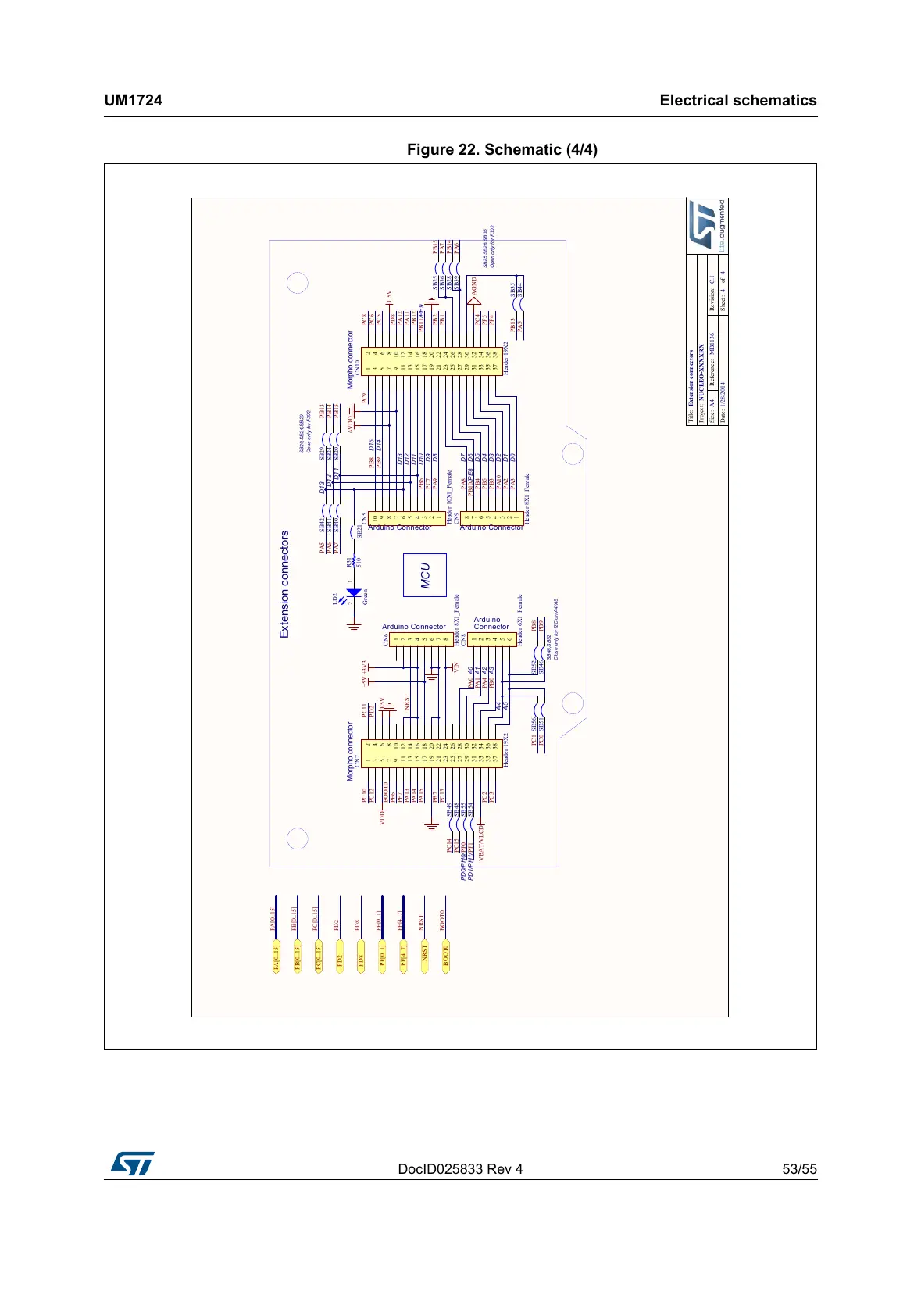

Figure 22. Schematic (4/4)
44
Extension connectors
MB1136 C.1
1/28/2014
Title: Size: Reference: Date: Sheet: of
A4
Revision:
NUCLEO-XXXXRX
Project:
Extension connectors
+3V3+5V
A0 A1 A2 A3
A4 A5
D0 D1 D2 D4 D3 D5 D6 D7 D8 D9
D10
D12
D11
D13
D14 D15
PA0
PA2
PA4
PA5 PA6 PA7
PA10 PA3
PB0
PB1
PB3 PB4
PB8 PB9
PA11 PA12
PA9
PA1
PA15 PA13 PA14
PA8
PC0 PC1
PC2 PC3
PC4 PC5 PC6
PC7 PB5 PB6
PB7
PB14 PB15PB2
PB11
PB12
PB13
PC8PC9PC10 PC11
PC12 PC13
PC14 PC15
PB10
PD8 PF4
PF6 PF7
1 2 3 4 5 6
CN8 Header 6X1_Female
1 2 3 4 5 6 7 8
CN6 Header 8X1_Female
1 2 3 4 5 6 7 8
CN9 Header 8X1_Female
1 2 3 4 5 6 7 8 9
10
CN5 Header 10X1_Female
NRST
VIN
/PE9
/PE8
PD2
PF0 PF1
PA[0..15]
PA[0..15]
PB[0..15]
PB[0..15]
PC[0..15]
PC[0..15]
PD2
PD2
PD8
PD8 PF[0..1]
PF[0..1]
AGND
NRST
NRST
SB48 SB49 SB55 SB54
AVDD
U5V
VDD
BOOT0
BOOT0
BOOT0
VBAT/VLCD
PF[4..7]
PF[4..7]
PF5
SB56 SB51
SB52 SB46
PB8 PB9
SB29SB42
SB41 SB24 SB40 SB20
D13 D12 D11
PB13 PB15 PB14
SB25 SB36 SB28 SB39
SB35 SB44PA5
PA6 PA7
MCU
Close only for I2C on A4/A5 SB46,SB52
Arduino Conn ector Arduino Conn ector
Arduino Conn ector
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38
CN7 Header 19X2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38
CN10 Header 19X2
Arduino
Connector
12
LD2 Green
R31 510
SB21
E5V
PD0/PH0/ PD1/PH1/
Close only for F302
SB20,SB24,SB29
Open only for F302 SB25,SB28,SB35
Morpho connector Morpho connector
All manuals and user guides at all-guides.com

ST STM32 NUCLEO-F030R8 Specifications

General

Microcontroller	STM32F030R8
Core	ARM Cortex-M0
Flash Memory	64 KB
SRAM	8 KB
Clock Speed	48 MHz
GPIO Pins	51
Package	LQFP64
On-board Debugger	ST-LINK/V2-1
Operating Voltage	2.0 V to 3.6 V
ADC	12-bit
Communication Interfaces	I2C, SPI, USART
Timers	6 (1x 16-bit advanced, 5x 16-bit general-purpose)
