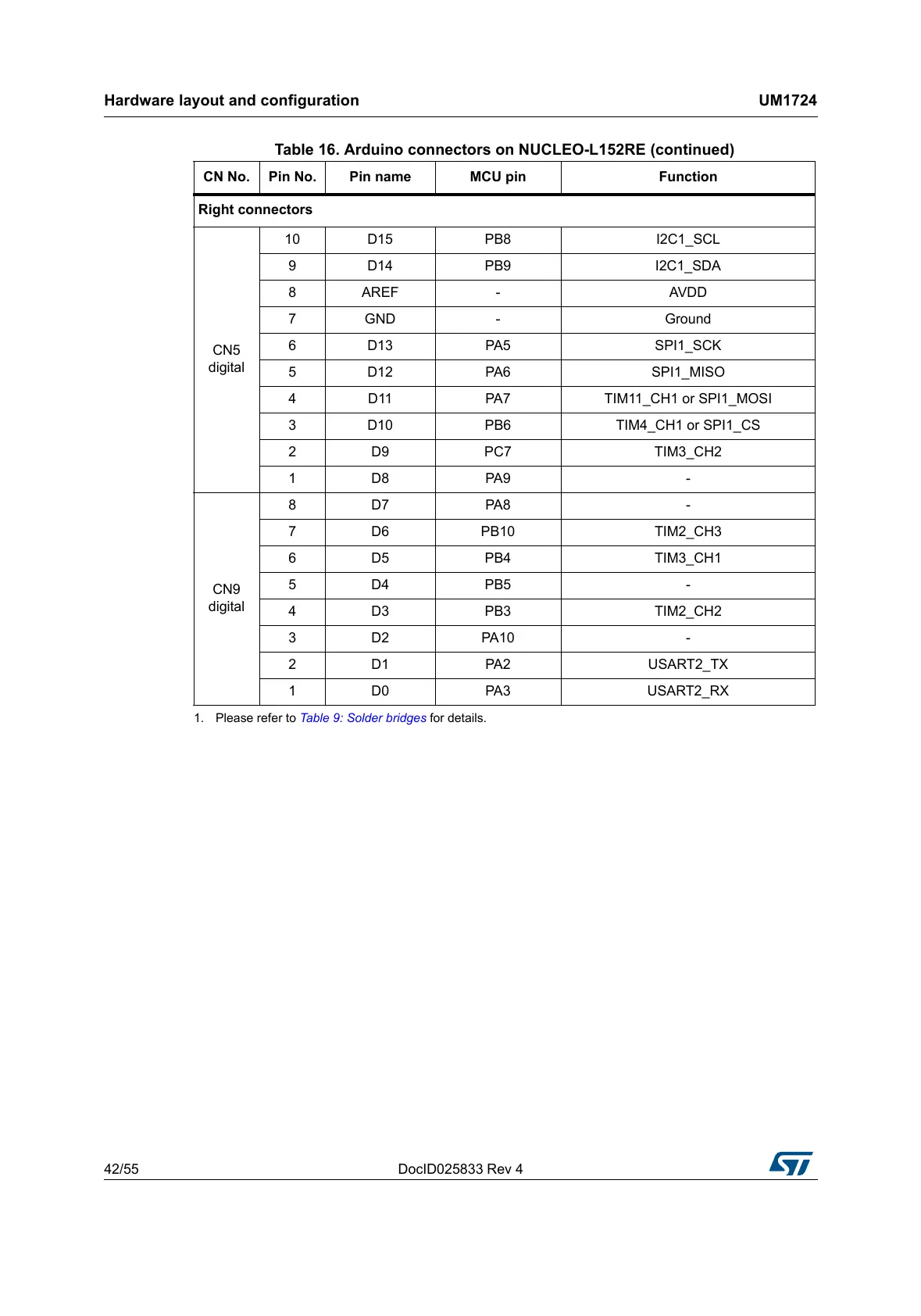

Hardware layout and configuration UM1724

42/55 DocID025833 Rev 4

Right connectors

CN5

digital

10 D15 PB8 I2C1_SCL

9 D14 PB9 I2C1_SDA

8 AREF - AVDD

7 GND - Ground

6 D13 PA5 SPI1_SCK

5 D12 PA6 SPI1_MISO

4 D11 PA7 TIM11_CH1 or SPI1_MOSI

3 D10 PB6 TIM4_CH1 or SPI1_CS

2 D9 PC7 TIM3_CH2

1D8 PA9 -

CN9

digital

8D7 PA8 -

7 D6 PB10 TIM2_CH3

6 D5 PB4 TIM3_CH1

5D4 PB5 -

4 D3 PB3 TIM2_CH2

3D2 PA10 -

2 D1 PA2 USART2_TX

1 D0 PA3 USART2_RX

1. Please refer to Table 9: Solder bridges for details.

Table 16. Arduino connectors on NUCLEO-L152RE (continued)

CN No. Pin No. Pin name MCU pin Function
