UM1724 Rev 14 19/68
UM1724 Hardware layout and configuration
67

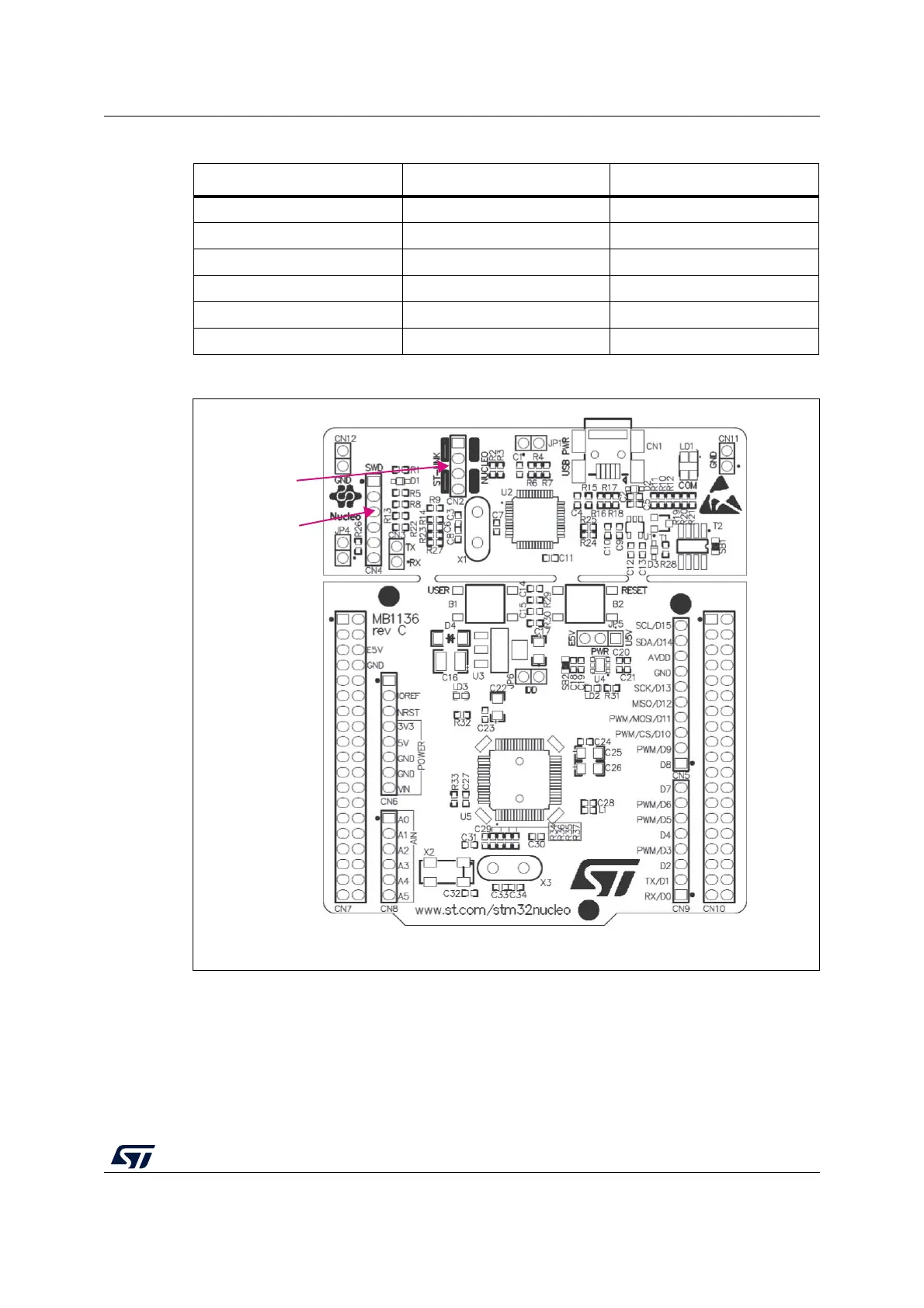

Figure 9. Using ST-LINK/V2-1 to program the STM32 on an external application
Table 5. Debug connector CN4 (SWD)
Pin CN4 Designation
1 VDD_TARGET VDD from application
2 SWCLK SWD clock
3 GND ground
4 SWDIO SWD data input/output
5 NRST RESET of target STM32
6 SWO Reserved
MS34379V2
CN2 jumpers OFF
CN4
SWD connector

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ST STM32 NUCLEO-F103RB and is the answer not in the manual?

ST STM32 NUCLEO-F103RB Specifications

General IconGeneral
MicrocontrollerSTM32F103RBT6
CoreARM Cortex-M3
Operating Voltage3.3V
Input Voltage7 - 12V
Clock Speed72 MHz
Flash Memory128 KB
RAM20 KB
Analog Input Pins16
DAC Channels2
On-board DebuggerST-LINK/V2-1
Board Size69 mm x 53 mm
Timers4
Communication InterfacesUSART, SPI, I2C
ConnectorsArduino, Morpho
Analog Inputs10
