6 Hardware layout and configuration
The STM32 Nucleo board is designed around the STM32 microcontrollers in a 64-pin LQFP
package.
Figure 2 shows the connections between the STM32 and its peripherals (ST-LINK/V2-1,
push-button, LED, ARDUINO
®
connectors, and ST morpho connector).
Figure 3 and Figure 4 show the location of these features on the STM32 Nucleo board.
Figure 5 shows the mechanical dimension of the STM32 Nucleo board.

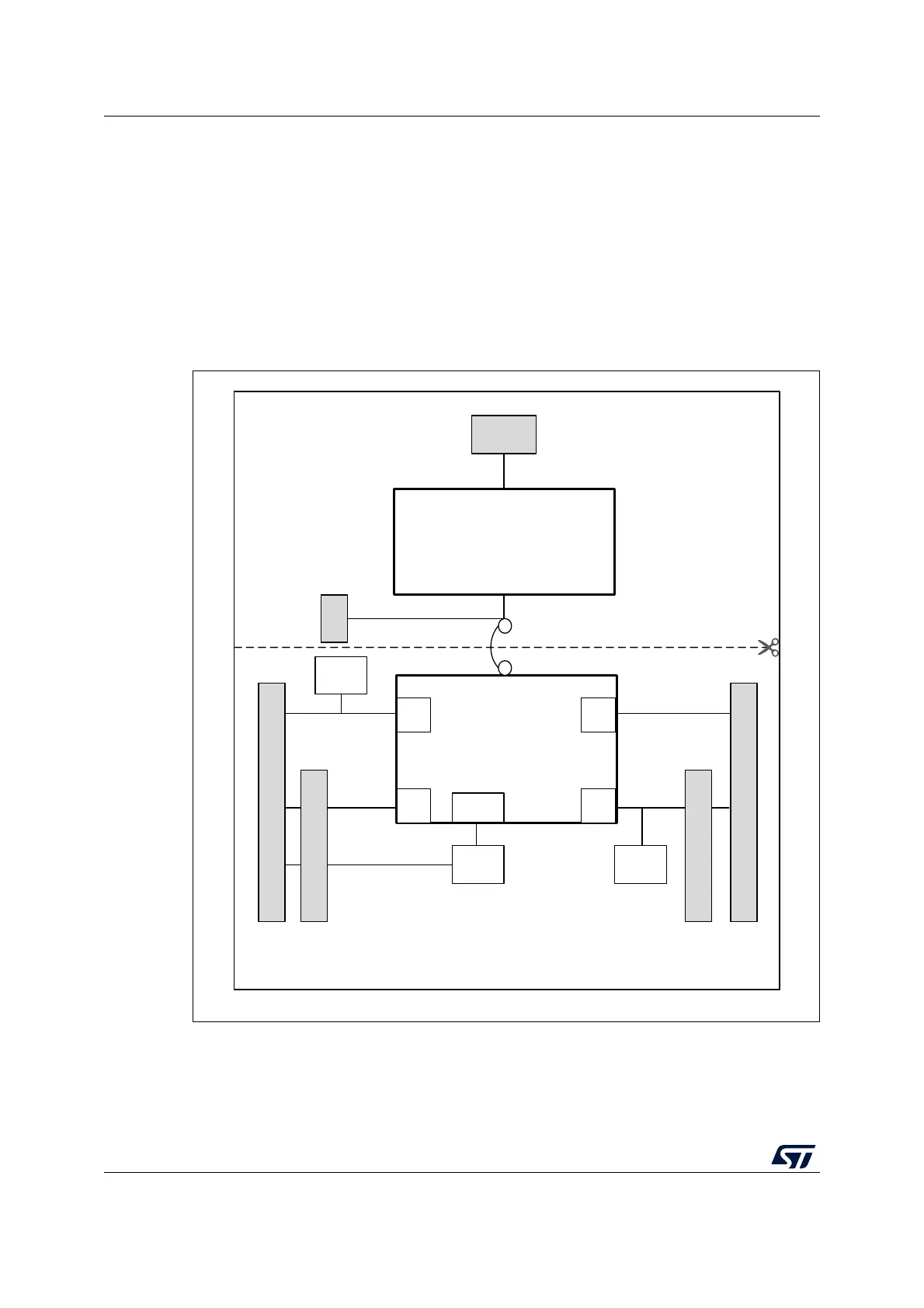

Figure 2. Hardware block diagram
RESET
Mini
USB
IO
IO IO
IO
ST-LINK part
Embedded
ST-LINK/V2-1
STM32
Microcontroller
B1
USER
B2
RESET
LED
LD4
MCU part
SWD
ST morpho extension header
ARDUINO
®
connector
ARDUINO
®
connector
ST morpho extension header
MS34374V2

ST STM32 NUCLEO-F103RB Specifications

General

Microcontroller	STM32F103RBT6
Core	ARM Cortex-M3
Operating Voltage	3.3V
Input Voltage	7 - 12V
Clock Speed	72 MHz
Flash Memory	128 KB
RAM	20 KB
Analog Input Pins	16
DAC Channels	2
On-board Debugger	ST-LINK/V2-1
Board Size	69 mm x 53 mm
Timers	4
Communication Interfaces	USART, SPI, I2C
Connectors	Arduino, Morpho
Analog Inputs	10
