7 Board connectors
Several connectors are implemented on the STM32G0 Nucleo-32 board.
7.1
Arduino
™
Nano V3 connectors CN3 and CN4
The Arduino
™
connectors CN3 and CN4 are male connectors compatible with the Arduino
™
Nano V3 standard.
Most shields designed for Arduino
™
can fit with the STM32G0 Nucleo-32 board.

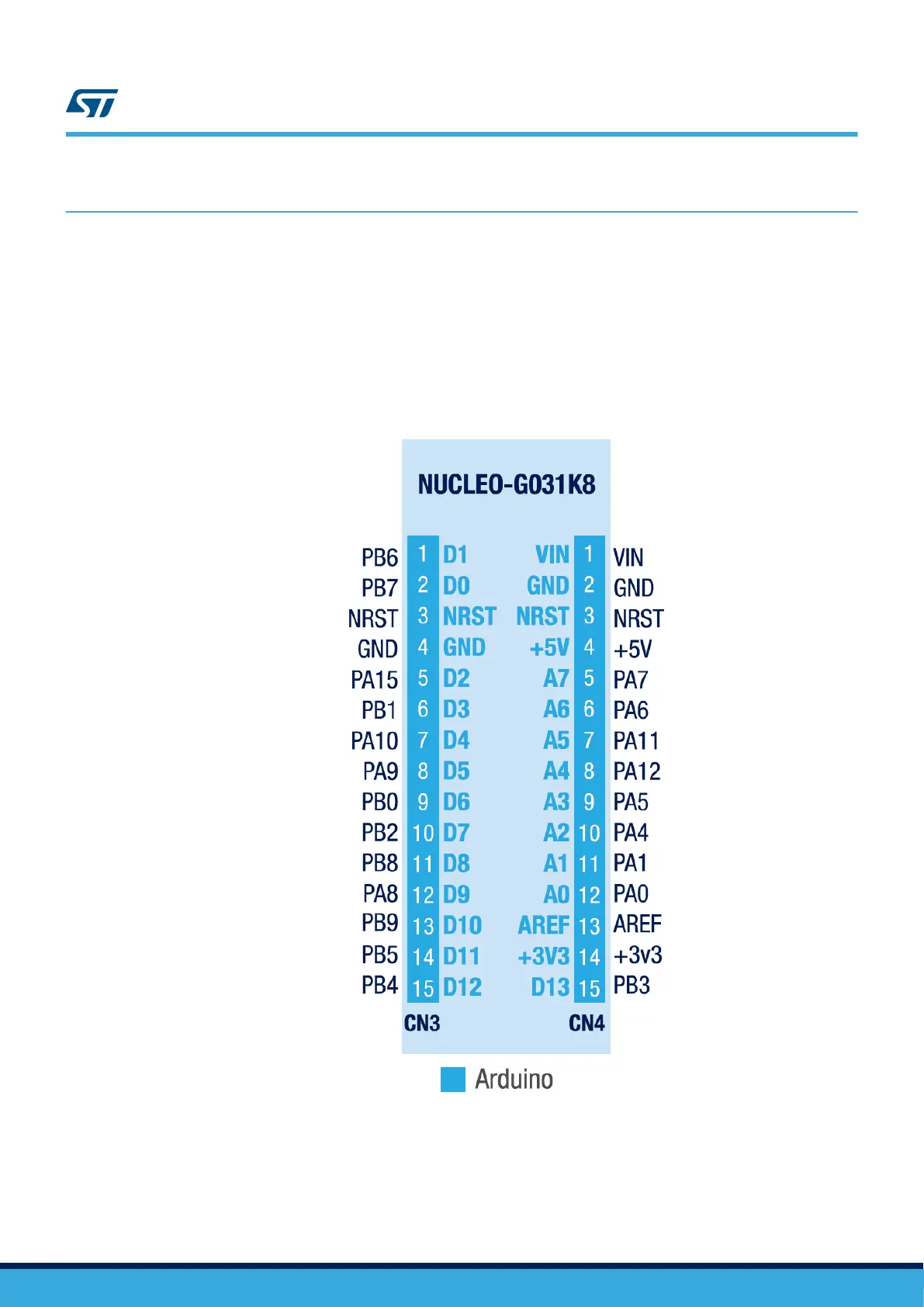

The related pinout for Arduino™ connectors is shown in Figure 8 and listed in Table 9.
Figure 8. Arduino
™
connectors pinout
UM2591
Board connectors
UM2591 - Rev 1
page 16/26
