ST X-NUCLEO-BNRG2A1

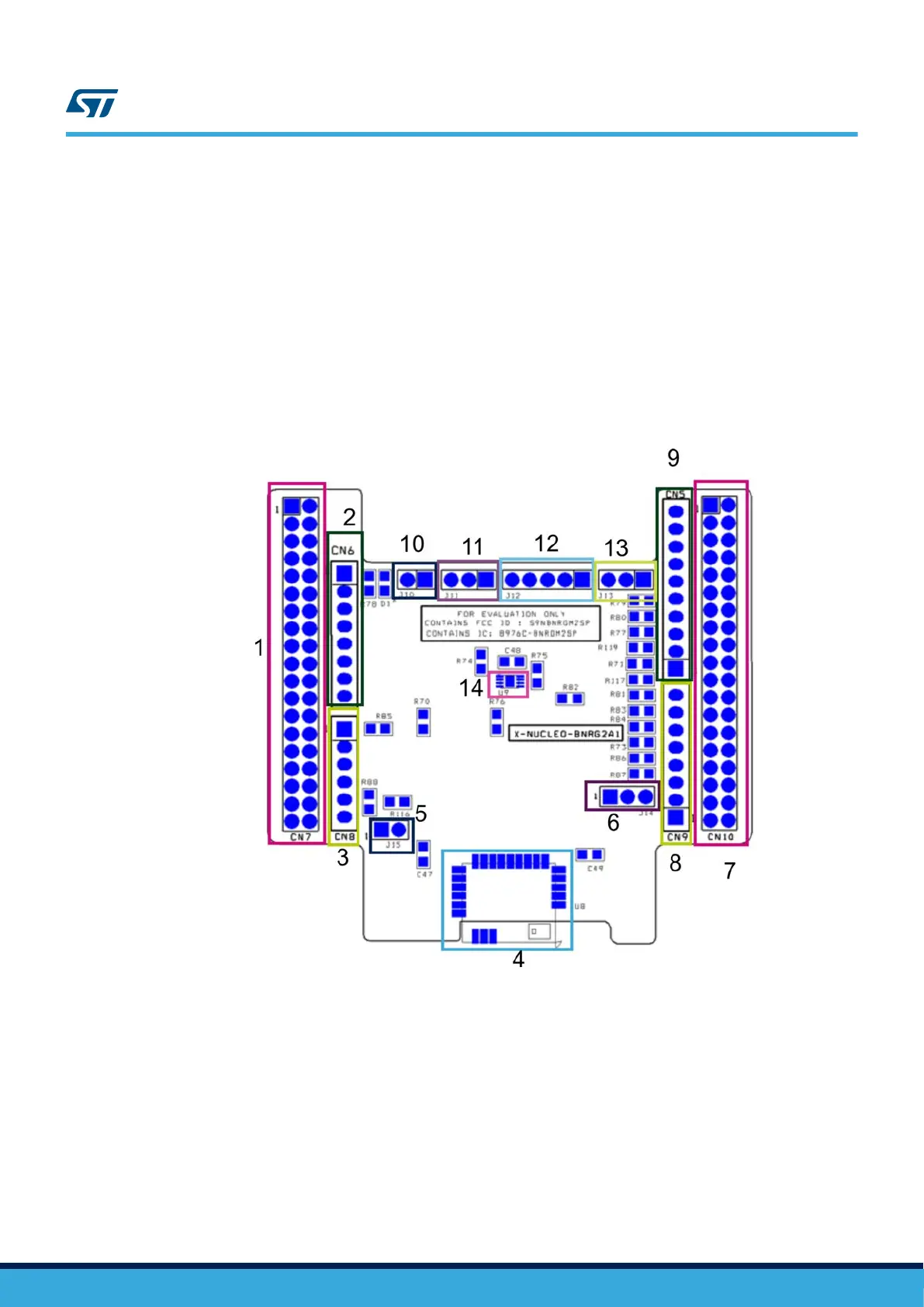

Figure 3. X-NUCLEO-BNRG2A1 on-board device placement
1.
ST morpho connector (not mounted by default)
2. Arduino UNO R3 connector
3. Arduino UNO R3 connector
4. BlueNRG-M2SP
5. J15 - boot pin jumper
6. J14 - SPI_CLK select jumper
7. ST morpho connector (not mounted by default)
8. Arduino UNO R3 connector
9. Arduino UNO R3 connector
10. J10 - power jumper
11. J11 - user application jumper
12. J12 - SWD jumper
13. J11 - user application jumper
UM2667
X-NUCLEO-BNRG2A1 component placement details
UM2667 - Rev 1
page 8/22
