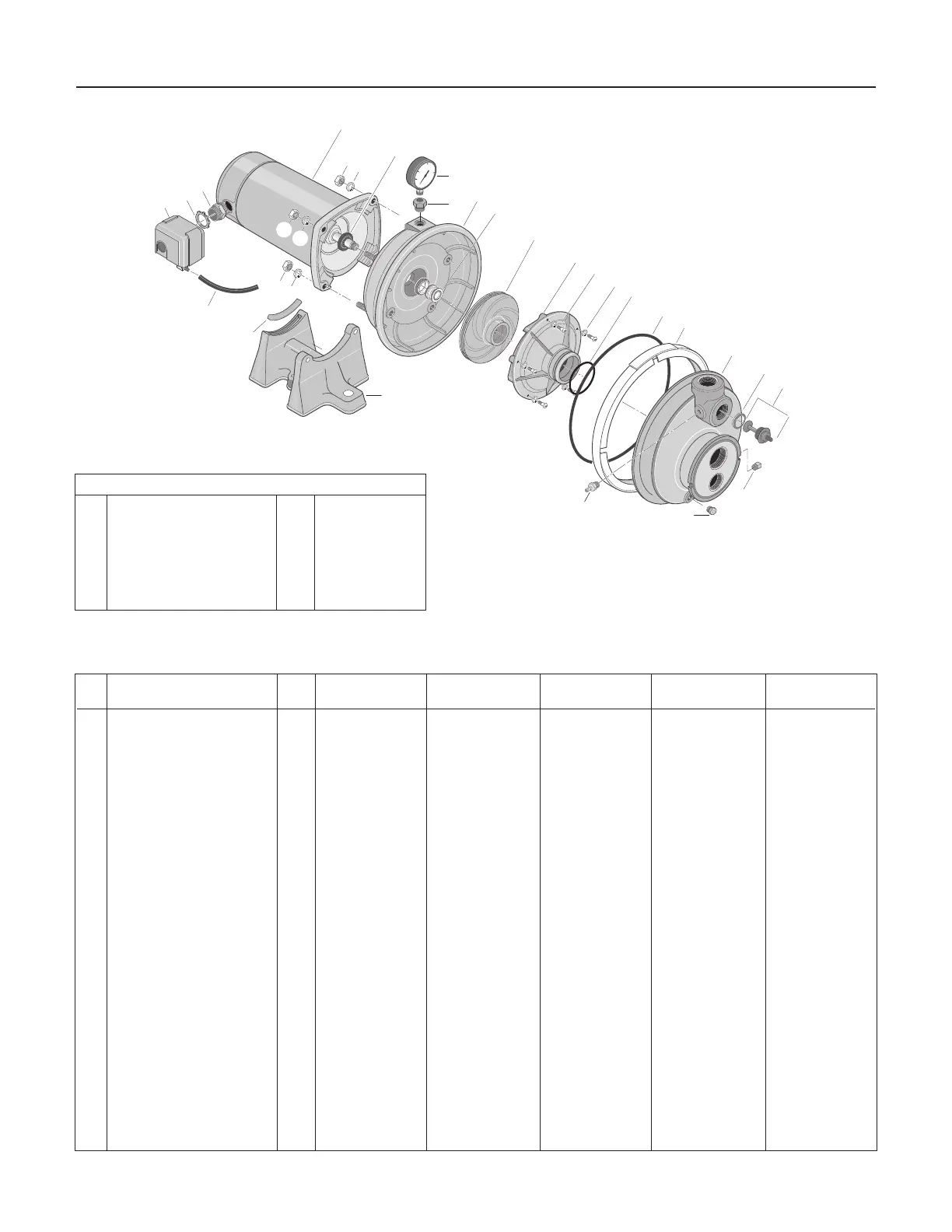

STA-RITE ALE - Page 11

Repair Parts 11
L
2
7
6
-
3
5
P
L
2
7
6
-
3
5
P
2344 0396 rev.
1
2
3
18
19
21
17
20
21
7
8
9
10
16A
16
4
6
5
6A
6B
12
11
13
14
15
22
22
22
21
20
40
60
80
100
3A
3B
Key Part PLB-2L PLC-2L PLD-2L PLE-2L PLF-2L
No. Description Qty. 1/3 HP 1/2 HP 3/4 HP 1 HP 1-1/2 HP
1 Motor 1 A100BHL A100CLL A100DLL A100ELL A100FLL
2 Water Slinger 1 17351-0009 17351-0009 17351-0009 17351-0009 17351-0009
3 Seal Plate 1 L176-47P L176-47P L176-47P L176-47P L176-47P
3A Pressure Gauge 1 U239-3 U239-3 U239-3 U239-3 U239-3
3B Reducer, 1/2x1/8 NPT 1 U78-107PT U78-107PT U78-107PT U78-107PT U78-107PT
4 Shaft Seal 1 U109-6A U109-6A U109-6A U109-6A U109-6A
5 Impeller 1 J105-40PE J105-40PE J105-42PT J105-8PAN J105-22PA
6 Diffuser 1 J1-39P J1-39P J1-39P J1-40P J1-40PA
6A Diffuser Screws 5 U30-542SS U30-542SS U30-542SS U30-542SS U30-542SS
6B Washer, #8 5 U43-21SS U43-21SS U43-21SS U43-21SS U43-21SS
7 Diffuser O-Ring 1 U9-199 U9-199 U9-199 U9-199 L21-1
8
O-Ring, V-Clamp Assembly 1 U9-399 U9-399 U9-399 U9-399 U9-399
9 “V” Clamp Assembly 1 C19-54SS C19-54SS C19-54SS C19-54SS –
10 Pump Body 1 L76-37P L76-37P L76-37P L76-37P L76-37P
11 Gasket 1 L20-40 L20-40 L20-40 L20-40 L20-40
12 Regulator 1 J198-20 J198-20 J198-20 J198-20 J198-20
13 Pipe Plug 1 WC78-41T WC78-41T WC78-41T WC78-41T WC78-41T
14 Drain Plug 1 U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV
15 Barbed Fitting – Straight 1 U111-211T U111-211T U111-211T U111-211T U111-211T
16 Base 1 C4-42P C4-42P C4-42P C4-42P C4-42P
16A Motor Pad 1 C35-11 C35-11 C35-11 C35-11 C35-11
17 Switch Tube 1 U37-671P U37-671P U37-671P U37-671P U37-677P
• Barbed Fitting – Elbow 1 U111-212T – – – –
18 Pressure Switch 1 U217-1216 U217-1202 U217-1202 U217-1202 U217-1202
19 Lock Nut 1 U36-112ZP U36-112ZP U36-112ZP U36-112ZP U36-112ZP
20 Connector 1 L43-5C L43-5C L43-5C L43-5C L43-5C
21 Hex Nut, 5/16 - 18 4 U36-37ZP U36-37ZP U36-37ZP U36-37ZP U30-75ZP
22 Washer, 5/16 2 U43-61ZP U43-61ZP U43-61ZP U43-61ZP U43-61ZP
Repair Parts – Corrosion Resistant Jet Pumps
SERVICE KITS:
Seal and Gasket Kit 1 PP1500
Overhaul Kit: 1/3 and 1/2 HP 1 PP1511
Overhaul Kit: 3/4HP 1 PP1512
Overhaul Kit: 1 HP 1 PP1513
Overhaul Kit: 1-1/2 HP 1 PP1514
Pressure Gauge Ki t 1 PP2102
Pressure Switch Kit 1 PP2151
• Not illustrated.
