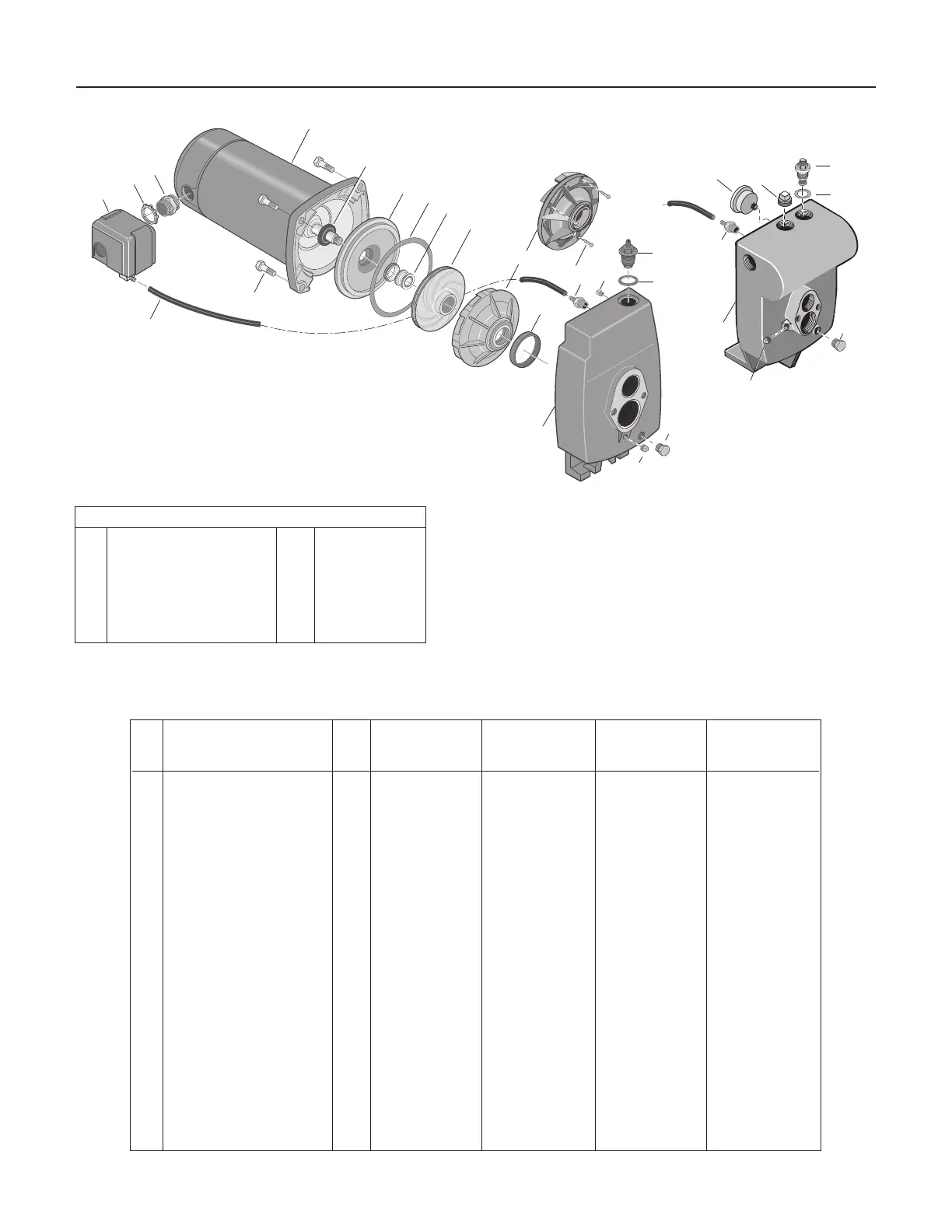

STA-RITE ALE - Repair Parts

Repair Parts 10
1
2
3
4
5
6
8
14
13
15
10
10
14
11
21
17
18
19
20
2341 0396 rev.
9
12
22
23
11
13
12
Diffuser
(FSL/FL
Series)
Diffuser
(AL Series)
7
AL
Series
FSL/FL
Series
16
16
FSLCH-L FSLDH-L
Key Part FLC-L FLD-L ALE-30L ALF-30L
No. Description Qty. 1/2 HP 3/4 HP 1 HP 1-1/2 HP
1 Motor 1 A100CLL A100DLL A100ELL A100FLL
2 Water Slinger 1 17351-0009 17351-0009 17351-0009 17351-0009
3 Seal Plate 1 N3-1043P N3-1043P L3-10 L3-10
4 Seal Plate Gasket 1 N20-35 N20-35 C20-21 C20-21
5 Shaft Seal 1 U109-6A U109-6A U109-6A U109-6A
6 Impeller 1 J105-40P J105-86P J105-85P J105-22PA
7 Diffuser 1 L1-25P L1-48P L1-47P L1-23P
8 Diffuser, Screws 3 – – U30-489SS U30-489SS
9 Diffuser Ring 1 L21-1 L21-1 L21-1 L21-1
10 Barbed Fitting – Straight 1 U111-211T U111-211T U111-211T U111-211T
11 Pipe Plug, 1/8” Sq. Hd 1 U78-56ZPS U78-56ZPS U78-56ZPS U78-56ZPS
12 Control Valve Assembly 1 01322 01322 L262-5P L262-5P
13 Control Valve Gasket 1 L20-39 L20-39 L20-40 L20-40
14 Drain Plug U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV
15 Priming Plug 1 U78-959T U78-959T – –
16 Pump Body 1 L76-44 L76-44 L76-20 L76-20
17 Switch Tube 1 U37-672P U37-672P U37-672P U37-677P
• Barbed Fitting – Elbow 1 – – U111-212T U111-212T
18 Pressure Switch 1 U217-1202 U217-1202 U217-1216• U217-1217•
19 Lock Nut 1 U36-112ZP U36-112ZP U36-112ZP U36-112ZP
20 Connector 1 L43-5C L43-5C L43-5C L43-5C
21 3/8-16x1-1/2” Capscrews 4 U30-75ZP U30-75ZP U30-75ZP U30-75ZP
22 Pressure Gauge – – U239-3 U239-3
23 Pipe Plug, 1/2” Sq. Hd. 1 _ _ U78-61GPS U78-61GPS
Repair Parts – Cast Iron Jet Pumps
SERVICE KITS:
Seal and Gasket Kit 1 PP1500
Overhaul Kit: 1/3 and 1/2 HP 1 PP1560
Overhaul Kit: 3/4HP 1 PP1565
Overhaul Kit: 1 HP 1 PP1566
Overhaul Kit: 1-1/2 HP 1 PP1564
Pressure Gauge Ki t 1 PP2102
Pressure Switch Kit 1 PP2151
• Not illustrated.
