8.8 Sound pressure level

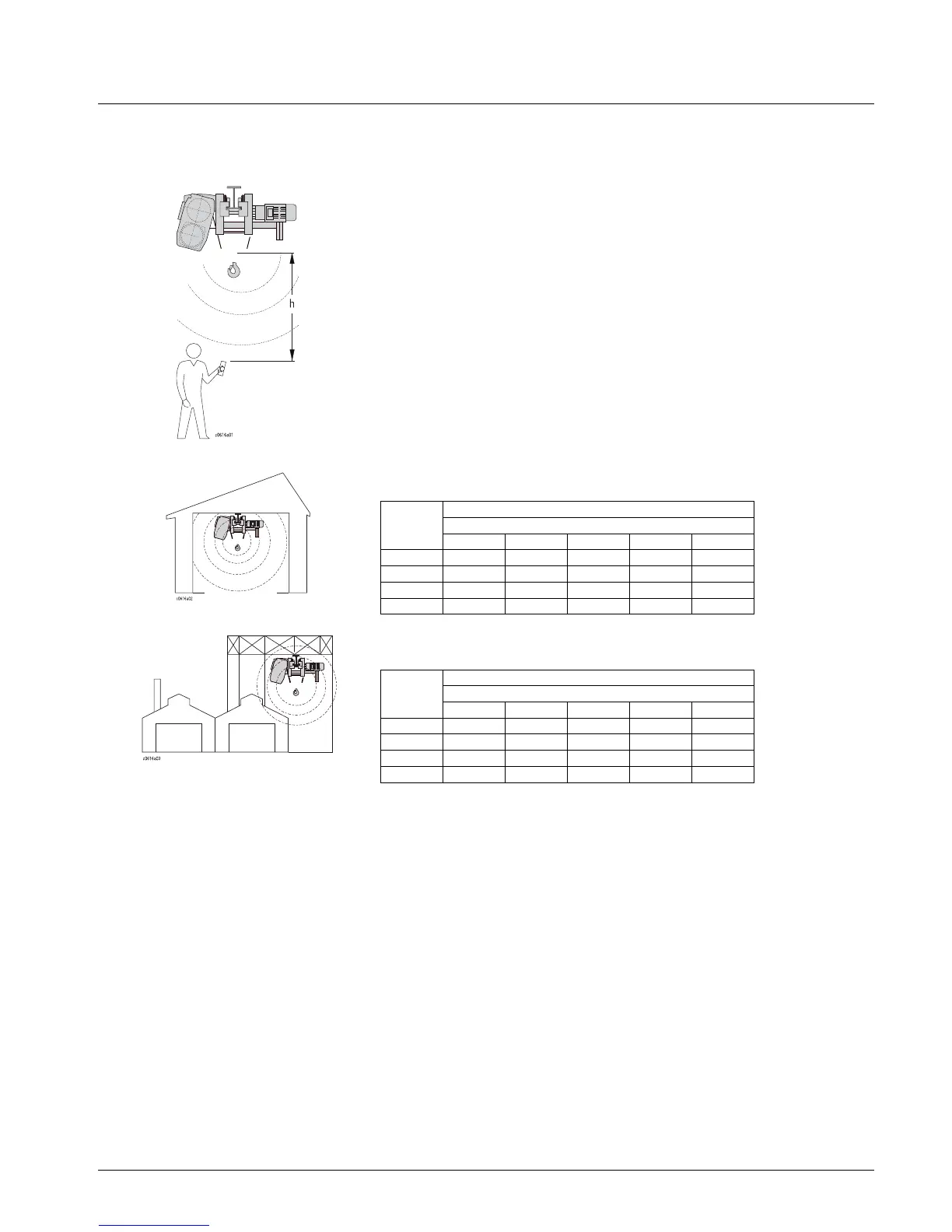

The sound pressure level was measured at a distance of 1 m from the wire rope
hoist. The mean sound pressure level is calculated for one operating cycle (50% with
nominal load, 50% without load).
Instead of stating an emission value based on a workplace, the values from table 1
and 2 at measuring distance "h" can be used.
1
2
8.9 Circuit diagrams
See separate enclosure
Type
[db (A)] + / - 3
h [m]
1 m 2 m 4 m 8 m 16 m
SH 30 76 73 70 67 64
SH 40 76 73 70 67 64
SH 50 78 75 72 69 66
SH 60 78 75 72 69 66
Type
[db (A)] + / - 3
h [m]
1 m 2 m 4 m 8 m 16 m
SH 30 76 70 64 58 52
SH 40 76 70 64 58 52
SH 50 78 72 66 60 50
SH 60 78 72 66 60 50
